The APG Cash Drawer® Vasario Series offers a reliable and versatile solution for retail environments, perfectly balancing efficiency and affordability. Designed for electronic or manual operation, these cash drawers are engineered to withstand over one million operations, making them a durable option for businesses of any size. Available in various models and configurations, the Vasario Series provides customizable storage options and a choice between appealing color finishes, ensuring a seamless fit into your retail environment.
Key Features
Various Till Configurations: Customize to meet your business needs.
Durability: Tested to last over one million operations.
Value Solution: Ideal for lower traffic retail environments.
Multiple Interfaces: Options include USB, Serial, and MultiPRO.
Available in Black and Beige: Aesthetic finishes with painted or stainless steel fronts.
Two-Year Limited Warranty: Peace of mind with our full warranty statement.
Specifications
Models:
1915 Model: 18.8 x 15.2 x 4.3 inches, Shipping weight: 22 lbs
1618 Model: 16.2 x 18.3 x 4.3 inches, Shipping weight: 21 lbs
1616 Model: 16.2 x 16.3 x 4.3 inches, Shipping weight: 19 lbs
1416 Model (Electronic): 13.8 x 16.3 x 4.0 inches, Shipping weight: 16 lbs
1616 Model (Manual): 16.2 x 16.3 x 4.3 inches, Shipping weight: 19 lbs
1416 Model (Manual): 13.8 x 16.3 x 4.0 inches, Shipping weight: 16 lbs
Operating Environment:
Storage Temperature: -30°C to +50°C (-22°F to +122°F)
Operating Temperature: 0°C to +40°C (+32°F to +104°F)
Relative Humidity: 10% to 95% (non-condensing)
Warranty: Two (2) year limited warranty.

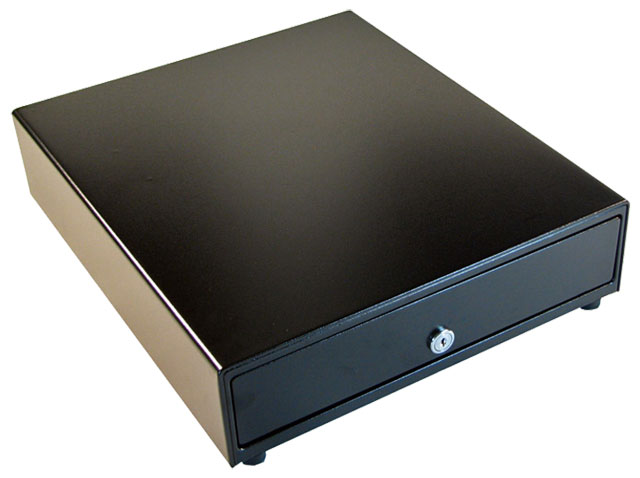

APG VP101-BL1616-B11 Cash Drawer Overview
The Ideal Solution For Applications That Can Be Addressed With A Standard Duty Cash Drawer
The apg Vasario Series is the cost effective choice that doesn't sacrifice quality or dependability.
What barcode types can the Datalogic PBT9600 read?
The PBT9600 is a versatile 1D and 2D barcode scanner that autodiscriminates all standard 1D codes including GS1 DataBar linear codes, as well as 2D codes such as QR Code, Data Matrix, Aztec Code, and PDF417. Its advanced color sensor technology improves scanning precision even in challenging lighting conditions, making it reliable across diverse barcode formats and environments.
Is the Datalogic PBT9600 waterproof and rugged enough for warehouse use?
Yes, the PBT9600 features IP67 and IP65 sealing ratings, providing robust protection against water, dust, and drops in demanding warehouse and logistics environments. Its ultra-rugged construction is specifically engineered to thrive in the most challenging industrial settings while maintaining consistent performance.
How does the wireless charging system work on the PBT9600?
The PBT9600 includes Datalogic's innovative Wireless Charging System with inductive charging capabilities, eliminating common battery contact issues and reducing maintenance costs. The removable battery design allows for quick replacement when needed, ensuring minimal downtime during peak operations.
What is the Bluetooth range and connectivity for the PBT9600?
The PBT9600 features Bluetooth 5.0 technology with a Class 1 radio range exceeding 90 meters in open air, supporting both HID (Human Interface Device) and SPP (Serial Port Profile) protocols. This wireless capability ensures seamless communication with your host system while maintaining data encryption and scanner authentication for security.
How long does the battery last on a single charge?
The PBT9600 delivers continuous reading performance of 30,000+ scans per charge with its 2150 mAh Lithium-Ion battery. Charging time is approximately 4 hours with external power or 10 hours when powered through the host connection, allowing you to plan charging schedules around your workflow.
What makes the PBT9600 better for ergonomics and operator comfort?
The PBT9600's ergonomic design and lightweight construction significantly reduce operator fatigue during extended scanning sessions, while its Bluetooth wireless capabilities provide hands-free mobility throughout your warehouse or logistics operation. The combination of cordless operation and document capture technology enables efficient scanning of both barcodes and documents simultaneously, improving overall productivity.
The APG VP101-BL1616-B11 Cash Drawer is also known as
APG-VP101-BL1616-B11
or VP101BL1616B11.
Full specifications (PDF)
