The APG Cash Drawer® Vasario Series offers a reliable and versatile solution for retail environments, perfectly balancing efficiency and affordability. Designed for electronic or manual operation, these cash drawers are engineered to withstand over one million operations, making them a durable option for businesses of any size. Available in various models and configurations, the Vasario Series provides customizable storage options and a choice between appealing color finishes, ensuring a seamless fit into your retail environment.
Key Features
Various Till Configurations: Customize to meet your business needs.
Durability: Tested to last over one million operations.
Value Solution: Ideal for lower traffic retail environments.
Multiple Interfaces: Options include USB, Serial, and MultiPRO.
Available in Black and Beige: Aesthetic finishes with painted or stainless steel fronts.
Two-Year Limited Warranty: Peace of mind with our full warranty statement.
Specifications
Models:
1915 Model: 18.8 x 15.2 x 4.3 inches, Shipping weight: 22 lbs
1618 Model: 16.2 x 18.3 x 4.3 inches, Shipping weight: 21 lbs
1616 Model: 16.2 x 16.3 x 4.3 inches, Shipping weight: 19 lbs
1416 Model (Electronic): 13.8 x 16.3 x 4.0 inches, Shipping weight: 16 lbs
1616 Model (Manual): 16.2 x 16.3 x 4.3 inches, Shipping weight: 19 lbs
1416 Model (Manual): 13.8 x 16.3 x 4.0 inches, Shipping weight: 16 lbs
Operating Environment:
Storage Temperature: -30°C to +50°C (-22°F to +122°F)
Operating Temperature: 0°C to +40°C (+32°F to +104°F)
Relative Humidity: 10% to 95% (non-condensing)
Warranty: Two (2) year limited warranty.

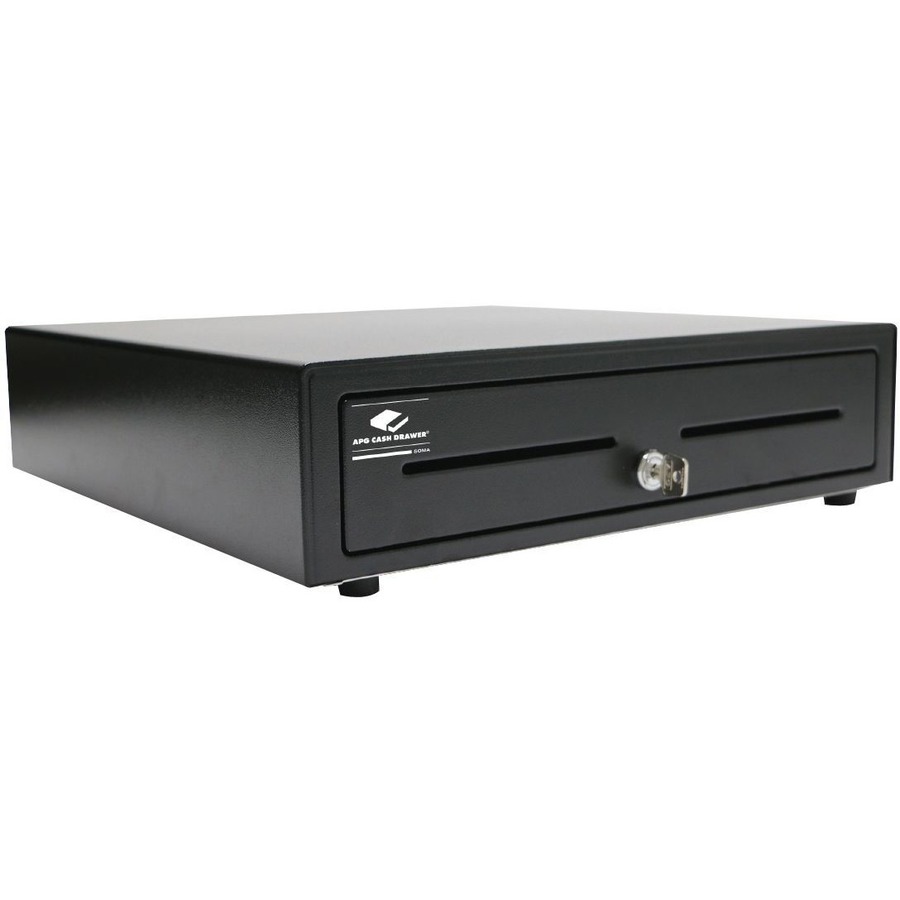

APG VB320-1-BL1616-B10 Cash Drawer Overview
The apg VB320-1-BL1616-B10 Vasario Series standard-duty painted-front cash drawer is black, has a MultiPRO 320 interface, and is suitable at a low- to medium-volume point of sale for temporarily storing money. The MultiPRO 320 interface contains an 8P8C (RJ45) modular jack and can be used to connect the cash drawer to a 24V receipt printer or point-of-sale terminal for creating an integrated point-of-sale system (cable, printer, and terminal sold separately). The cash drawer is made of steel for strength and durability. The black powder-coated finish resists wear and corrosion. Roller bearings allow the drawer to slide open and shut. The plastic till has five bill compartments and eight coin compartments with adjustable widths for organizing money by denomination. Hold-downs keep bills securely in place and flip up for inserting or retrieving bills. A latch releases the drawer when opened and keeps it securely shut when closed. The four-function lock on the drawer has functions to lock the drawer closed, lock open, open electronically using a connected host device, or open manually. Two slots allow checks, credit card receipts, or other transaction media to be inserted into the storage area under the till without opening the cash drawer. The cash drawer measures 16.2 x 16.3 x 4.3 inches (W x D x H). (W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back; H is height, the vertical distance from lowest to highest point.) It measures 3.8" high without feet. It can be placed on a counter and can support a monitor, receipt printer, or other point-of-sale device (sold separately). Mounting brackets (sold separately) allow the cash drawer to be mounted under a counter to save space. The cash drawer is tested to withstand at least 1 million operations. It has a storage temperature range from -22 to +122 degrees F and an operating temperature range from +32 to +104 degrees F.
apg manufactures cash drawers and other point-of-sale equipment. The company, founded in 1978, is headquartered in Minneapolis, MN.
The APG VB320-1-BL1616-B10 Cash Drawer is also known as
APG-VB3201BL1616B10
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
