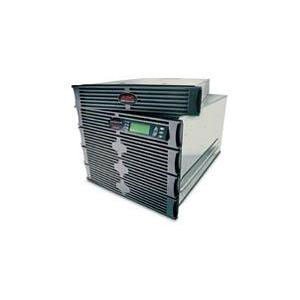

APC SYH6K6RMT-TF3 Products
Part Number:
SYH6K6RMT-TF3
Request a Bulk Pricing Quote
Chat with a Product Expert
APC Parts Accessory Model Overview
Products and parts from APC.
APC SYH6K6RMT-TF3 Products Overview
Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
Technical Information
Plug/Connector Type:
Hard Wire 3-wire NEMA L6-30P
Receptacle Type:
NEMA L6-30P 30A
Receptacle Detail:
2 x NEMA L6-20R 4 x NEMA L5-20R
Number of Battery & Surge Outlets:
6
Dataline Protection:
RJ-45
Power Description
Load Capacity (VA):
6000 VA
Management
Network Management:
SNMP Manageable
Alarm:
On Battery Low Battery Configurable Delay
Bypass Switch:
Automatic & Manual
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
12.30 Minute
Backup/Run Time (Half Load):
29.10 Minute
Typical Battery Recharge Time:
3 Hour
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Thermal Dissipation:
741.18 W
Physical Characteristics
Form Factor:
Rack-mountable
Mounting Preference:
Lower
Weight (Approximate):
389.82 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
Symmetra RM 6kVA UPS CD with software Rack mounting brackets Rack mounting support rails User manual
Additional Information:
Output Voltage Distortion: less than 5% at full load Crest Factor: up to 5 : 1 Pre-Installed Batteries: 3 Replacement battery cartridge Quantity: 3
Certifications & Standards:
CSA
Optimized Energy Efficiency:
Yes
Product Take Back Program:
No
RoHS Exemption Information:
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH6K6RMT-TF3_ROHS_DECLARATION&p_FileName=SYH6K6RMT-TF3KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036281&lang=en-us
EU RoHS Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036281&lang=en-us
Environmental Profile Availability:
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
End of Life Manual Availability:
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
California Proposition 65 Warning:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Additional Warranty Information:
2 years repair or replace, optional on-site warranties available, optional extended warranties available
Item Numbers
GTIN:
0000004709510, 0731304740292
UPC:
000004709510, 731304740292
EAN:
0000004709510, 0731304740292
UNSPSC:
39121011
