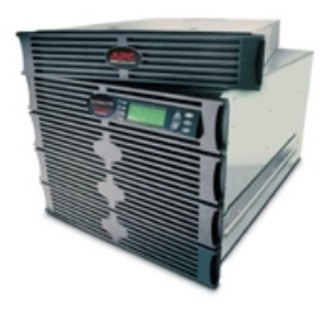

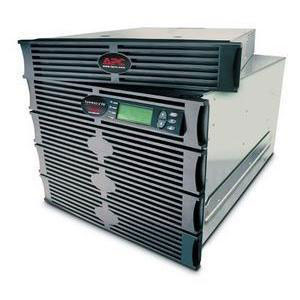

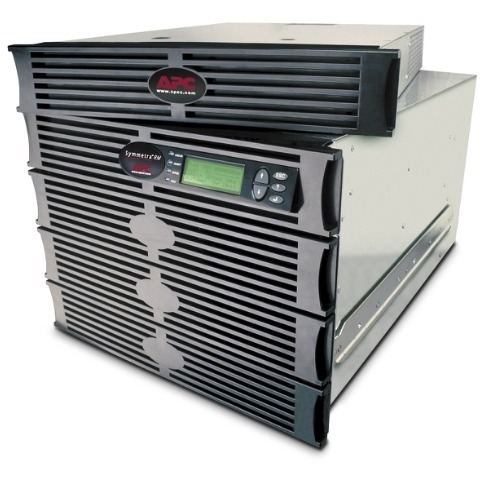

APC SYH4K6RMT-P1 Power Device

APC Accessories - Symmetra (One SYHF6KT, Two SYPM2KU, Two SYBT2)
$6,170.10
Temporarily out of stock; available to order
FREE SHIPPING OVER $49
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

Technical Information

  • Receptacles:
    • 12 x NEMA 5-20R
    • 2 x NEMA L6-20R
  • Plug/Connector Type:
    • NEMA L6-30P (30A Twist-Lock)
    • Hard Wire 3-wire 2PH + G
  • Dataline Protection: RJ-45 10/100Base-TX

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: RM
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Symmetra RM 4kVA UPS
  • Product Line: Symmetra

Physical Characteristics

  • Height: 18"
  • Width: 19"
  • Depth: 29"
  • Form Factor: 10U Rack-mountable
  • Weight (Approximate): 324 lb
  • Color: Black
  • Power Cord/Cable: 6 ft

Interfaces/Ports

  • Modular Slots: 1 x SmartSlot

Other

  • Package Contents:
    • Symmetra UPS
    • Software CD
    • Rack Mounting Brackets
    • Rack Mounting support rails
    • User Manual
    • Symmetra UPS
    • Software CD
    • Rack Mounting Brackets
    • Rack Mounting support rails
    • User Manual
  • Certifications & Standards:
    • CSA
    • FCC Part 15 Class A
    • UL 1778
  • Additional Information:
    • Automatic Self Test
    • Battery modules connected in parallel
    • Input Power Factor Correction
    • LCD AlphaNumeric Display
    • N+1 Redundancy
    • Scalable Power Capacity
    • Scalable Run Time
    • Software
    • Wide input voltage range

Environmental Conditions

  • Altitude:
    • 0 ft to 10000 ft Operating
    • 0 ft to 50000 ft Storage
  • Cooling Type: System fan
  • Humidity:
    • 0 to 95% Relative Humidity Operating
    • 0 to 95% Non-condensing Relative Humidity Storage
  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • 5°F (-15°C) to 113°F (45°C) Storage
  • Thermal Dissipation: 1686 BTU/h

Power Description

  • Input Voltage Range:
    • 208 V AC Nominal
    • 155 V AC to 276 V AC Mains Operation
  • Load Capacity: 4 kVA/2.80 kW
  • Input Voltage: 220 V AC
  • Output Voltage: 120 V AC Nominal
  • Circuit Breaker: Input -
  • Frequency: 60 Hz
  • Waveform Type: Sine Wave

Management

  • Network Management: SNMP Manageable
  • Battery Management: Intelligent Battery Management
  • Alarm:
    • Low Battery
    • On Battery
  • Bypass Switch:
    • Automatic
    • Manual
  • Emergency Power OFF: Yes

Battery Information

  • Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.20 Hour 2.80 kW Full Load
    • 0.48 Hour 1.40 kW Half Load
  • Battery Recharge Time: <4 Hour Standard

Scalability

  • Modules:
    • 2 x Battery Module
    • 2 x Power Module
  • Power Range: 4 kVA to 6 kVA /

Controls/Indicators

  • Status Indicators:
    • Overload
    • Replace Battery
  • Control Panel: Multi-function LCD status and control console

Warranty

  • Limited Warranty: 2 Year
  • Parts Warranty/Labor: 2 Year

Full specifications (PDF)



The APC SYH4K6RMT-P1 is also known as American Power Conversion APC-SYH4K6RMT-P1 or SYH4K6RMTP1 .
