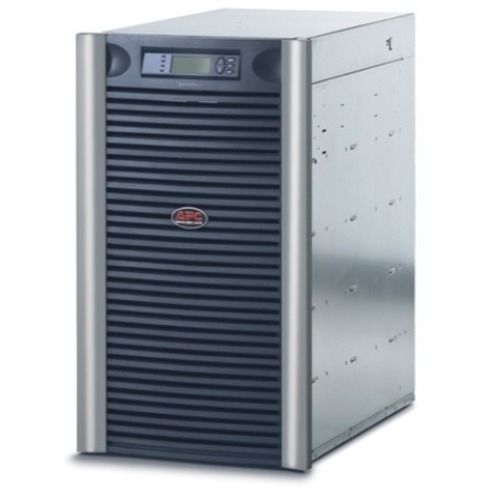

APC - APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS - 5.9 Minute Full Load - 8kVA - SNMP Manageable

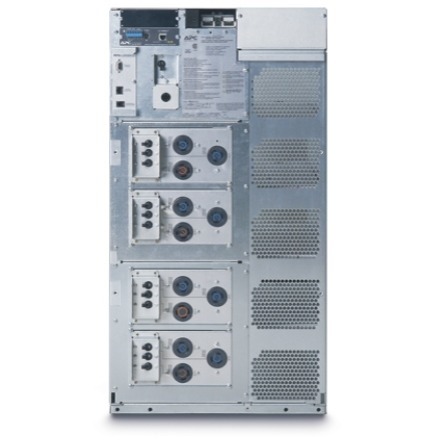

  • Removable input/output wiring tray - Allows quick and easy installation and maintenance of the UPS.
Read More

Need a different version? See all APC Parts Accessories

$20,712.09
Add to Quote
Add to My Shopping List Add to Compare
APC SYA8K16RMP Products
APC SYA8K16RMP Products APC SYA8K16RMP Products APC SYA8K16RMP Products APC SYA8K16RMP Products
APC SYA8K16RMP Products
APC SYA8K16RMP Products
APC SYA8K16RMP Products
APC SYA8K16RMP Products
APC Parts Accessory Model Overview
Products and parts from APC.
APC SYA8K16RMP Products Overview

Engineered to deliver the highest level of business continuity possible, the Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time.

Technical Information
Plug/Connector Type:
Hard Wire 4-wire
Receptacle Type:
  • NEMA L5-20R
  • NEMA L14-30R
Receptacle Detail:
  • 8 x NEMA L5-20R
  • 4 x NEMA L14-30R
Number of Battery & Surge Outlets:
13
Overload Protection:
Yes
Power Description
Load Capacity:
8000 VA
Input Voltage:
208 V AC
Output Voltage:
120 V AC
Input Frequency:
65 Hz
Output Frequency:
60 Hz
Input Current:
37 A
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Automatic
  • Manual
  • External (Optional)
Emergency Power OFF:
Yes
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
5.90 Minute
Backup/Run Time (Half Load):
17 Minute
Typical Battery Recharge Time:
3 Hour
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Thermal Dissipation:
1463.89 W
Physical Characteristics
Product Color:
Black
Form Factor:
Rack-mountable
Rack Height:
19U
Height:
32.9"
Width:
18.6"
Depth:
27.1"
Weight (Approximate):
437.93 lb
Miscellaneous
Package Contents:
  • Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting support rails
  • User manual
  • Web/SNMP management card
    • Additional Information:
    • Automatic restart of loads after UPS shutdown
    • Audible and visible alarms prioritized by severity
    • InfraStruXure Manager Compatible
    • Plug-and-Play external batteries
    • Configurable for 120/208 or 120/240 output voltage
    Certifications & Standards:
    CSA
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace
    Item Numbers
    GTIN: 0843024398872
    UPC: 843024398872
    EAN: 0843024398872
    UNSPSC: 39121011
