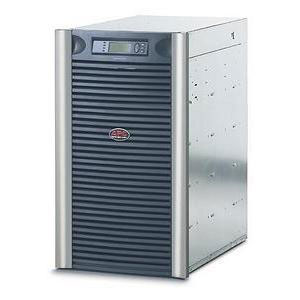

APC SYA16K16RMI UPS

Part Number: SYA16K16RMI
Model: Back-UPS Series
Add to My Shopping List Add to Compare
$36,634.78

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
Hard Wire 3-wireHard Wire 5-wire
Receptacle Type
Hard Wire 3-wireIEC 320-C13IEC 320-C19
Receptacle Detail
1 x Hard Wire 3-wire8 x IEC 320-C1310 x IEC 320-C19
Number of Battery & Surge Outlets
19

Product Description:

  APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mountable UPS - 7.5 Minute Full Load - 16kVA - SNMP Manageable
Explore all APC Back-UPS Series Accessories
Add to Quote
APC SYA16K16RMI UPS
APC SYA16K16RMI UPS
APC SYA16K16RMI UPS
APC SYA16K16RMI UPS APC SYA16K16RMI UPS APC SYA16K16RMI UPS
Full specifications (PDF)

APC Back-UPS Series Accessory Model Overview

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SYA16K16RMI UPS Overview

Engineered to deliver the highest level of business continuity possible, the Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mountable uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time.

Full specifications (PDF)
Technical Information
Plug/Connector Type:
  • Hard Wire 3-wire
  • Hard Wire 5-wire
Receptacle Type:
  • Hard Wire 3-wire
  • IEC 320-C13
  • IEC 320-C19
Receptacle Detail:
  • 1 x Hard Wire 3-wire
  • 8 x IEC 320-C13
  • 10 x IEC 320-C19
Number of Battery & Surge Outlets:
19
Overload Protection:
Yes
Power Description
Load Capacity (VA):
16 kVA
Input Voltage:
440 V AC
Output Voltage:
230 V AC
Input Frequency:
65 Hz
Output Frequency:
60 Hz
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Automatic
  • Manual
Emergency Power OFF:
Yes
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
7.50 Minute
Backup/Run Time (Half Load):
20.30 Minute
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Thermal Dissipation:
1086.41 W
Physical Characteristics
Color Family:
Dual Color
Product Color:
  • Silver
  • Black
Form Factor:
Rack-mountable
Rack Height:
19U
Height:
33"
Width:
19"
Depth:
27"
Weight (Approximate):
631 lb
Miscellaneous
Package Contents:
  • Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • User manual
  • Web/SNMP management card
    • Additional Information:
    • Automatic restart of loads after UPS shutdown
    • Audible and visible alarms prioritized by severity
    • InfraStruXure Manager Compatible
    • Plug-and-Play external batteries
    • Configurable for 220, 230 or 240 nominal output voltage
    Certifications & Standards:
    • C-tick
    • CE
    • EN 50091-1
    • EN 50091-2
    • EN 55022 Class A
    • EN 55024
    • EN 60950
    • GOST
    • IEC 60950
    • VDE
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    2 Year
    Item Numbers
    GTIN: 5907176145649, 7330381200892, 8431775015654, 8592978122362
    EAN: 5907176145649, 7330381200892, 8431775015654, 8592978122362
    UNSPSC: 39121011
    The APC SYA16K16RMI UPS is also known as APC-SYA16K16RMI
