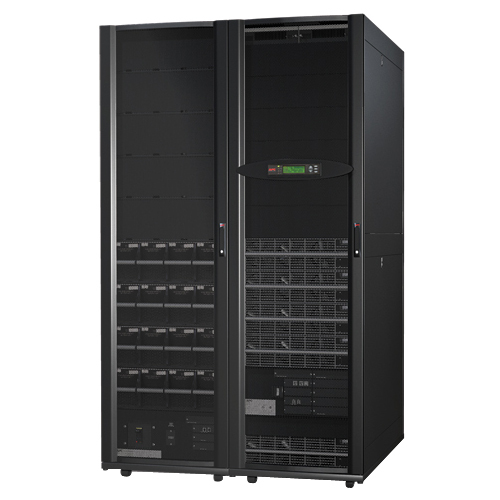

APC - By Schneider Electric Symmetra PX SY40K100F 40kVA Tower UPS - Tower - 2 Hour Recharge - 6 Minute Stand-by - 220 V AC Input - 208 V AC Output - 1 x Hard Wire 5-wire
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SY40K100F Overview

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.

Protect Your Product

Full specifications (PDF)

Technical Information
Receptacle Type:
Hard Wire 5-wire
Receptacle Detail:
1 x Hard Wire 5-wire
Power Description
Load Capacity:
40 kVA/40 kW
Input Voltage:
220 V AC
Output Voltage:
208 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
332 A
Network Management:
SNMP Manageable
Bypass Switch:
  • Static
  • Automatic
  • Internal
Modular Slots:
  • 2 x SmartSlot
  • 5 x Battery
Battery Information
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
6 Minute
Typical Battery Recharge Time:
2 Hour
Physical Characteristics
Form Factor:
Weight (Approximate):
2554.17 lb
Package Contents:
  • Symmetra PX SY40K100F 40kVA Tower UPS
  • Installation Guide
  • Network Management Card
  • User Manual
  • 4 x Battery Modules
Limited Warranty:
1 Year
Item Numbers
GTIN: 0731304282617
UPC: 731304282617
EAN: 0731304282617
UNSPSC: 39121011

The APC SY40K100F is also known as American Power Conversion APC-SY40K100F .
