APC SY20K100F Data Networking

Part Number: SY20K100F
Model: Parts
$48,764.13
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Receptacle Type
Hard Wire 5-wire
Receptacle Detail
1 x Hard Wire 5-wire
Load Capacity (VA)
20 kVA
Input Voltage
220 V AC

Product Description:

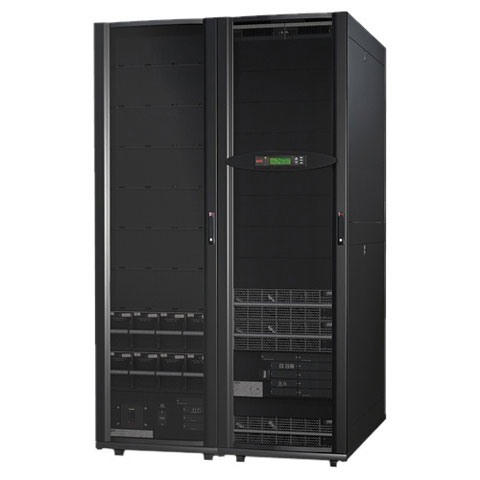

  APC by Schneider Electric Symmetra PX SY20K100F 20kVA Tower UPS - Tower - 2 Hour Recharge - 6 Minute Stand-by - 220 V AC Input - 208 V AC Output - 1 x Hard Wire 5-wire

APC Parts Accessory Model Overview

Products and parts from APC.
APC SY20K100F Data Networking Overview

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.

Technical Information
Receptacle Type:
Hard Wire 5-wire
Receptacle Detail:
1 x Hard Wire 5-wire
Power Description
Load Capacity (VA):
20 kVA
Input Voltage:
220 V AC
Output Voltage:
208 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
332 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Static
  • Automatic
  • Internal
Interfaces/Ports
Modular Slots:
  • 7 x Battery
  • 2 x SmartSlot
Battery Information
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
6 Minute
Typical Battery Recharge Time:
2 Hour
Physical Characteristics
Form Factor:
Tower
Height:
79.2"
Width:
47.2"
Depth:
42.1"
Weight (Approximate):
1994.59 lb
Miscellaneous
Package Contents:
  • Symmetra PX SY20K100F 20kVA Tower UPS
  • Installation Guide
  • Network Management Card
  • User Manual
  • 2 x Battery Modules
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0731304282594
UPC: 731304282594
EAN: 0731304282594
UNSPSC: 39121011
