APC SY100K250DR-PD UPS

APC - Symmetra PX 100kW Scalable to 250kW Tower UPS - 7.8 Minute Full Load - 100kVA - SNMP Manageable
$119,283.84
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.

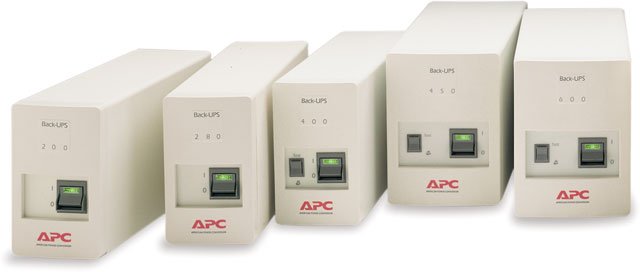

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

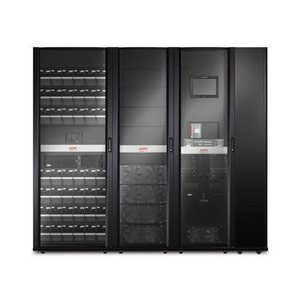

APC SY100K250DR-PD Overview

Scalable, high-efficiency 3-phase UPS with integrated maintenance bypass & sub-feed distribution. This system scales as your data center grows up to 250kW/250kVA. To support additional growth, this UPS can be easily expanded to scale to 500kW and supports up to four systems in parallel. Suitable for medium & large data center applications.

Protect Your Product

Full specifications (PDF)

Technical Information
Plug/Connector Type:
  • Hard Wire 4-wire
  • Hard Wire 5-wire
Receptacle Type:
  • Hard Wire 4-wire
  • Hard Wire 5-wire
Receptacle Detail:
  • 1 x Hard Wire 4-wire
  • 1 x Hard Wire 5-wire
Power Description
Load Capacity:
100 kVA/100 kW
Input Voltage:
220 V AC
Output Voltage:
480 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Maintenance
  • Static
Interfaces/Ports
Modular Slots:
  • 6 x Battery
  • 3 x SmartSlot
Battery Information
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
7.80 Minute
Backup/Run Time (Half Load):
23.80 Minute
Typical Battery Recharge Time:
8 Hour
Physical Characteristics
Form Factor:
Tower
Height:
78.4"
Width:
92.5"
Depth:
42"
Weight (Approximate):
5792 lb
Miscellaneous
Package Contents:
  • Symmetra PX 100kW Scalable to 250kW Tower UPS
  • User Manual
  • Web/SNMP Management Card
  • 42 x Battery Modules
Additional Information:
  • Bypass Voltage Tolerance: +/-10% settable from +/-4/6/8 and 10%
  • Max Configurable Power: 500 kW / 500 kVA
  • Input voltage range for main operations: 408 - 552 (480)V
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 39121011


The APC SY100K250DR-PD is also known as American Power Conversion APC-SY100K250DR-PD or SY100K250DRPD .
