APC SY100K100F Accessory

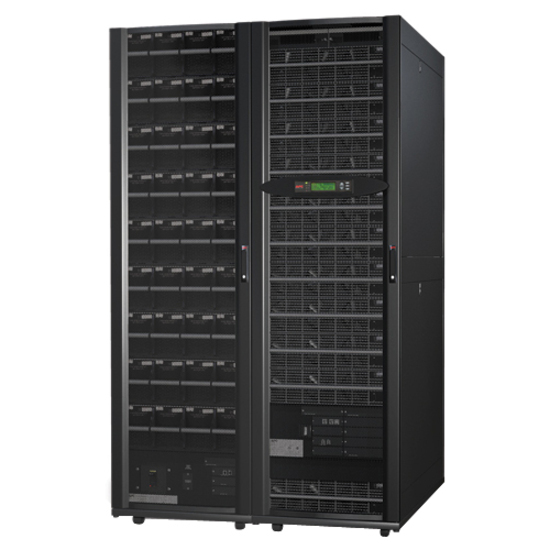

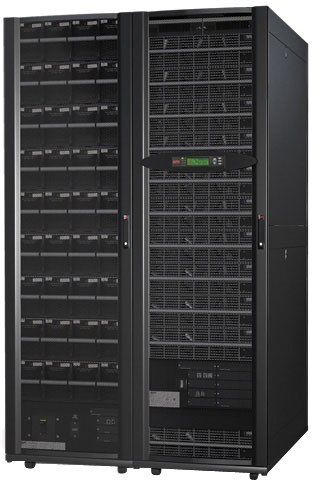

APC - APC by Schneider Electric Symmetra PX SY100K100F 100kVA Tower UPS - Tower - 2 Hour Recharge - 5 Minute Stand-by - 220 V AC Input - 208 V AC Output - 1 x Hard Wire 5-wire
$125,600.00
Add to Quote
APC Parts Accessory Model Overview
Products and parts from APC.
APC SY100K100F Accessory Overview

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.

Technical Information
Receptacle Type:
Hard Wire 5-wire
Receptacle Detail:
1 x Hard Wire 5-wire
Power Description
Load Capacity:
100 kVA
Input Voltage:
220 V AC
Output Voltage:
208 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
332 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Static
  • Automatic
  • Internal
Interfaces/Ports
Modular Slots:
2 x SmartSlot
Battery Information
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
5 Minute
Typical Battery Recharge Time:
2 Hour
Physical Characteristics
Form Factor:
Tower
Height:
79.2"
Width:
47.2"
Depth:
42"
Weight (Approximate):
4224 lb
Miscellaneous
Package Contents:
  • Symmetra PX SY100K100F 100kVA Tower UPS
  • Installation Guide
  • Network Management Card
  • User Manual
  • 9 x Battery Modules
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0731304282570
UPC: 731304282570
EAN: 0731304282570
UNSPSC: 39121011
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The APC SY100K100F Accessory is also known as APC-SY100K100F
