APC SUVTR30KF3B5S Power Device

APC Accessories - Smart-UPS VT (RM 30kVA 208V with 3 Battery Modules)
$19,116.50
Temporarily out of stock; available to order
FREE SHIPPING OVER $49
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: VT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp

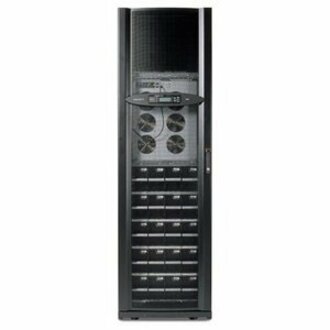

  • Product Name: Smart-UPS VT 30kVA Tower UPS
  • Product Line: Smart-UPS

Technical Information

  • Receptacles:
    • 1 x Hard Wire 5-wire 3PH + N + G - Backup/Surge-protected
    • 5 x NEMA L21-20 - Backup/Surge-protected
  • Plug/Connector Type: Hard Wire 5-wire 3PH + N + G
  • Interfaces/Ports: RS-232

Physical Characteristics

  • Height: 78.5"
  • Width: 23.6"
  • Depth: 42"
  • Form Factor: Tower
  • Weight (Approximate): 1444 lb

Interfaces/Ports

  • Modular Slots: 2 x Battery
  • Interfaces/Ports: RS-232

Other

  • Package Contents:
    • Smart-UPS VT 30kVA Tower UPS
    • CD with software
    • Installation guide
    • Power modules ship installed
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS VT 30kVA Tower UPS
    • CD with software
    • Installation guide
    • Power modules ship installed
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card
  • Additional Information: Output Voltage Note: Configurable for 200 : 208 or 220V 3 Phase nominal output voltage

Power Description

  • Input Voltage Range:
    • 208 V AC 3-phase Nominal
    • 165 V AC to 240 V AC Mains Operation
  • Load Capacity: 30 kVA/24 kW
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC 3-phase Nominal
  • Current: 80 A Maximum Input Current
  • Frequency:
    • 57 to 63 Hz Output
    • 40 to 70 Hz Input
  • Input Current: 80 A

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Maintenance
    • Static
  • Emergency Power OFF: Yes
  • Overload Protection: Resettable circuit breakers

Battery Information

  • Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.09 Hour 24 kW Full Load
    • 0.31 Hour 12 kW Half Load
  • Battery Recharge Time: 3 Hour Typical

Warranty

  • Limited Warranty: 1 Year
  • Parts Warranty/Labor: 1 Year

Scalability

  • Modules: 3 x Battery Module

Full specifications (PDF)



The APC SUVTR30KF3B5S is also known as American Power Conversion APC-SUVTR30KF3B5S .
