APC SUVTP30KF3B4S UPS

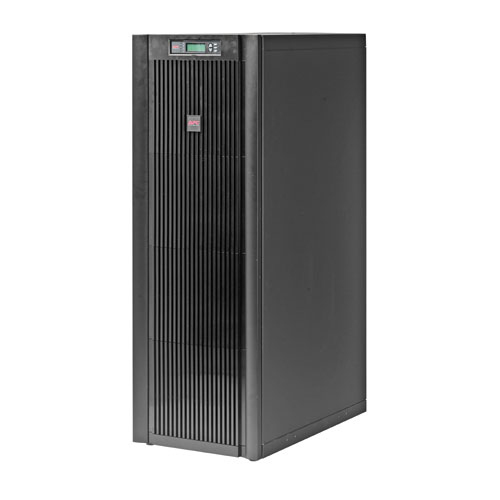

APC - Smart-UPS VT 30kVA 208V with 3 Battery Mod Exp to 4 START UP
$17,891.40
Temporarily out of stock; available to order
FREE SHIPPING OVER $49
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: VT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS VT 30 kVA Tower UPS
  • Product Line: Smart-UPS

Technical Information

  • Receptacles:
    • 1 x Hard Wire 5-wire 3PH + N + G
    • 1 x Screw Terminal
  • Plug/Connector Type: Hard Wire 5-wire 3PH + N + G
  • Interfaces/Ports: DB-9 RS-232 Serial

Physical Characteristics

  • Height: 59"
  • Width: 20.6"
  • Depth: 32"
  • Form Factor: Tower
  • Weight (Approximate): 1181 lb

Interfaces/Ports

  • Modular Slots:
    • 1 x Battery
    • SmartSlot
  • Interfaces/Ports: DB-9 RS-232 Serial

Other

  • Package Contents:
    • Smart-UPS VT 30 kVA Tower UPS
    • 3 x Battery Modules ship installed
    • Bolt Down Brackets
    • CD with Software
    • Installation Guide
    • Power Modules ship installed
    • Smart UPS Signalling RS-232 Cable
    • Start Up Service
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS VT 30 kVA Tower UPS
    • 3 x Battery Modules ship installed
    • Bolt Down Brackets
    • CD with Software
    • Installation Guide
    • Power Modules ship installed
    • Smart UPS Signalling RS-232 Cable
    • Start Up Service
    • User Manual
    • Web/SNMP Management Card

Power Description

  • Input Voltage Range:
    • 208 V AC 3-phase Nominal
    • 165 V AC to 240 V AC Mains Operation
  • Load Capacity: 30 kVA/24 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC Nominal
    • 208 V AC 3-phase Nominal
  • Current: 80 A Maximum Input Current
  • Frequency:
    • 40 to 70 Hz Input
    • 57 to 63 Hz Output
  • Input Current: 80 A

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Automatic
    • Internal
    • Manual
    • Maintenance
    • Static
  • Emergency Power OFF: Yes

Battery Information

  • Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.09 Hour 24 kW Full Load
    • 0.31 Hour 12 kW Half Load
  • Battery Recharge Time: 3 Hour Typical

Scalability

  • Modules: 3 x Battery Module

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)



The APC SUVTP30KF3B4S is also known as American Power Conversion APC-SUVTP30KF3B4S .
