APC SUVTP20KF2B4S Power Device

APC Accessories - Smart-UPS VT 20kVA 208V (with 2BAT Mod Exp to 4, SRT 5x8, Int Maint)
$14,847.20
Temporarily out of stock; available to order
FREE SHIPPING OVER $49
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: VT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp

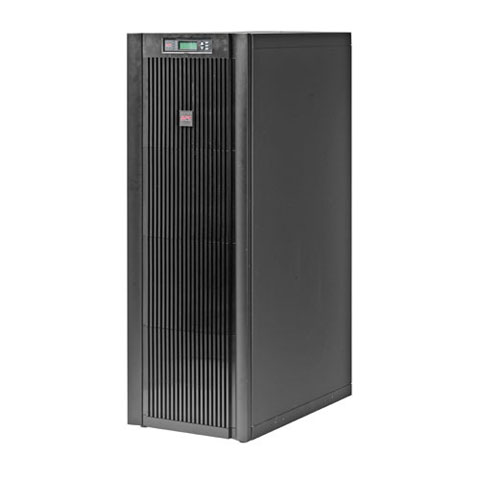

  • Product Name: Smart-UPS VT 20kVA Tower UPS
  • Product Line: Smart-UPS

Technical Information

  • Receptacles:
    • 1 x Hard Wire 5-wire 3PH + N + G
    • 1 x Screw Terminal
  • Plug/Connector Type: Hard Wire 5-wire 3PH + N + G
  • Interfaces/Ports: DB-9 RS-232 Serial

Physical Characteristics

  • Height: 59"
  • Width: 20.6"
  • Depth: 32"
  • Form Factor: Tower
  • Weight (Approximate): 979 lb

Interfaces/Ports

  • Modular Slots:
    • 2 x Battery
    • SmartSlot
  • Interfaces/Ports: DB-9 RS-232 Serial

Other

  • Package Contents:
    • Smart-UPS VT 20kVA Tower UPS
    • Battery modules
    • Bolt down brackets
    • CD with software
    • Installation guide
    • Power modules
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS VT 20kVA Tower UPS
    • Battery modules
    • Bolt down brackets
    • CD with software
    • Installation guide
    • Power modules
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card

Power Description

  • Input Voltage Range:
    • 208 V AC 3-phase Nominal
    • 165 V AC to 240 V AC Mains Operation
  • Load Capacity: 20 kVA/16 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC Nominal
    • 208 V AC 3-phase Nominal
    • 208 V AC 3-phase Configurable
    • 220 V AC 3-phase Configurable
  • Current: 53 A Maximum Input Current
  • Frequency:
    • 57 to 63 Hz Output
    • 40 to 70 Hz Input
  • Input Current: 53 A

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Internal
    • Maintenance
    • Static
    • Automatic
    • Manual
  • Emergency Power OFF: Yes
  • Overload Protection: 80A Input Breaker

Battery Information

  • Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.09 Hour 16 kW Full Load
    • 0.30 Hour 8 kW Half Load
  • Battery Recharge Time: 5 Hour Typical

Scalability

  • Modules: 2 x Battery Module

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)



The APC SUVTP20KF2B4S is also known as American Power Conversion APC-SUVTP20KF2B4S .
