APC SUVTP15KF4B4S UPS


0.0

(No reviews)

Be the first to

Write a Review
APC Smart-UPS Series - Smart-UPS VT 15kVA 208V with Battery Mod, Start-Up 5X8
$18,105.00
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:

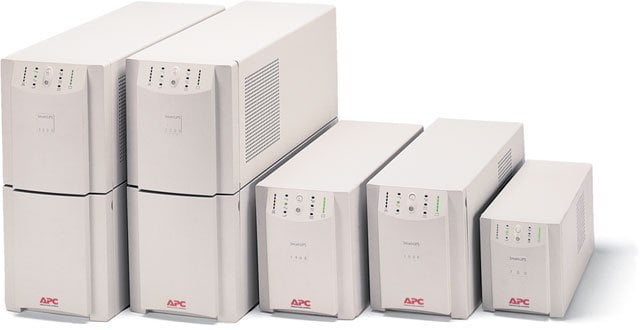

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails.

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: VT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS VT 15kVA Tower UPS
  • Product Line: Smart-UPS

Technical Information

  • Receptacles:
    • 1 x Hard Wire 5-wire 3PH + N + G
    • 1 x Screw Terminal
  • Plug/Connector Type: Hard Wire 5-wire 3PH + N + G
  • Interfaces/Ports: DB-9 RS-232 Serial

Physical Characteristics

  • Height: 59"
  • Width: 20.6"
  • Depth: 32"
  • Form Factor: Tower
  • Weight (Approximate): 1318 lb

Interfaces/Ports

  • Modular Slots: SmartSlot
  • Interfaces/Ports: DB-9 RS-232 Serial

Other

  • Package Contents:
    • Smart-UPS VT 15kVA Tower UPS
    • Battery modules
    • Bolt down brackets
    • CD with software
    • Installation guide
    • Power modules
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS VT 15kVA Tower UPS
    • Battery modules
    • Bolt down brackets
    • CD with software
    • Installation guide
    • Power modules
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card

Power Description

  • Input Voltage Range:
    • 208 V AC 3-phase Nominal
    • 160 V AC to 240 V AC Mains Operation
  • Load Capacity: 15 kVA/12 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC Nominal
    • 208 V AC 3-phase Nominal
    • 208 V AC 3-phase Configurable
    • 220 V AC 3-phase Configurable
  • Current: 40 A Maximum Input Current
  • Frequency:
    • 57 to 63 Hz Output
    • 40 to 70 Hz Input
  • Input Current: 40 A

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Internal
    • Maintenance
    • Static
    • Automatic
    • Manual
  • Emergency Power OFF: Yes
  • Overload Protection: 60A Input Breaker

Battery Information

  • Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.45 Hour 12 kW Full Load
    • 1.09 Hour 6 kW Half Load
  • Battery Recharge Time: 5 Hour Typical

Scalability

  • Modules: 4 x Battery Module

Warranty

  • Limited Warranty: 1 Year
Brand APC
Model Smart-UPS Series


Customer Review Summary

Recommended Accessories for Model: APC Smart-UPS Series UPS
Protect Your Product

The APC SUVTP15KF4B4S is also known as American Power Conversion APC-SUVTP15KF4B4S .
