APC SUVTP15KF3B4S Power Device
APC SUVTP15KF3B4S Power Device
APC Accessories -

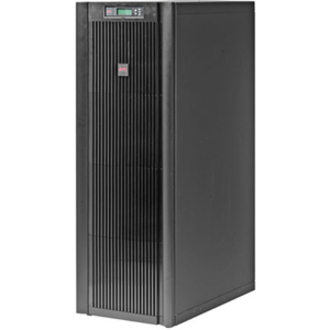

Smart-UPS VT 15kVA Tower UPS - 18 Minute Full Load - 15kVA - SNMP Manageable
$16,506.13
Global Supply Chain Constraints; Order now to be first when stock is available
Full specifications (PDF)APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SUVTP15KF3B4S Overview
Smart-UPS VT 15kVA Tower UPS offers centralized three-phase power protection. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT 15kVA Tower UPS includes dual-mains input, automatic and maintenance bypasses, for increased availability. The APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with InfraStruXure Manager. All these features makes it the easiest UPS in its class to deploy, manage and maintain.
Protect Your Product
Technical Information
Plug/Connector Type:
Hard Wire 5-wire
Receptacle Type:
- Hard Wire 5-wire
- Screw Terminal
Receptacle Detail:
- 1 x Hard Wire 5-wire
- 1 x Screw Terminal
Overload Protection:
Yes
Power Description
Load Capacity:
15 kVA/12 kW
Input Voltage:
220 V AC
Output Voltage:
- 120 V AC
- 208 V AC
- 220 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
40 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
- Internal
- Maintenance
- Static
- Manual
- Automatic
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
Modular Slots:
- 1 x Battery
- SmartSlot
Battery Information
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
18 Minute
Backup/Run Time (Half Load):
45.70 Minute
Typical Battery Recharge Time:
5 Hour
Physical Characteristics
Form Factor:
Tower
Height:
59"
Width:
20.6"
Depth:
32"
Weight (Approximate):
1115 lb
Miscellaneous
Package Contents:
- Smart-UPS VT 15kVA Tower UPS
- Battery modules
- Bolt down brackets
- CD with software
- Installation guide
- Power modules
- Smart UPS signalling RS-232 cable
- Start up included
- User Manual
- Web/SNMP Management Card
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
39121011
The APC SUVTP15KF3B4S is also known as American Power Conversion APC-SUVTP15KF3B4S .
