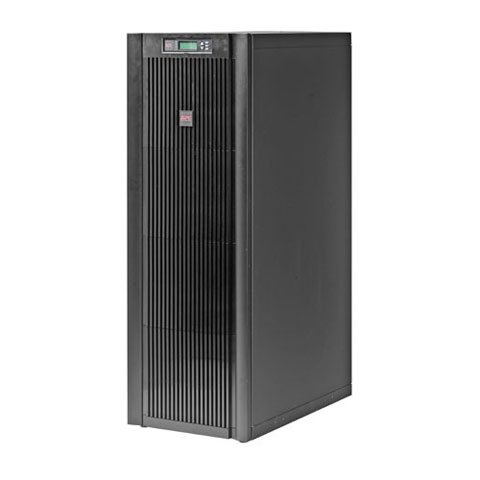

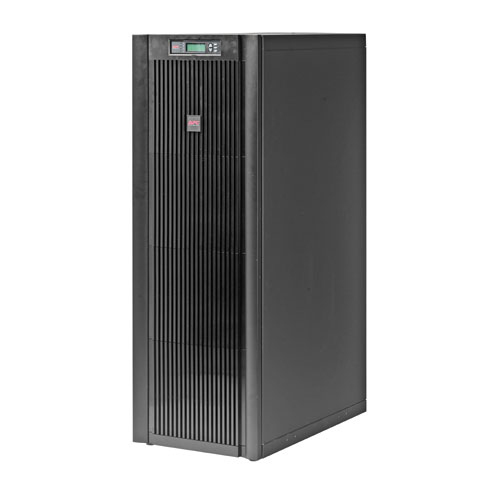

APC SUVTP10KF3B4S UPS

APC Back-UPS Series - APC Smart-UPS VT 10kVA Tower UPS - 31 Minute Full Load - 10kVA - SNMP Manageable

Need a different version? See all APC Back-UPS Series Accessories

$16,369.23
Add to Quote
Add to My Shopping List Add to Compare
APC SUVTP10KF3B4S UPS
APC SUVTP10KF3B4S UPS APC SUVTP10KF3B4S UPS APC SUVTP10KF3B4S UPS
APC SUVTP10KF3B4S UPS
APC SUVTP10KF3B4S UPS
APC SUVTP10KF3B4S UPS
Full specifications (PDF)
APC Back-UPS Series Accessory Model Overview
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SUVTP10KF3B4S UPS Overview

Smart-UPS VT 10kVA Tower UPS offers centralized three-phase power protection. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT 10kVA Tower UPS 10kVA Tower UPS includes dual-mains input and scalable runtime for increased availability. The APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with InfraStruXure Manager. All these features make this UPS easiest in its class to deploy, manage and maintain.

Full specifications (PDF)
Technical Information
Plug/Connector Type:
Hard Wire 5-wire
Receptacle Type:
  • Hard Wire 5-wire
  • Screw Terminal
Receptacle Detail:
  • 1 x Hard Wire 5-wire
  • 1 x Screw Terminal
Overload Protection:
Yes
Power Description
Load Capacity:
10000 VA/8000 W
Input Voltage:
220 V AC
Output Voltage:
  • 120 V AC
  • 208 V AC
  • 220 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
27 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Internal
  • Maintenance
  • Static
  • Automatic
  • Manual
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
Modular Slots:
  • 1 x Battery
  • SmartSlot
Battery Information
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
31 Minute
Backup/Run Time (Half Load):
1.23 Hour
Typical Battery Recharge Time:
5 Hour
Physical Characteristics
Form Factor:
Tower
Height:
59"
Width:
20.6"
Depth:
32"
Weight (Approximate):
1115 lb
Miscellaneous
Package Contents:
  • Smart-UPS VT 10kVA Tower UPS
  • Battery modules
  • Bolt down brackets
  • CD with software
  • Installation guide
  • Power modules
  • Smart UPS signalling RS-232 cable
  • Start up included
  • User Manual
  • Web/SNMP Management Card
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 39121011
