Full specifications (PDF)
Plug/Connector Type:
Hard Wire 5-wire
Receptacle Type:
- Hard Wire 5-wire
- Screw Terminal
Receptacle Detail:
- 1 x Hard Wire 5-wire
- 1 x Screw Terminal
APC Back-UPS Series Accessory Model Overview
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

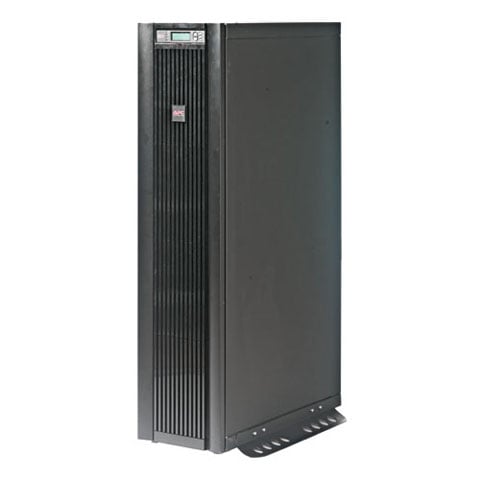

APC SUVTP10KF2B2S UPS Overview
APC Smart-UPS VT 20 kVA Tower UPS offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability.
Technical Information
Power Description
Load Capacity:
10000 VA/8000 W
Input Voltage:
220 V AC
Output Voltage:
- 120 V AC
- 208 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
27 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
- Automatic
- Internal
- Maintenance
- Manual
- Static
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
Modular Slots:
SmartSlot
Battery Information
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
18 Minute
Backup/Run Time (Half Load):
45.20 Minute
Typical Battery Recharge Time:
5 Hour
Physical Characteristics
Form Factor:
Tower
Height:
59"
Width:
14"
Depth:
32"
Weight (Approximate):
873 lb
Miscellaneous
Package Contents:
- Smart-UPS VT 10 kVA Tower UPS
- 2 x Battery Modules ship installed
- Bolt Down Brackets
- CD with Software
- Installation Guide
- Power Modules ship installed
- Smart UPS Signalling RS-232 Cable
- Start Up Service
- User Manual
- Web/SNMP Management Card
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
39121011
