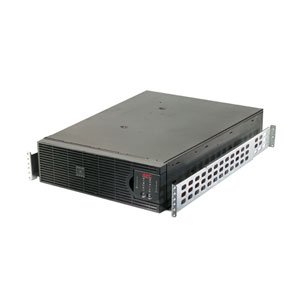

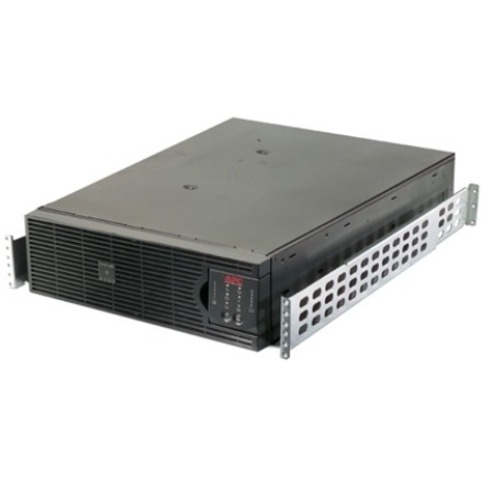

APC SURTD6000RMXLP3U Accessory

APC Back-UPS Series - APC Smart-UPS RT 6000VA Rack-Mountable UPS - 6000VA/4200W - 4.4 Minute Full Load - 1 x NEMA L6-30R, 1 x NEMA L14-30R, 4 x NEMA 5-20R
  • Multiple output voltages - 48Vdc, 24Vdc, and 120Vac are available to power all of the equipment in the cabinet.
Read More

Need a different version? See all APC Back-UPS Series Accessories

$9,722.82
In Stock
Add to Quote
Add to My Shopping List Add to Compare
APC SURTD6000RMXLP3U Accessory
APC SURTD6000RMXLP3U Accessory APC SURTD6000RMXLP3U Accessory APC SURTD6000RMXLP3U Accessory APC SURTD6000RMXLP3U Accessory APC SURTD6000RMXLP3U Accessory
APC SURTD6000RMXLP3U Accessory
APC SURTD6000RMXLP3U Accessory
APC SURTD6000RMXLP3U Accessory
APC SURTD6000RMXLP3U Accessory
APC SURTD6000RMXLP3U Accessory
Full specifications (PDF)
APC Back-UPS Series Accessory Model Overview
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SURTD6000RMXLP3U Accessory Overview

Smart-UPS RT 6000VA Rack-Mountable UPS supplies utility power to the connected loads in the event of a UPS overload condition or fault. Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Full specifications (PDF)
Technical Information
Plug/Connector Type:
NEMA L14-30P
Receptacle Type:
  • NEMA 5-20R
  • NEMA L6-30R
  • NEMA L14-30R
Receptacle Detail:
  • 4 x NEMA 5-20R
  • 1 x NEMA L6-30R
  • 1 x NEMA L14-30R
Number of Battery & Surge Outlets:
6
Bypass Switch:
  • Automatic
  • Manual
Emergency Power OFF:
Yes
Cord Length:
10 ft
Power Description
Load Capacity:
6000 VA/4200 W
Input Voltage:
208 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
480 J
Interfaces/Ports
Serial Port:
Yes
Battery Information
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
4.40 Minute
Backup/Run Time (Half Load):
14.10 Minute
Typical Battery Recharge Time:
2.50 Hour
Hot Swappable:
Yes
Physical Characteristics
Product Color:
Black
Height:
5.1"
Width:
17"
Depth:
26"
Rack Height:
3U
Form Factor:
Rack-mountable
Weight (Approximate):
128 lb
Miscellaneous
Package Contents:
  • Smart-UPS RT 6000VA Rack-Mountable UPS
  • CD with software
  • Rack mounting support rails
  • Removable support feet
  • Smart UPS signalling RS-232 cable
  • User manual
    • Certifications & Standards:
    CSA
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace
    Item Numbers
    GTIN: 0012302361918, 0731304258827, 4913393136835, 4923773149676, 4963273167152
    UPC: 012302361918, 731304258827
    EAN: 0012302361918, 0731304258827, 4913393136835, 4923773149676, 4963273167152
    UNSPSC: 39121011
