APC SURTD5000RMXLP3U Accessory

Part Number: SURTD5000RMXLP3U
$12,078.26
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L14-30P
Receptacle Type
NEMA L14-30P
Receptacle Detail
1 x NEMA L14-30R1 x NEMA L6-30R4 x NEMA 5-20R
Number of Battery & Surge Outlets
6

Product Description:

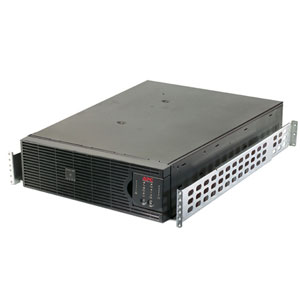

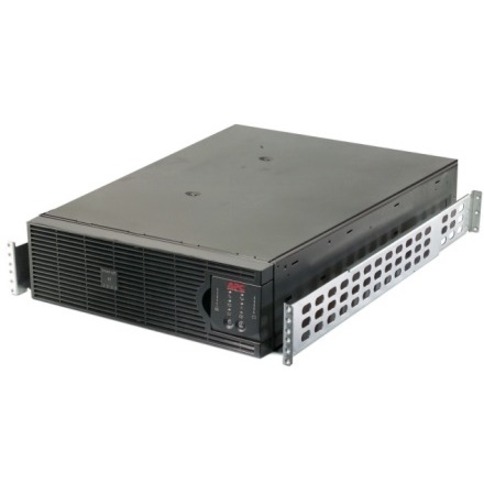

  APC Smart-UPS RT 5000VA Tower/Rack-mountable UPS - 5000VA/4000W - 4.8 Minute Full Load - 1 x NEMA L6-20R, 1 x NEMA L14-30R, 4 x NEMA 5-20R

APC Back-UPS Series Accessory Model Overview

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SURTD5000RMXLP3U Accessory Overview

Smart-UPS On-Line provides high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChuteâ"¢ management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated network management card for remote management (optional on models below 5kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, internal bypass, and input power factor correction.

More from the Manufacturer

Technical Information
Plug/Connector Type:
NEMA L14-30P
Receptacle Type:
NEMA L14-30P
Receptacle Detail:
  • 1 x NEMA L14-30R
  • 1 x NEMA L6-30R
  • 4 x NEMA 5-20R
Number of Battery & Surge Outlets:
6
Bypass Switch:
  • Automatic
  • Internal
  • Manual
Emergency Power OFF:
Yes
Cord Length:
10 ft
Power Description
Load Capacity (VA):
5000 VA
Load Capacity (Watt):
4000 W
Input Voltage:
208 V
Output Voltage:
  • 120 V AC
  • 208 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
365 J
Interfaces/Ports
Serial Port:
Yes
Battery Information
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
4.80 Minute
Backup/Run Time (Half Load):
15.10 Minute
Typical Battery Recharge Time:
2.50 Hour
Hot Swappable:
Yes
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
5.1"
Width:
17"
Depth:
26"
Rack Height:
3U
Form Factor:
Rack-mountable
Mounting Preference:
Lower
Mounting Location:
Front
Weight (Approximate):
128 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
  • Smart-UPS RT 5000VA Tower/Rack-mountable UPS
  • CD with software
  • Rack mounting support rails
  • Removable support feet
  • Smart UPS signalling RS-232 cable
  • User manual
  • Certifications & Standards:
    CSA
    Optimized Energy Efficiency:
    Yes
    Product Take Back Program:
    No
    Mercury Free:
    Yes
    RoHS Exemption Information:
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURTD5000RMXLP3U_ROHS_DECLARATION&p_FileName=SURTD5000RMXLP3UKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765934&lang=en-us
    EU RoHS Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765934&lang=en-us
    Environmental Profile Availability:
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
    End of Life Manual Availability:
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
    California Proposition 65 Warning:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACH free of SVHC:
    No
    WEEE Statement:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace
    Item Numbers
    GTIN: 0012304216001, 0731304258810, 0787618000720, 4923763196123
    UPC: 012304216001, 643749351684, 731304258810, 787618000720
    EAN: 0012304216001, 0731304258810, 0787618000720, 4923763196123
    UNSPSC: 39121011

    Frequently Asked Questions

    The Videolarm PV4 offers flexible mounting configurations including recessed ceiling mount and pendant mount options, allowing you to choose the installation method that best fits your surveillance layout. Both mounting styles are designed to accommodate various camera lenses, giving you maximum flexibility in addressing different surveillance application needs. We offer both configurations available from us to suit your facility's requirements.

    Yes, the Videolarm PV4 is engineered with extreme flexibility to accommodate various camera lens options, allowing you to customize your surveillance system for any specific application. This lens versatility makes it an ideal choice for facilities with diverse monitoring requirements across different areas. Contact us today to discuss which lens configuration works best for your security needs.

    The Videolarm PV4 comes with your choice of either a clear dome or a tinted dome, allowing you to select the option that best matches your surveillance environment and aesthetic requirements. The clear dome provides unobstructed visibility, while the tinted dome offers additional discretion. Visit barcodesinc.com to explore both dome variants available for your installation.

    Yes, the Videolarm PV4 is specifically designed as a recessed ceiling mount dome that integrates seamlessly into drop ceiling environments. It includes an anchoring jig to facilitate secure and precise installation in ceiling applications. Our team can help you determine if this housing meets your facility's recessed ceiling requirements—contact us today for installation guidance.

    The Videolarm PV4 weighs 14 pounds, making it suitable for standard ceiling mounting infrastructure. This weight specification is important to verify with your facility's ceiling support capacity before installation. Contact us today if you need detailed dimensional specifications or installation requirements for your specific application.

    The Videolarm PV4 is engineered to address any surveillance application need, from retail and warehouse monitoring to office and facility security. Its flexible mounting options, lens compatibility, and dome choices make it adaptable to diverse environments and security requirements. Visit barcodesinc.com to discuss how we can outfit your facility with the right camera housing solution.

    The APC SURTD5000RMXLP3U Accessory is also known as APC-SURTD5000RMXLP3U
