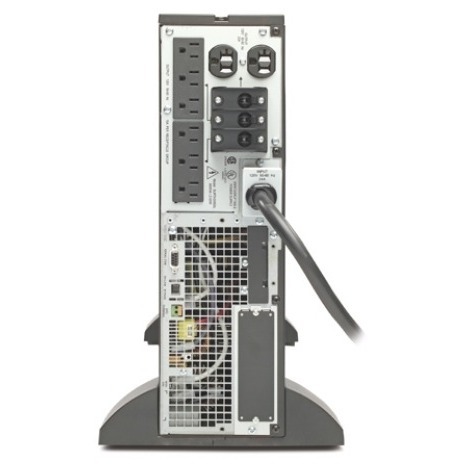

APC SURTA3000XL UPS

Part Number: SURTA3000XL
Model: Parts
$4,787.32

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L5-30P
Receptacle Type
NEMA 5-15RNEMA 5-20R
Receptacle Detail
6 x NEMA 5-15R2 x NEMA 5-20R
Number of Battery & Surge Outlets
8

Product Description:

  APC Smart-UPS RT 3000VA Rack/Tower - 3000VA/2100W - 14.1 Minute Full Load - 6 x NEMA 5-15R, 2 x NEMA 5-20R

APC Parts Accessory Model Overview

Products and parts from APC.
APC SURTA3000XL UPS Overview

A versatile UPS developed for the harshest power conditions in the world:

Smart-UPS RT 3000VA Rack/Tower is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Featuring double conversion on-line topology, the Smart-UPS RT 3000VA Rack/Tower protects your data by supplying reliable, network-grade power. Rack-optimized models are an ideal choice for space constrained environments.
Technical Information
Plug/Connector Type:
NEMA L5-30P
Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-20R
Receptacle Detail:
  • 6 x NEMA 5-15R
  • 2 x NEMA 5-20R
Number of Battery & Surge Outlets:
8
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Yes
Cord Length:
10 ft
Power Description
Load Capacity (VA):
3000 VA
Load Capacity (Watt):
2100 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
480 J
Management
Alarm:
  • On Battery
  • Low Battery
  • Overload
Battery Management:
Intelligent battery management
Controls/Indicators
Status Indicators:

LED display with load and battery bar-graphs:

  • On Line
  • On Battery
  • Replace Battery
  • Overload
  • Bypass
Interfaces/Ports
Serial Port:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
14.10 Minute
Backup/Run Time (Half Load):
33.90 Minute
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Thermal Dissipation:
191.96 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
5"
Width:
17"
Depth:
26"
Form Factor:
Tower
Weight (Approximate):
120 lb
Miscellaneous
Package Contents:
  • Smart-UPS RT 3000VA Tower UPS
  • CD with software
  • Smart UPS signalling RS-232 cable
  • User manual
  • Additional Information:
    • Supports both Tower and Rack-mountable configurations but does not include rack mounting kit
    • Automatic restart of loads after UPS shutdown
    • Automatic self-test
    • Frequency and voltage regulation
    • Plug-and-Play external batteries
    • Power conditioning
    Certifications & Standards:
    • CSA
    • FCC Part 15 Class A
    • UL 1778
    • IEEE
    • UL 1449
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    2 Year
    Item Numbers
    GTIN: 0007313042314, 0012303570814, 0722231339048, 0731304231479
    UPC: 007313042314, 012303570814, 722231339048, 731304231479
    EAN: 0007313042314, 0012303570814, 0722231339048, 0731304231479
    UNSPSC: 39121011
    The APC SURTA3000XL UPS is also known as APC-SURTA3000XL
