APC SURTA1000RMXL2U Accessory

Part Number: SURTA1000RMXL2U
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
6 x NEMA 5-15R
Protection Type
SurgeOver LoadingSpikeLightning

Product Description:

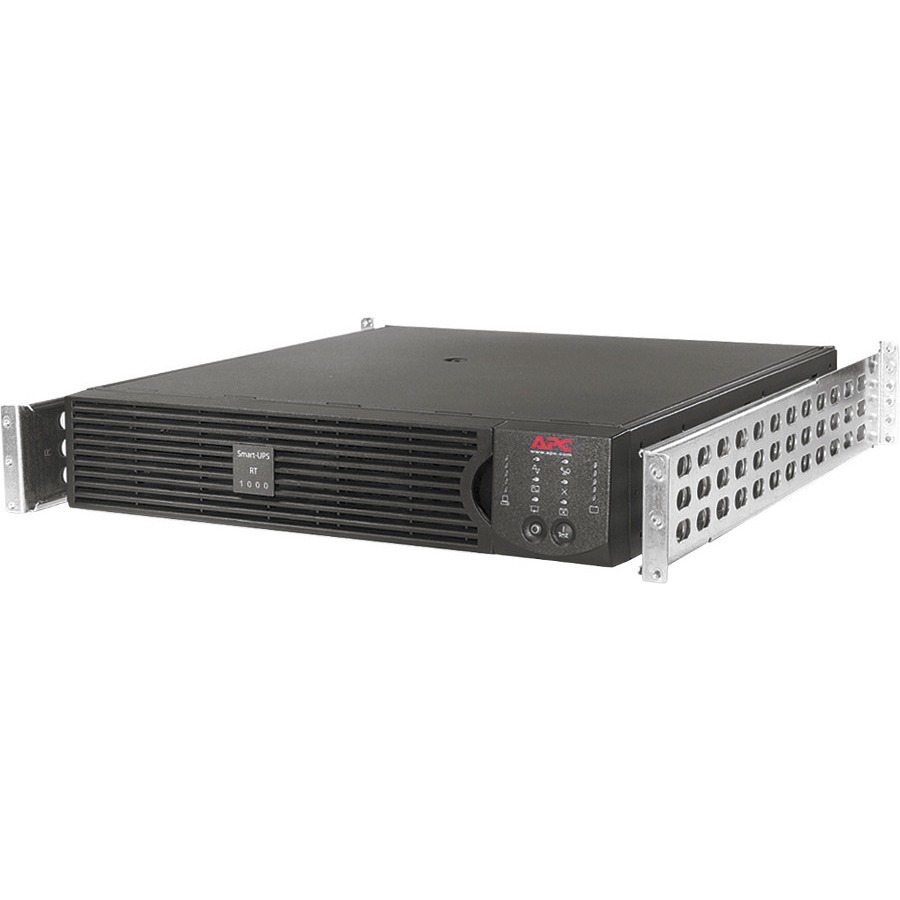

  Smart-UPS RT 1000VA RM 120V

APC Parts Accessory Model Overview

Products and parts from APC.
APC SURTA1000RMXL2U Accessory Overview

A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

More from the Manufacturer

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
6 x NEMA 5-15R
Protection Type:
  • Surge
  • Over Loading
  • Spike
  • Lightning
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Cord Length:
6 ft
Power Description
Load Capacity:
1000 VA/800 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
540 J
Circuit Breaker:
Yes
Management
Alarm:
  • Overload
  • Low Battery
  • Fault
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:
LED Display:
  • On Battery
  • Replace Battery
  • Overload
  • Bypass Indicators
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Number of Batteries:
1
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Lead Acid
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Physical Characteristics
Product Color:
Black
Height:
3.3"
Width:
17"
Depth:
22"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
60.63 lb
Miscellaneous
Package Contents:
  • Smart-UPS RT 1000VA RM 120V
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Support Rails
  • Smart UPS Signalling RS-232 Cable
  • USB Cable
  • User Manual
Certifications & Standards:
  • BSMI
  • CSA
  • FCC Part 15 Class B
  • Ul 1778
  • OSHPD
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0643749351783, 0731304306115
UPC: 643749351783, 731304306115
EAN: 0643749351783, 0731304306115
UNSPSC: 39121011
The APC SURTA1000RMXL2U Accessory is also known as APC-SURTA1000RMXL2U
