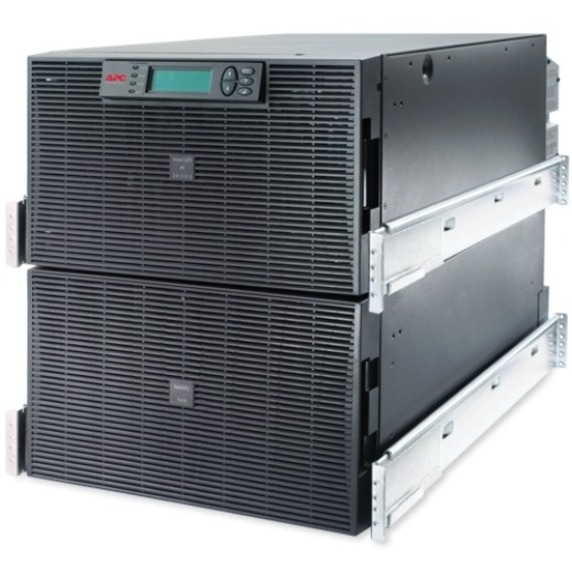

APC SURT20KRMXLT Power Device

APC Accessories - Smart-UPS RT 20000VA Tower/Rack Mountable UPS - 20000VA/16000W - 4.9 Minute Full Load - 1 x Hard Wire 3-wire (2PH + G), 4 x NEMA L6-20R, 2 x NEMA L6-30R
  • Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
  • Up to 4.90 minute runtime on full load to preserve critical data from power shortage interruptions
Read More
$21,918.37
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SURT20KRMXLT Overview

Smart-UPS RT 20000VA Tower/Rack Mountable UPS provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Protect Your Product

Full specifications (PDF)

Technical Information
Plug/Connector Type:
Hard Wire 3-wire (2PH + G)
Receptacles:
  • 2 x NEMA L6-20R
  • 4 x NEMA L6-30R
  • 1 x Hard Wire 3-wire (2PH + G)
Bypass Switch:
  • Static
  • Internal
  • Automatic & Manual
  • External (Optional)
Emergency Power OFF:
Yes
Power Description
Load Capacity:
20 kVA/16 kW
Input Voltage:
220 V AC
Output Voltage:
208 V AC
Input Current:
114 A
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
Battery Information
Number of Batteries:
4
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
4.90 Minute
Backup/Run Time (Half Load):
15.30 Minute
Typical Battery Recharge Time:
2.50 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
21"
Width:
17"
Depth:
30.4"
Rack Height:
12U
Form Factor:
Rack/Tower
Weight (Approximate):
546.15 lb
Miscellaneous
Package Contents:
  • Smart-UPS RT 20000VA Tower/Rack Mountable UPS
  • CD with software
  • Rack Mounting support rails
  • Smart UPS signalling RS-232 cable
  • User Manual
  • Web/SNMP Management Card
Certifications & Standards:
  • UL 1449
  • UL 1778
  • UL
  • FCC
  • CE
  • C-Tick
Software Included:
PowerChute Management Software
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0731304266358
UPC: 731304266358
EAN: 0731304266358
UNSPSC: 39121011


The APC SURT20KRMXLT is also known as American Power Conversion APC-SURT20KRMXLT .
