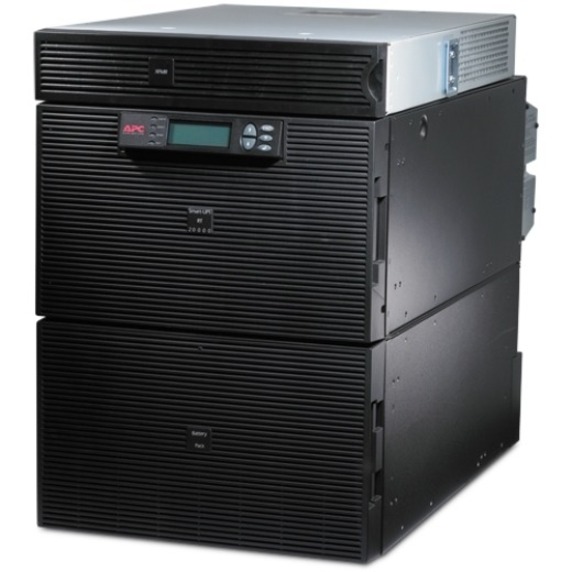

APC SURT20KRMXLT-TF5 Power Device

APC Accessories - Smart-UPS RT 20KVA RM 208V 208V/120V 5KVA Step Down Trans
$16,801.00
Temporarily out of stock; available to order
FREE SHIPPING OVER $49
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.

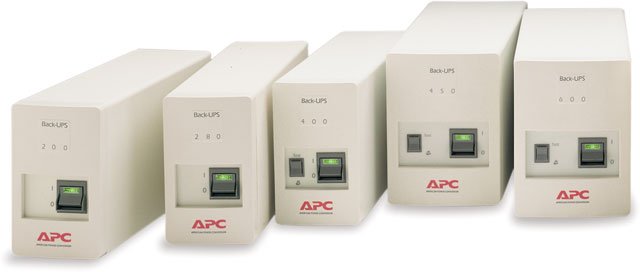

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

Technical Information

  • Receptacles:
    • 1 x Hard Wire 3-wire 2PH + G
    • 12 x NEMA 5-20R
    • 4 x NEMA L6-20R
    • 1 x NEMA L6-30R
  • Plug/Connector Type: Hard Wire 3-wire 2PH + G
  • Interfaces/Ports:
    • 1 x DB-9 RS-232 Serial
    • 1 x RJ-45 Network

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: RT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS RT 20kVA Tower/Rack Mountable UPS
  • Product Line: Smart-UPS

Physical Characteristics

  • Height: 24.5"
  • Width: 17"
  • Depth: 30.4"
  • Form Factor: 14U Tower/Rack Mountable
  • Weight (Approximate): 641.35 lb

Interfaces/Ports

  • Interfaces/Ports:
    • 1 x DB-9 RS-232 Serial
    • 1 x RJ-45 Network

Other

  • Package Contents:
    • Smart-UPS RT 20kVA Tower/Rack Mountable UPS
    • CD with software
    • Rack Mounting support rails
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Web/SNMP Management Card
    • 4 x Battery Modules
    • Smart-UPS RT 20kVA Tower/Rack Mountable UPS
    • CD with software
    • Rack Mounting support rails
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Web/SNMP Management Card
    • 4 x Battery Modules
  • Software Included: PowerChute Management Software

Power Description

  • Input Voltage Range:
    • 208 V AC Nominal
    • 160 V AC to 280 V AC Mains Operation
  • Load Capacity: 20 kVA/16 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC Nominal
  • Current: 105 A Maximum Input Current
  • Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time
  • Frequency: 40 to 70 Hz
  • Input Current: 105 A

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Static
    • Internal
    • Automatic & Manual
    • External (Optional)
  • Emergency Power OFF: Yes
  • Overload Protection: Resettable circuit breakers

Battery Information

  • Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.08 Hour 16 kW Full Load
    • 0.26 Hour 8 kW Half Load
  • Battery Recharge Time: 2.50 Hour

Scalability

  • Modules: 4 x Battery Module

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)



The APC SURT20KRMXLT-TF5 is also known as American Power Conversion APC-SURT20KRMXLTTF5 or SURT20KRMXLTTF5 .
