APC SURT20KRMXLT-1TF10K Accessory

Part Number: SURT20KRMXLT-1TF10K
Model: Back-UPS Series
Add to My Shopping List Add to Compare
$33,689.46
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
Hard Wire 3-wire
Receptacle Type
Hard Wire 4-wire (2PH+N+G)NEMA L5-20RNEMA L6-20RNEMA L6-30RNEMA L14-30R
Receptacle Detail
1 x Hard Wire 4-wire (2PH+N+G)2 x NEMA L5-20R4 x NEMA L6-20R2 x NEMA L6-30R2 x NEMA L14-30R
Number of Battery & Surge Outlets
11

Product Description:

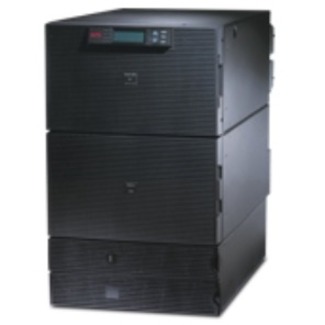

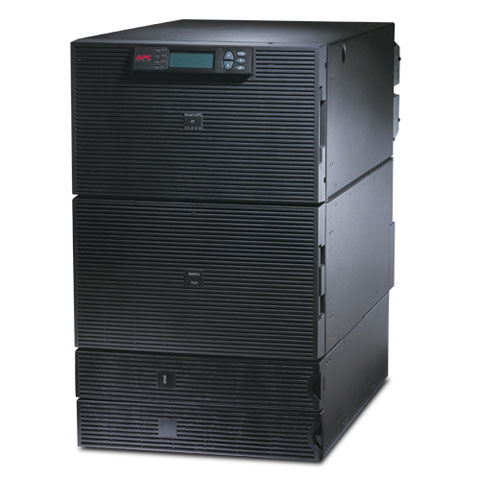

  APC Smart-UPS RT 20kVA Tower/Rack Mountable UPS - 4.9 Minute Full Load, 15.3 Minute Half Load - 20kVA - SNMP Manageable
Explore all APC Back-UPS Series Accessories
Add to Quote
APC SURT20KRMXLT-1TF10K Accessory
APC SURT20KRMXLT-1TF10K Accessory
APC SURT20KRMXLT-1TF10K Accessory
APC SURT20KRMXLT-1TF10K Accessory
APC SURT20KRMXLT-1TF10K Accessory
APC SURT20KRMXLT-1TF10K Accessory APC SURT20KRMXLT-1TF10K Accessory APC SURT20KRMXLT-1TF10K Accessory APC SURT20KRMXLT-1TF10K Accessory APC SURT20KRMXLT-1TF10K Accessory
Full specifications (PDF)

APC Back-UPS Series Accessory Model Overview

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SURT20KRMXLT-1TF10K Accessory Overview

High density, double-conversion on-line power protection with scalable runtime

More from the Manufacturer

Full specifications (PDF)
Technical Information
Plug/Connector Type:
Hard Wire 3-wire
Receptacle Type:
  • Hard Wire 4-wire (2PH+N+G)
  • NEMA L5-20R
  • NEMA L6-20R
  • NEMA L6-30R
  • NEMA L14-30R
Receptacle Detail:
  • 1 x Hard Wire 4-wire (2PH+N+G)
  • 2 x NEMA L5-20R
  • 4 x NEMA L6-20R
  • 2 x NEMA L6-30R
  • 2 x NEMA L14-30R
Number of Battery & Surge Outlets:
11
Overload Protection:
Yes
Power Description
Load Capacity (VA):
20 kVA
Input Voltage:
208 V AC
Output Voltage:
  • 120 V AC
  • 208 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
105 A
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Static
  • Internal
  • Automatic & Manual
  • External (Optional)
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
4.90 Minute
Backup/Run Time (Half Load):
15.30 Minute
Typical Battery Recharge Time:
2.50 Hour
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Rack-mountable
Rack Height:
16U
Mounting Location:
Front
Mounting Preference:
Lower
Height:
27.9"
Width:
17"
Depth:
30.4"
Weight (Approximate):
766.61 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
  • Smart-UPS RT 20kVA Tower/Rack Mountable UPS
  • CD with software
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • User manual
  • Web/SNMP management card
    • Certifications & Standards:
    Reference contains Substances of Very High Concern above the threshold
    Software Included:
    PowerChute Management Software
    Product Take Back Program:
    No
    RoHS Exemption Information:
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT1TF10K_ROHS_DECLARATION&p_FileName=SURT20KRMXLT1TF10KKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567070057&lang=en-us
    EU RoHS Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567070057&lang=en-us
    Environmental Profile Availability:
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2304008_V1
    End of Life Manual Availability:
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2304008_V1
    REACH free of SVHC:
    No
    Country of Origin:
    Philippines
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace
    Item Numbers
    GTIN: 0731304619352, 0737069009803
    UPC: 731304619352, 737069009803
    EAN: 0731304619352, 0737069009803
    UNSPSC: 39121011
