You've just added this product to the cart:

APC SURT15KRMXLT UPS

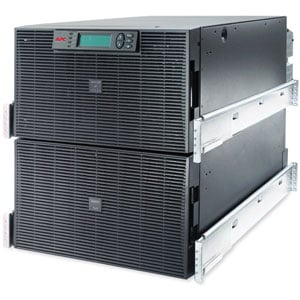

APC - Smart-UPS RT 15kVA Tower/Rack-mountable UPS - 8.3 Minute Full Load - 15kVA - SNMP Manageable
$18,276.64
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SURT15KRMXLT Overview

APC Smart-UPS RT 15kVA Tower/Rack-mountable UPS reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime. This UPS maximizes battery performance, life, and reliability through intelligent, precision charging. Also provides higher application availability by correcting poor frequency and voltage conditions without using the battery.

Protect Your Product

Full specifications (PDF)

Technical Information
Plug/Connector Type:
Hard Wire 3-wire
Receptacle Type:
  • Hard Wire 3-wire
  • NEMA L6-30R
  • NEMA L6-20R
Receptacle Detail:
  • 1 x Hard Wire 3-wire
  • 2 x NEMA L6-30R
  • 4 x NEMA L6-20R
Overload Protection:
Yes
Power Description
Load Capacity:
15 kVA/12 kW
Input Voltage:
220 V AC
Output Voltage:
208 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
85 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Automatic
  • External (Optional)
  • Manual
  • Static
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
Modular Slots:
SmartSlot
Battery Information
Battery Characteristics:
Maintenance-free/Sealed/Spill Proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
8.30 Minute
Backup/Run Time (Half Load):
22.40 Minute
Typical Battery Recharge Time:
2.50 Hour
Physical Characteristics
Form Factor:
Rack/Tower
Rack Height:
12U
Height:
21"
Width:
17"
Depth:
30"
Weight (Approximate):
545 lb
Miscellaneous
Package Contents:
  • Smart-UPS RT 15kVA Tower/Rack Mountable UPS
  • CD with Software
  • Rack Mounting Support Rails
  • Smart UPS Signaling RS-232 Cable
  • User Manual
  • Web/SNMP Management Card
  • 4 x Battery Modules
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0731304266341, 7313042663410
UPC: 731304266341
EAN: 0731304266341, 7313042663410
UNSPSC: 39121011


The APC SURT15KRMXLT is also known as American Power Conversion APC-SURT15KRMXLT .
