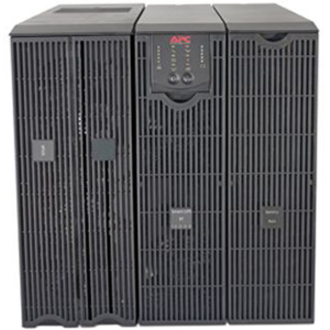

APC SURT10000XLT-1TF10K Power Device

APC Accessories - Smart-UPS RT 10,000VA 208V (with 208V to 120V Step-Down Tran)
APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

Technical Information

  • Receptacles:
    • 2 x Hard Wire 3-wire 2PH + G - Backup/Surge-protected
    • 1 x Hard Wire 4-wire 2PH + N + G - Backup/Surge-protected
    • 2 x NEMA L14-30R - Backup/Surge-protected
    • 2 x NEMA L5-20R - Backup/Surge-protected
    • 2 x NEMA L6-20R - Backup/Surge-protected
    • 2 x NEMA L6-30R - Backup/Surge-protected
  • Plug/Connector Type: Hard Wire 3-wire 2PH + G
  • Interfaces/Ports:
    • DB-9 RS-232
    • RJ-45

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: RT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Model: SURT10000XLT-1TF10K
  • Product Name: Smart-UPS RT 10kVA Tower UPS
  • Product Line: Smart-UPS

Physical Characteristics

  • Height: 17"
  • Width: 17.3"
  • Depth: 26"
  • Form Factor: Tower
  • Weight (Approximate): 465 lb

Interfaces/Ports

  • Modular Slots: SmartSlot
  • Interfaces/Ports:
    • DB-9 RS-232
    • RJ-45

Other

  • Package Contents:
    • Smart-UPS RT 10kVA Tower UPS
    • CD with software
    • Service Manual
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS RT 10kVA Tower UPS
    • CD with software
    • Service Manual
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Web/SNMP Management Card
  • Additional Information: Supports both Tower and Rack-mountable configurations but does not include rack mounting kit

Power Description

  • Input Voltage Range:
    • 208 V AC Nominal
    • 160 V AC to 280 V AC Mains Operation
  • Load Capacity: 10 kVA/8 kW
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC Nominal
  • Frequency:
    • 50 Hz
    • 60 Hz

Battery Information

  • Batteries: Spill-proof, Maintenance-free Sealed Lead Acid
  • Backup/Run Time:
    • 0.07 Hour 8 kW Full Load
    • 0.22 Hour 4 kW Half Load
  • Battery Recharge Time: 2.20 Hour Typical

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch: Internal
  • Emergency Power OFF: Yes

Warranty

  • Limited Warranty: 2 Year
  • Parts Warranty/Labor: 2 Year

Scalability

  • Modules: 4 x Battery Module

Full specifications (PDF)



The APC SURT10000XLT-1TF10K is also known as American Power Conversion APC-SURT10000XLT1TF1 or SURT10000XLT1TF10K .
