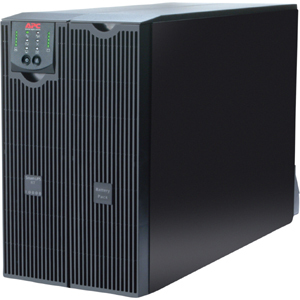

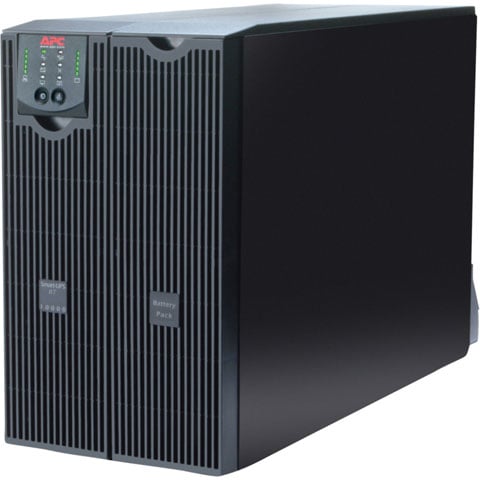

APC SURT10000XLI UPS

APC - Smart-UPS RT 10000VA 230V
APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.

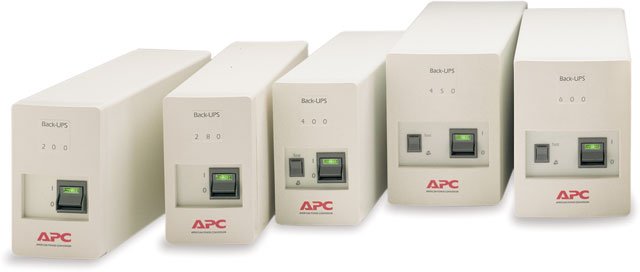

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

Technical Information

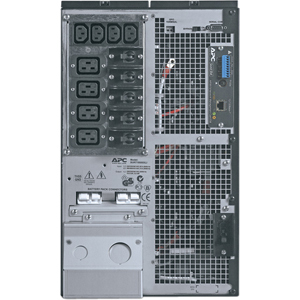

  • Receptacles:
    • 1 x Hard Wire 3-wire H N + G - Backup/Surge-protected
    • 4 x IEC 320-C13 - Backup/Surge-protected
    • 4 x IEC 320-C19 - Backup/Surge-protected
    • 4 x IEC Jumper - Backup/Surge-protected
  • Plug/Connector Type:
    • Hard Wire 3-wire PH + PH + G
    • Hard Wire 5-wire 3PH + N + G

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: RT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS RT 10kVA Rack/Tower convertible
  • Product Line: Smart-UPS

Physical Characteristics

  • Height: 17"
  • Width: 10"
  • Depth: 26"
  • Form Factor: 6U Tower/Rack Mountable
  • Weight (Approximate): 244 lb
  • Color: Black

Interfaces/Ports

  • Modular Slots: SmartSlot

Other

  • Package Contents:
    • Smart-UPS RT 10kVA Rack/Tower convertible
    • CD with software
    • Service Manual
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS RT 10kVA Rack/Tower convertible
    • CD with software
    • Service Manual
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Web/SNMP Management Card
  • Certifications & Standards:
    • UL 1449
    • C-tick
    • EN 50091-1
    • EN 50091-2
    • EN 55022 Class A
    • EN 60950
    • EN 61000-3-2
    • GOST
    • PCBC
    • VDE
  • Additional Information:
    • Efficiency at full load: 92 %
    • Output Voltage Distortion: Less than 3%
    • Crest Factor: 3 : 1
    • Replacement battery cartridge quantity: 2
    • Units per Pallet: 1
    • Automatic restart of loads after UPS shutdown
    • Disconnected battery notification
    • Generator compatible
    • InfraStruXure Manager Compatible
    • Plug-and-Play external batteries

Power Description

  • Input Voltage Range:
    • 230 V AC Nominal
    • 160 V AC to 280 V AC Mains Operation
  • Load Capacity: 10 kVA/8 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 220 V AC Nominal
    • 230 V AC Nominal
    • 240 V AC Nominal
  • Filtering: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time
  • Frequency:
    • 50 Hz
    • 60 Hz
  • Waveform Type: Sine Wave

Environmental Conditions

  • Altitude:
    • 0 ft to 10000 ft Operating
    • 0 ft to 50000 ft Storage
  • Humidity:
    • 0 to 95% Relative Humidity Operating
    • 0 to 95% Relative Humidity Storage
  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • 5°F (-15°C) to 113°F (45°C) Storage
  • Thermal Dissipation: 2216 BTU/h
  • Sound Emission: 55 dB(A)

Management

  • Network Management: SNMP Manageable
  • Battery Management: Intelligent Battery Management
  • Alarm:
    • On Battery
    • Low Battery
    • Overload
  • Bypass Switch: Automatic & Manual
  • Emergency Power OFF: Yes
  • Overload Protection: Resettable circuit breakers

Controls/Indicators

  • Status Indicators:
    • Load bar-graphs
    • Battery bar-graphs
    • On Line
    • On Battery
    • Replace Battery
    • Overload
    • Bypass

Battery Information

  • Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.07 Hour 8 kW Full Load
    • 0.22 Hour 4 kW Half Load

Warranty

  • Limited Warranty: 2 Year
  • Parts Warranty/Labor: 2 Year

Scalability

  • Modules: 4 x Battery Module

Full specifications (PDF)



The APC SURT10000XLI is also known as American Power Conversion APC-SURT10000XLI .
