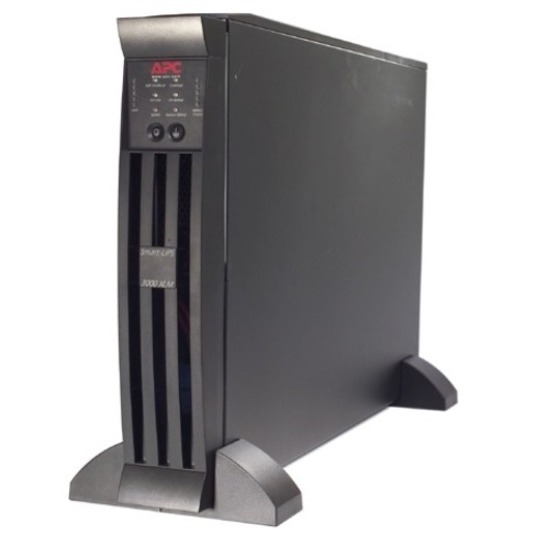

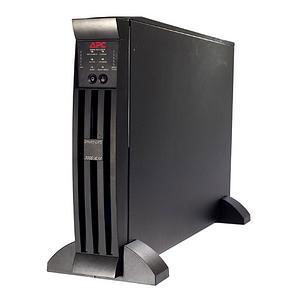

APC SUM3000RMXLI2U UPS

APC Back-UPS Series - APC Smart-UPS XL 3000VA Rack Mountable/Tower - 3000VA/2850W - 3.5 Minute Full Load - 7 x IEC 320-C13 - Battery/Surge-protected, 1 x IEC 320-C19 - Battery/Surge-protected, 4 x - Battery/Surge-protected
  • Automatic internal bypass - Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
  • Modular design - Enables IT projects that were previously infeasible or cost-prohibitive.
  • Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • USB connectivity - Provides management of the UPS via a USB port (not available on all models).
Read More
$4,861.54
Add to Quote
APC Back-UPS Series Accessory Model Overview
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SUM3000RMXLI2U UPS Overview

APC Smart-UPS XL 3000VA protects your data by supplying reliable, network-grade power with scalable run-time in tower and rack mount form factors. With optional, matching battery packs, run-time can be easily extended and optimized for the application. APC understands long run-time requirements so; Smart-UPS XL's can be configured with up to 10 additional battery packs - for run-times exceeding 24 hours, if necessary. The convergence of voice and data networks is placing higher demands on availability expectations - and the Smart-UPS XL delivers. Voice over Internet Protocol (VoIP), e-commerce, WiFi ("hotspots", WLAN/ WWAN, and mixed wireless), and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for fileservers (Intel or UNIX based), minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime.

Technical Information
Plug/Connector Type:
IEC 320-C20

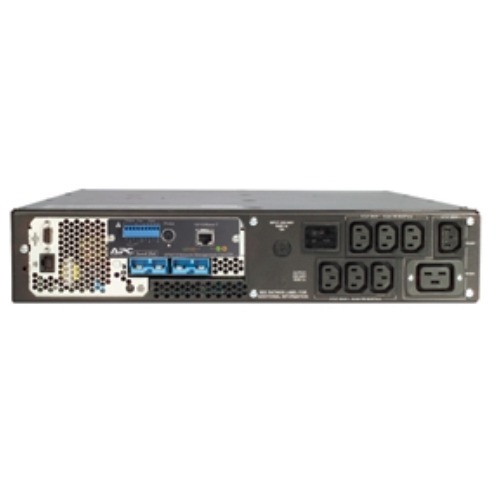

Receptacles:
  • 7 x IEC 60320 C19
  • 1 x IEC 60320 C13
  • 4
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Optional
Cord Length:
10 ft
Power Description
Load Capacity:
3000 VA/2850 W
Input Voltage:
220 V AC
Output Voltage:
240 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
490 J
Management
Alarm:
  • On Battery
  • Low Battery
  • Configurable Delay
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:
  • Load Bar-graphs
  • Battery Bar-graphs
  • On Line
  • On Battery
  • Replace Battery
  • Overload
  • Bypass
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
USB:
Yes
Battery Information
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
3.50 Minute
Backup/Run Time (Half Load):
11.90 Minute
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Thermal Dissipation:
87.92 W
Physical Characteristics
Color:
Black
Height:
3.4"
Width:
17"
Depth:
26.7"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
103 lb
Miscellaneous
Package Contents:
  • Smart-UPS XL 3000VA Rack Mountable/Tower
  • CD with software
  • Rack Mounting Brackets
  • Rack Mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB Cable
  • User Manual
Additional Information:
  • Replacement battery cartridge: 1
  • Battery Modules Shipped with Unit: 1
  • Efficiency at full load: 89%
  • Output Voltage Distortion: Less than 5% at full load
  • Crest Factor: up to 5:1
  • Units per Pallet: 8
  • Adjustable voltage sensitivity
  • Adjustable voltage-transfer points
  • Automatic restart of loads after UPS shutdown
  • Automatic self-test
  • Boost and Trim Automatic Voltage Regulation (AVR)
  • Cold-start capable
  • Disconnected battery notification
  • Generator compatible
  • Scalable runtime
Certifications & Standards:
  • C-tick
  • CE
  • EN 50091-2
  • EN 55022 Class A
  • EN 61000-3-2
  • GOST
  • UL 1449
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0731304224501, 0731304224570
UPC: 731304224501, 731304224570
EAN: 0731304224501, 0731304224570
UNSPSC: 39121011
