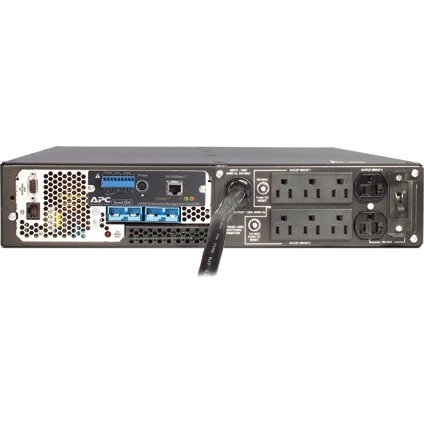

APC SUM3000RMXL2U UPS

APC - APC Smart-UPS XL Modular 3000VA Rackmount/Tower - 3000VA/2850W - 3.5 Minute Full Load - 2 x NEMA 5-20R - Surge-protected, 6 x NEMA 5-15R - Surge-protected

Line-interactive UPS provides optimal and uninterrupted power supply for maximum usability
Up to 3.50 minute runtime on full load to preserve critical data from power shortage interruptions
Lead Acid battery chemistry for your convenience and better usability
NEMA L5-30P plug/connector type for maximum usability with added reliability
NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
110 V AC input voltage for better reliance and maximum dependability
120 V AC output voltage for optimal performance with maximum feasibility
Rack/Tower form factor for your convenience and simplicity of usage

Need a different version? See all APC Parts Accessories

$4,227.86

Add to Quote

Overview

APC Parts Accessory Model Overview

Products and parts from APC.

APC SUM3000RMXL2U UPS Overview

Smart-UPS XL Modular 3000VA Rackmount/Tower is high performance power protection with scalable runtime for servers, and voice and data networks. Voice over Internet Protocol, e-commerce, WiFi, and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for fileservers minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime. With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management. Connectivity is through a serial or USB port. Additional manageability is available through the SmartSlot. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. The Smart-UPS XL is a UPS you can count on.

Detailed Specs

Technical Information

Plug/Connector Type:

NEMA L5-30P

Receptacles:

2 x NEMA 5-15R
6 x NEMA 5-20R

Bypass Switch:

Automatic & Manual

Emergency Power OFF:

Optional

Cord Length:

10 ft

Power Description

Load Capacity:

3000 VA/2850 W

Input Voltage:

110 V AC

Output Voltage:

120 V AC

Surge Energy Rating:

540 J

Management

Network Management:

SNMP Manageable

Alarm:

On Battery
Low Battery
Configurable Delay

Battery Management:

Intelligent Battery Management

Controls/Indicators

Status Indicators:

LED status display with:

Load Bar-graphs
Battery Bar-graphs
On Line
On Battery
Replace Battery
Overload
Bypass

Interfaces/Ports

Serial Port:

Yes

Network (RJ-45):

Yes

USB:

Yes

Battery Information

Battery Chemistry:

Sealed Lead Acid (SLA)

Backup/Run Time (Full Load):

3.50 Minute

Backup/Run Time (Half Load):

11.90 Minute

Hot Swappable:

Yes

Environmental Conditions

Maximum Operating Temperature:

131°F (55°C)

Sound Emission:

55 dB(A)

Thermal Dissipation:

87.92 W

Physical Characteristics

Color:

Black

Height:

3.4"

Width:

17"

Depth:

26.7"

Rack Height:

Form Factor:

Rack/Tower

Weight (Approximate):

103 lb

Miscellaneous

Package Contents:

Smart-UPS XL Modular 3000VA Rackmount/Tower
CD with software
Installation Guide
Rack Mounting brackets
Rack Mounting support rails
Smart UPS signalling RS-232 cable
USB cable
User Manual
Web/SNMP Management Card

Additional Information:

Replacement battery cartridge quantity: 1
Units per Pallet: 8
Adjustable voltage-transfer points
Automatic Voltage Regulation (AVR)
Disconnected battery notification
Modular design

Certifications & Standards:

UL 1449
UL 1778
BSMI
CSA
FCC Part 15 Class A
NOM
VCCI

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0611101305248, 0731304224563, 4943783194732, 4963273167138

UPC: 611101305248, 731304224563

EAN: 0611101305248, 0731304224563, 4943783194732, 4963273167138

UNSPSC: 39121011
