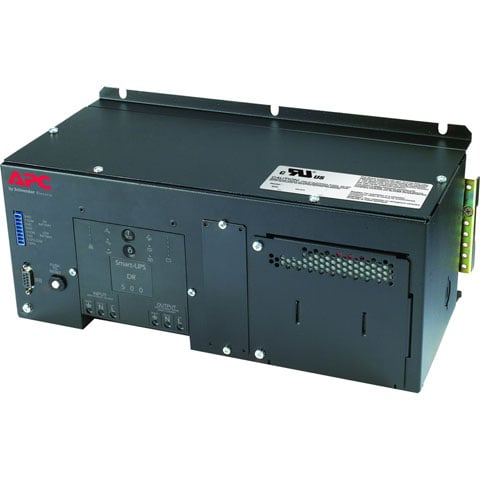

APC SUA500PDR-S UPS

Part Number: SUA500PDR-S
Model: Replacement Batteries
Add to My Shopping List Add to Compare
$864.59

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
Hard Wire 3 wire (1PH+N+G)
Receptacle Type
Hard Wire 3-wire (H N + G)
Receptacle Detail
1 x Hard Wire 3-wire (H N + E)
Number of Battery & Surge Outlets
1

Product Description:

  APC by Schneider Electric Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V - 2.50 Hour Recharge - 8 Minute Stand-by - 110 V AC Input - 120 V AC Output - 1 x Hard Wire 3-wire (H N + G)
Explore all APC Replacement Batteries Accessories
Add to Quote
APC SUA500PDR-S UPS
APC SUA500PDR-S UPS
APC SUA500PDR-S UPS APC SUA500PDR-S UPS

APC Replacement Batteries Accessory Model Overview

Replacement batteries for APC products.
APC SUA500PDR-S UPS Overview

24V DC UPS designed specifically for industrial automation and controls. This 325W UPS comes with hardwire input/output and can be mounted on a DIN Rail or any control panel. It features temperature-compensated battery charging that helps prolong the battery life. It comes with a 2-year standard warranty.

More from the Manufacturer

Technical Information
Plug/Connector Type:
Hard Wire 3 wire (1PH+N+G)
Receptacle Type:
Hard Wire 3-wire (H N + G)
Receptacle Detail:
1 x Hard Wire 3-wire (H N + E)
Number of Battery & Surge Outlets:
1
Emergency Power OFF:
Yes
Cord Length:
8.01 ft
Power Description
Load Capacity (VA):
500 VA
Load Capacity (Watt):
325 W
Input Voltage:
120 V
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
540 J
Interfaces/Ports
Serial Port:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free, Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
8 Minute
Backup/Run Time (Half Load):
24 Minute
Typical Battery Recharge Time:
2 Hour
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
5.8"
Width:
14.3"
Depth:
6.7"
Rack Height:
1U
Form Factor:
Tower
Mounting Preference:
No Preference
Weight (Approximate):
28.35 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
  • Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V
  • CD with software
  • Documentation CD
  • Installation guide
  • Smart UPS signalling RS-232 cable
    • Certifications & Standards:
    UL Recognized
    Optimized Energy Efficiency:
    Yes
    Product Take Back Program:
    No
    Mercury Free:
    Yes
    RoHS Exemption Information:
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA500PDR-S_ROHS_DECLARATION&p_FileName=SUA500PDR-SKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194164&lang=en-us
    EU RoHS Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194164&lang=en-us
    Environmental Profile Availability:
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
    End of Life Manual Availability:
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
    California Proposition 65 Warning:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACH free of SVHC:
    No
    WEEE Statement:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Country of Origin:
    Philippines
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace
    Item Numbers
    GTIN: 0063115813897, 0731304733010
    UPC: 063115813897, 731304733010
    EAN: 0063115813897, 0731304733010
    UNSPSC: 39121011
