APC SUA3000I Accessory

Part Number: SUA3000I
Model:

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
IEC 320-C20Schuko CEE 7EU1-16PBritish BS1363A
Receptacles
8 x IEC 60320 C131 x IEC 60320 C193
Emergency Power OFF
Yes
Load Capacity
3000 VA/2700 W

Product Description:

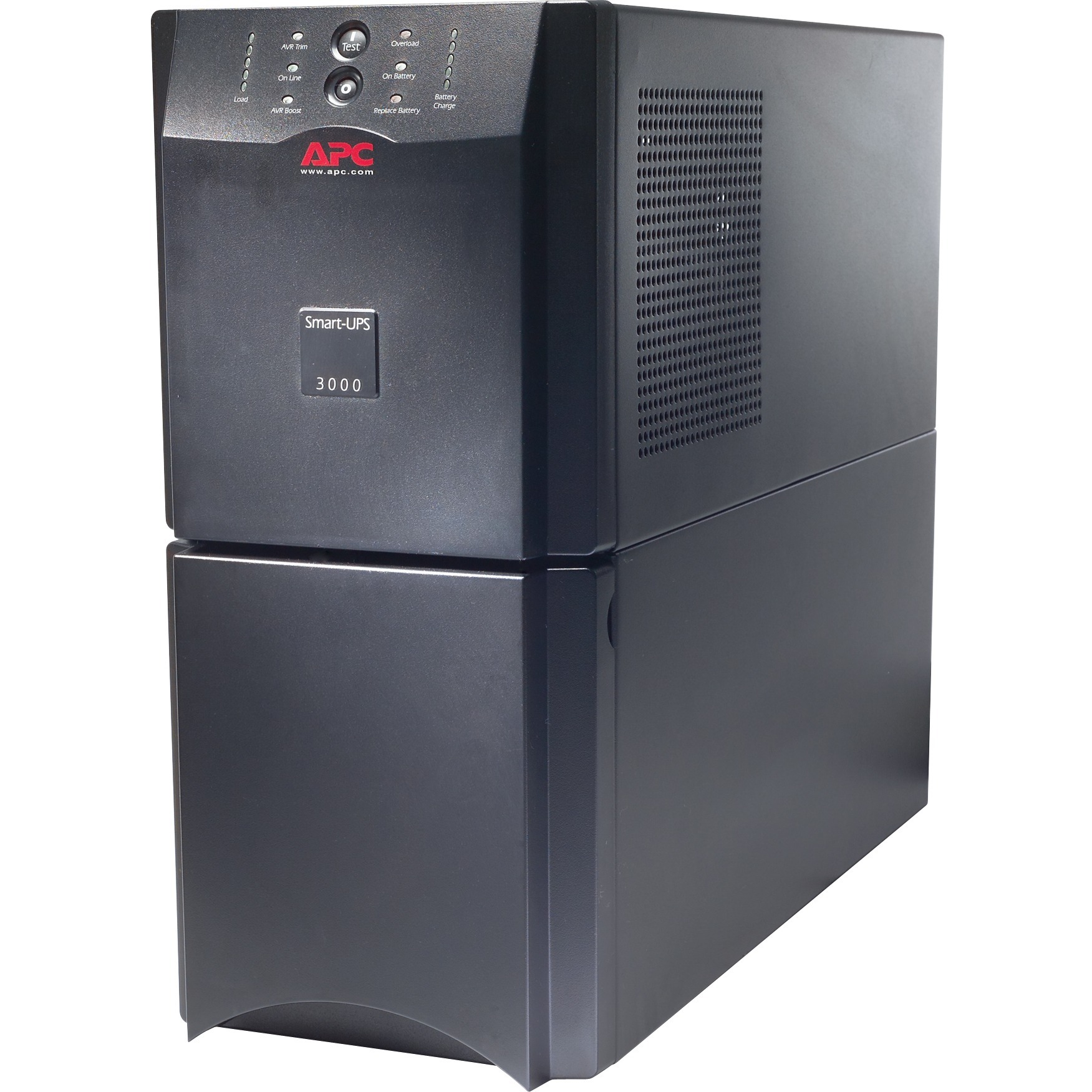

  APC Smart-UPS 3000VA - 3000VA/2700W - 5.5 Minute Full Load - 8 x IEC 320-C13, 1 x IEC 320-C19, 3

APC Parts Accessory Model Overview

Products and parts from APC.
APC SUA3000I Accessory Overview

APC Smart-UPS 3000VA is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (All major operating systems supported). Connectivity is through serial or USB port. Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS 3000VA is a UPS you can count on.

Technical Information
Plug/Connector Type:
  • IEC 320-C20
  • Schuko CEE 7
  • EU1-16P
  • British BS1363A
Receptacles:
  • 8 x IEC 60320 C13
  • 1 x IEC 60320 C19
  • 3
Emergency Power OFF:
Yes
Power Description
Load Capacity:
3000 VA/2700 W
Input Voltage:
220 V AC
Output Voltage:
  • 240 V AC
  • 230 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
320 J
Management
Alarm:
  • On Battery
  • Low Battery
  • Configurable Delay
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:

LED display with:

  • Load bar-graphs
  • Battery bar-graphs
  • On Line
  • On Battery
  • Replace Battery
  • Overload
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
5.50 Minute
Backup/Run Time (Half Load):
13.60 Minute
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Thermal Dissipation:
109.90 W
Physical Characteristics
Color:
Black
Height:
17"
Width:
8"
Depth:
22"
Form Factor:
Tower
Weight (Approximate):
123 lb
Miscellaneous
Package Contents:
  • Smart-UPS 3000VA
  • CD with software
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User Manual
Additional Information:
  • Adjustable voltage sensitivity
  • Automatic restart of loads after UPS shutdown
  • Automatic self-test
  • Boost and Trim Automatic Voltage Regulation
  • Cold-start capable
  • Power conditioning
  • Temperature-compensated battery charging
Certifications & Standards:
  • UL 1449
  • C-tick
  • CE
  • EN 50091-1
  • EN 50091-2
  • GOST
  • PCBC
  • VDE
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0731304216841
UPC: 731304216841
EAN: 0731304216841
UNSPSC: 39121011
The APC SUA3000I Accessory is also known as APC-SUA3000I
