APC SUA2200XL UPS

Part Number: SUA2200XL
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-20P
Receptacles
9 x NEMA 5-15R2 x NEMA 5-20R
Emergency Power OFF
Optional
Load Capacity
2200 VA/1850 W

Product Description:

  APC Smart-UPS XL 2200VA Tower/Rack-mountable - 2200VA/1850W - 10.4 Minute Full Load - 9 x NEMA 5-15R, 2 x NEMA 5-20R

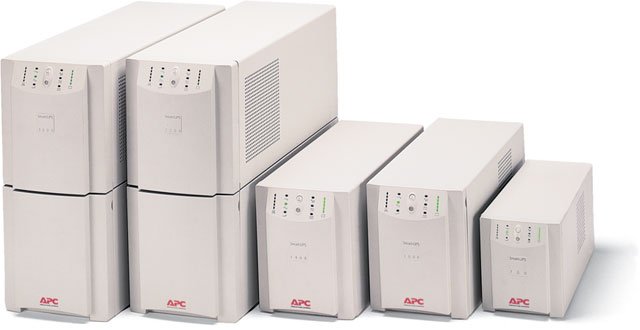

APC Smart-UPS Series Accessory Model Overview

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.
APC SUA2200XL UPS Overview

Smart-UPS XL 2200VA Tower/Rack-mountable protects your data by supplying reliable, network-grade power and scalable runtime in tower or rack-mount form factors. The Smart-UPS XL adds the advantage of unsurpassed runtime capability for those business applications that demand continual uptime.

Technical Information
Plug/Connector Type:
NEMA 5-20P
Receptacles:
  • 9 x NEMA 5-15R
  • 2 x NEMA 5-20R
Emergency Power OFF:
Optional
Power Description
Load Capacity:
2200 VA/1850 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Number of Batteries:
1
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
10.40 Minute
Backup/Run Time (Half Load):
28.50 Minute
Typical Battery Recharge Time:
3 Hour
Physical Characteristics
Height:
17.5"
Width:
8.7"
Depth:
19.5"
Rack Height:
5U
Form Factor:
Tower
Weight (Approximate):
137 lb
Miscellaneous
Package Contents:
  • Smart-UPS XL 2200VA Tower/Rack-mountable
  • CD with software
  • Smart UPS signaling RS-232 cable
  • USB cable
  • User manual
Certifications & Standards:
  • UL 1449
  • CSA
  • FCC Part 15 Class A
  • UL 1778
Software Included:
PowerChute Management Software
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0731304230946
UPC: 731304230946
EAN: 0731304230946
UNSPSC: 39121011
