Plug/Connector Type:
NEMA 5-20P
Receptacles:
- 6 x NEMA 5-15R
- 2 x NEMA 5-20R
Emergency Power OFF:
Yes
Cord Length:
8 ft

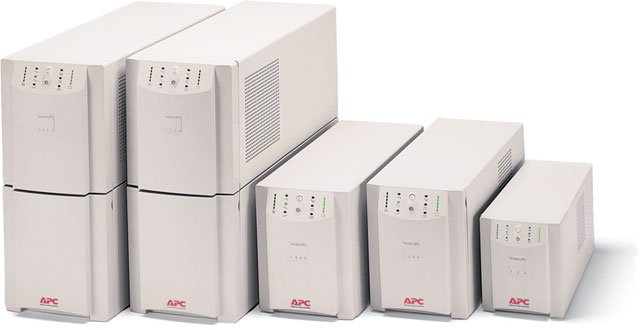

APC Smart-UPS Series Accessory Model Overview
Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.

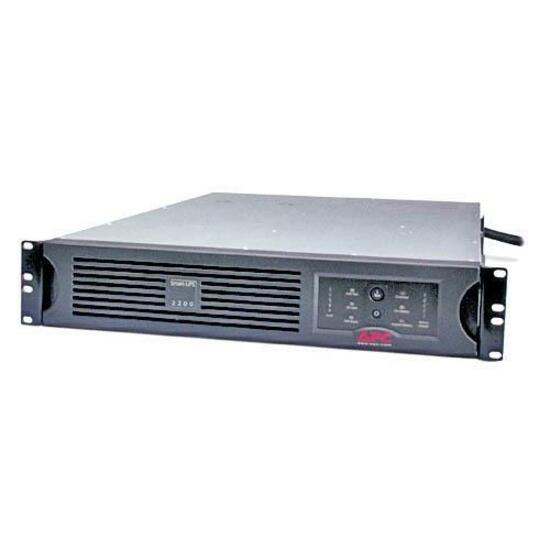

APC SUA2200RM2U UPS Overview
This product is New, Factory Sealed, and Guaranteed Authentic
Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers, minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers, minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
Technical Information
Power Description
Load Capacity:
2200 VA/1980 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
480 J
Management
Alarm:
- On Battery
- Low Battery
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:
LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery and Overload Indicators.
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
5.20 Minute
Backup/Run Time (Half Load):
15.70 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Thermal Dissipation:
87.92 W
Physical Characteristics
Color:
Black
Height:
3.5"
Width:
19"
Depth:
26"
Rack Height:
2U
Weight (Approximate):
96 lb
Miscellaneous
Package Contents:
- CD with software (PowerChute Smart-UPS Bundle)
- Country-specific detachable power cord
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
Additional Information:
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Building wiring fault indicator
- Lightning and Surge Protection
- Load Meter
- Network-grade line conditioning
- Wide input voltage range
Certifications & Standards:
- BSMI
- CSA
- UL 1778
- FCC Part 15 Class A
- UL 1449
Warranty
Additional Warranty Information:
Product does not ship from original manufacturer Product may not be eligible for original manufacturer warranty, rebates or programs Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems ) Product ships from IMSourcing facility within 2-3 days or from stock BULK, REF, and NOB Product may ship in non-standard packaging All returns processed directly from IMSourcing Where applicable, -RF or -IM indicates an IMSourcing certified pre-owned product
Item Numbers
UNSPSC:
39121011
