Plug/Connector Type:
NEMA 5-15P
Receptacles:
8 x NEMA 5-15R
Emergency Power OFF:
Yes
Cord Length:
6 ft

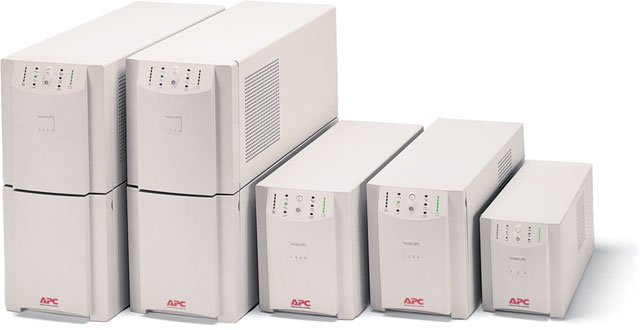

APC Smart-UPS Series Accessory Model Overview
Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.

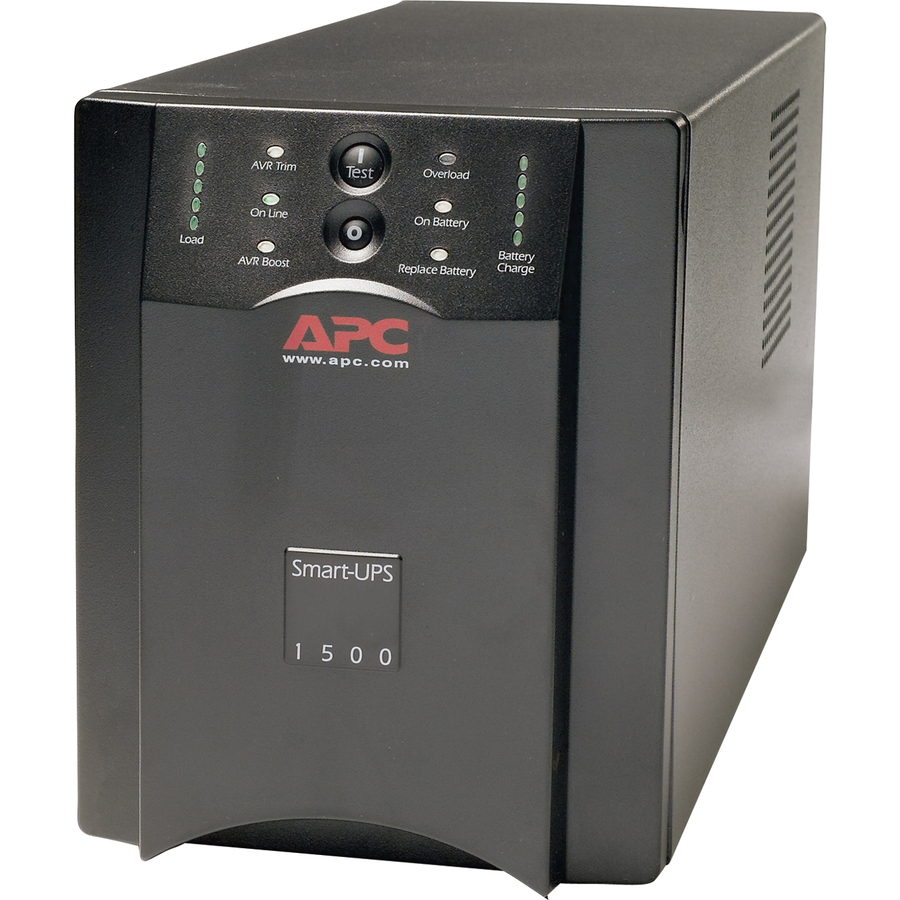

APC SUA1500 UPS Overview
This product is New, Factory Sealed, and Guaranteed Authentic
APC Smart-UPS® 1500VA protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS® 1500VA is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
With included PowerChute® management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (All major operating systems supported). Connectivity is through serial or USB port (USB not standard on all models). Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS® is a UPS you can count on.
APC Smart-UPS® 1500VA protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS® 1500VA is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
With included PowerChute® management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (All major operating systems supported). Connectivity is through serial or USB port (USB not standard on all models). Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS® is a UPS you can count on.
Technical Information
Power Description
Load Capacity:
1440 VA
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Power Consumption:
980 W
Waveform Type:
Sine Wave
Surge Energy Rating:
459 J
Management
Alarm:
- On Battery
- Low Battery
Controls/Indicators
Status Indicators:
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
6.70 Minute
Backup/Run Time (Half Load):
23.90 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Sound Emission:
45 dB(A)
Thermal Dissipation:
39.56 W
Physical Characteristics
Color:
Black
Height:
8.5"
Width:
6.7"
Depth:
17.3"
Weight (Approximate):
53 lb
Miscellaneous
Package Contents:
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- USB cable
Additional Information:
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Building wiring fault indicator
- Load Meter
- Network-grade line conditioning
- Overload Indicator
- Replace Batt Indicator
- Software
- User Replaceable batteries
- Units per Pallet: 24.0
Certifications & Standards:
- BSMI
- CSA
- FCC Part 15 Class A
- UL 1778
- UL 1449
Warranty
Additional Warranty Information:
Product does not ship from original manufacturer Product may not be eligible for original manufacturer warranty, rebates or programs Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems ) Product ships from IMSourcing facility within 2-3 days or from stock BULK, REF, and NOB Product may ship in non-standard packaging All returns processed directly from IMSourcing Where applicable, -RF or -IM indicates an IMSourcing certified pre-owned product
Item Numbers
UNSPSC:
39121011
Get help from a Barcoding Expert!
The APC SUA1500 UPS is also known as
APC-SUA1500
