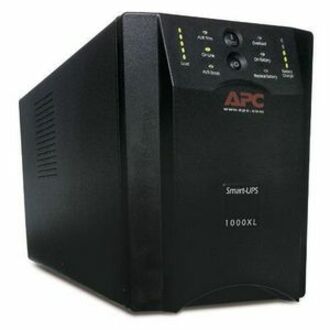

APC SUA1000XL UPS

APC SUA 1000 - Output Power Capacity: 800 Watts / 1000 VA, Nominal Output Voltage: 120V, Typical recharge time: 2 hour (s), Interface Port (s): DB-9 RS-232, SmartSlot, USB. Color: black.
Please Call for Pricing
or to Purchase

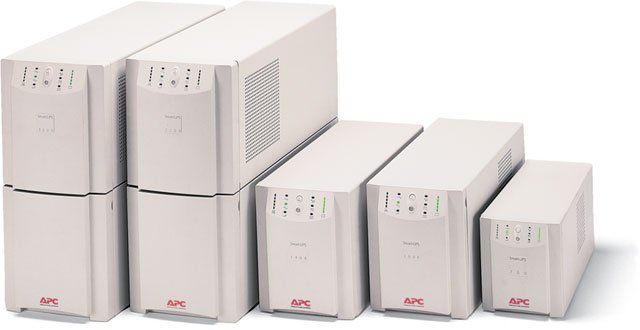

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails.

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.

General Information

  • Product Type: Line-interactive UPS
  • Product Series: XL
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS XL 1000VA
  • Product Line: Smart-UPS

Technical Information

  • Receptacles: 8 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Cord Length: 6 ft
  • Emergency Power OFF: Optional

Physical Characteristics

  • Height: 8.5"
  • Width: 6.7"
  • Depth: 17.3"
  • Weight (Approximate): 42 lb
  • Color: Black

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Total Number of Expansion Slots: 1

Other

  • Package Contents:
    • CD with software
    • Smart UPS signalling RS-232 cable
    • User Manual
    • USB cable
    • CD with software
    • Smart UPS signalling RS-232 cable
    • User Manual
    • USB cable
  • Certifications & Standards:
    • BSMI
    • CSA
    • FCC Part 15 Class A
    • UL 1778
  • Additional Information:
    • Automatic Self Test
    • Automatic Voltage Regulation (AVR)
    • Building wiring fault indicator
    • Load Meter
    • Network-grade line conditioning
    • Replace Batt Indicator
    • Scalable Run Time
    • Software
    • User Replaceable batteries
    • Wide input voltage range

Power Description

  • Load Capacity (VA): 1000 VA
  • Power Consumption: 800 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC
  • Surge Energy Rating: 459 J
  • Waveform Type: Sine Wave

Battery Information

  • Maximum Battery Recharge Time: 5 Hour
  • Backup/Run Time (Half Load): 33.30 Minute
  • Backup/Run Time (Full Load): 9.60 Minute
  • Battery Characteristics: Maintenance-free
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Management

  • Battery Management: Intelligent Battery Management
  • Alarm:
    • On Battery
    • Low Battery

Environmental Conditions

  • Temperature: 113°F (45°C)
  • Thermal Dissipation: 120 BTU/h
  • Sound Emission: 42 dB(A)

Controls/Indicators

  • Status Indicators: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Warranty

  • Limited Warranty: 2 Year
Brand APC
Model Smart-UPS Series


The APC SUA1000XL is also known as American Power Conversion APC-SUA1000XL .
