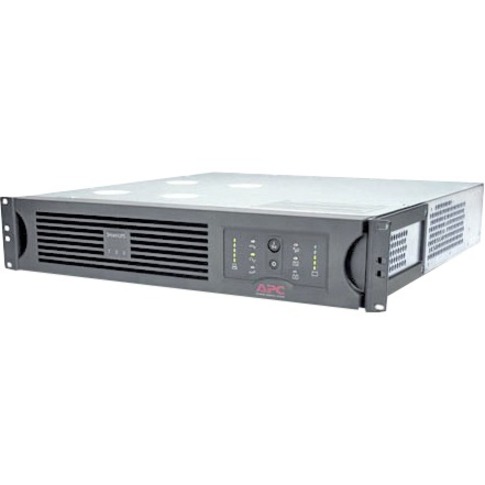

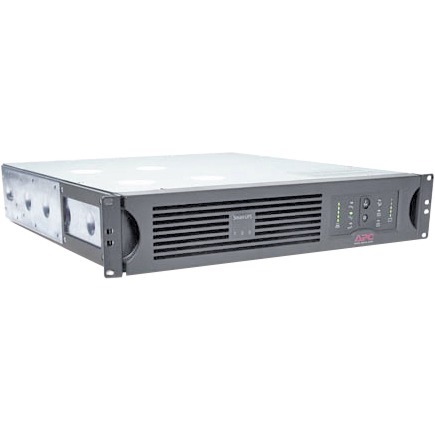

APC SUA1000RMI2U UPS

Part Number: SUA1000RMI2U
Model:
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
IEC 320-C14
Receptacles
4 x IEC 60320 C132
Emergency Power OFF
Optional
Load Capacity
1000 VA/670 W

Product Description:

  APC Smart-UPS 1000VA - 1000VA/670W - 9.1 Minute Full Load - 4 x IEC 320-C13, 2
Explore all APC Parts Accessories
Add to Quote
APC SUA1000RMI2U UPS
APC SUA1000RMI2U UPS
APC SUA1000RMI2U UPS
APC SUA1000RMI2U UPS
APC SUA1000RMI2U UPS APC SUA1000RMI2U UPS APC SUA1000RMI2U UPS APC SUA1000RMI2U UPS

APC Parts Accessory Model Overview

Products and parts from APC.
APC SUA1000RMI2U UPS Overview
Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
Technical Information
Plug/Connector Type:
IEC 320-C14
Receptacles:
  • 4 x IEC 60320 C13
  • 2
Emergency Power OFF:
Optional
Power Description
Load Capacity:
1000 VA/670 W
Input Voltage:
220 V AC
Output Voltage:
230 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
480 J
Management
Alarm:
  • On Battery
  • Low Battery
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:
LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery and Overload Indicators.
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
9.10 Minute
Backup/Run Time (Half Load):
31.60 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Sound Emission:
36 dB(A)
Thermal Dissipation:
26.08 W
Physical Characteristics
Color:
Black
Height:
3.5"
Width:
19"
Depth:
18"
Rack Height:
2U
Weight (Approximate):
62 lb
Miscellaneous
Package Contents:
  • CD with software (PowerChute Smart-UPS Bundle)
  • Rack Mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User Manual
  • Smart-UPS
Additional Information:
  • Automatic Self Test
  • Automatic Voltage Regulation (AVR)
  • Load Meter
  • Network-grade line conditioning
  • Wide input voltage range
  • Configurable for 220, 230 or 240 nominal output voltage
Certifications & Standards:
  • C-tick
  • EN 50091-1
  • EN 50091-2
  • GOST
  • VDE
  • UL 1449
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0731304197270
UPC: 731304197270
EAN: 0731304197270
UNSPSC: 39121011
The APC SUA1000RMI2U UPS is also known as APC-SUA1000RMI2U
