APC SUA1000 UPS


0.0

(No reviews)

Be the first to

Write a Review
APC SUA 1000 - SUA 1000, 1000VA/670W, 120 volt battery backup & surge protector. Includes DSL compatible phone/fax/modem line protection, RS-232 & USB interfaces, RS-232 & USB cables, PowerChute+ software, smartslot & user's manual.

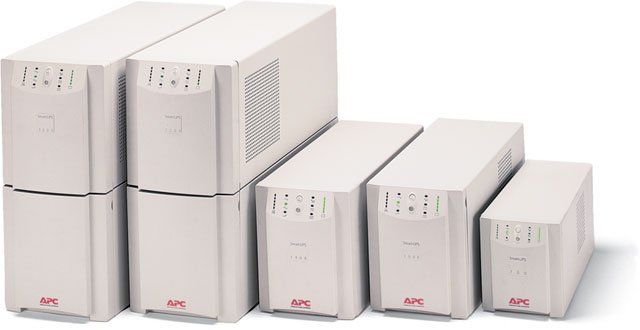

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails.

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.

General Information

  • Product Type:
    • Line-interactive UPS
    • Line-interactive UPS
  • Brand Name:
    • APC
    • APC
  • Manufacturer:
  • Product Name:
    • Smart-UPS 1000VA
    • Smart-UPS 1000VA
  • Product Line:
    • Smart-UPS
    • Smart-UPS

Technical Information

  • Receptacles:
    • 8 x NEMA 5-15R
    • 8 x NEMA 5-15R
  • Plug/Connector Type:
    • NEMA 5-15P
    • NEMA 5-15P
  • Cord Length:
    • 6 ft
    • 6 ft
  • Emergency Power OFF:
    • Optional
    • Optional

Physical Characteristics

  • Height:
    • 8.5"
    • 8.5"
  • Width:
    • 6.7"
    • 6.7"
  • Depth:
    • 17.3"
    • 17.3"
  • Weight (Approximate):
    • 42 lb
    • 42 lb
  • Color:
    • Black
    • Black

Interfaces/Ports

  • USB:
    • Yes
    • Yes
  • Serial Port:
    • Yes
    • Yes
  • Total Number of Expansion Slots:
    • 1
    • 1

Other

  • Package Contents:
    • CD with software
    • Smart UPS signalling RS-232 cable
    • User Manual
    • USB cable
    • CD with software
    • Smart UPS signalling RS-232 cable
    • User Manual
    • USB cable
    • CD with software
    • Smart UPS signalling RS-232 cable
    • User Manual
    • USB cable
    • CD with software
    • Smart UPS signalling RS-232 cable
    • User Manual
    • USB cable
  • Certifications & Standards:
    • BSMI
    • CSA
    • FCC Part 15 Class A
    • UL 1778
    • BSMI
    • CSA
    • FCC Part 15 Class A
    • UL 1778
  • Additional Information:
    • Automatic Self Test
    • Automatic Voltage Regulation (AVR)
    • Building wiring fault indicator
    • Load Meter
    • Network-grade line conditioning
    • Replace Batt Indicator
    • Software
    • USB Connectivity
    • User Replaceable batteries
    • Wide input voltage range
    • Automatic Self Test
    • Automatic Voltage Regulation (AVR)
    • Building wiring fault indicator
    • Load Meter
    • Network-grade line conditioning
    • Replace Batt Indicator
    • Software
    • USB Connectivity
    • User Replaceable batteries
    • Wide input voltage range

Power Description

  • Load Capacity (VA):
    • 1000 VA
    • 1000 VA
  • Power Consumption:
    • 670 W
    • 670 W
  • Input Voltage:
    • 110 V AC
    • 110 V AC
  • Output Voltage:
    • 120 V AC
    • 120 V AC
  • Surge Energy Rating:
    • 459 J
    • 459 J
  • Waveform Type:
    • Sine Wave
    • Sine Wave

Battery Information

  • Maximum Battery Recharge Time:
    • 3 Hour
    • 3 Hour
  • Backup/Run Time (Half Load):
    • 20.60 Minute
    • 20.60 Minute
  • Backup/Run Time (Full Load):
    • 6.10 Minute
    • 6.10 Minute
  • Battery Characteristics:
    • Maintenance-free
    • Maintenance-free
  • Battery Chemistry:
    • Sealed Lead Acid
    • Sealed Lead Acid
  • Hot Swappable:
    • Yes
    • Yes

Warranty

  • Limited Warranty: 2 Year
  • Additional Warranty Information:
    • Product does not ship from original manufacturer
    • Product may not be eligible for original manufacturer warranty, rebates or programs
    • Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
    • Product ships from IMSourcing facility within 2-3 days or from stock
    • Product may ship in non-standard packaging
    • All returns processed directly from IMSourcing
    • Product condition subject to availability
    • Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
    • Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Management

  • Network Management:
    • SNMP Manageable
    • SNMP Manageable
  • Battery Management:
    • Intelligent Battery Management
    • Intelligent Battery Management
  • Alarm:
    • On Battery
    • Low Battery
    • On Battery
    • Low Battery

Environmental Conditions

  • Temperature:
    • 113°F (45°C)
    • 113°F (45°C)
  • Thermal Dissipation:
    • 100 BTU/h
    • 100 BTU/h
  • Sound Emission:
    • 41 dB(A)
    • 41 dB(A)

Controls/Indicators

  • Status Indicators:
    • LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
    • LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Brand APC
Model Smart-UPS Series
