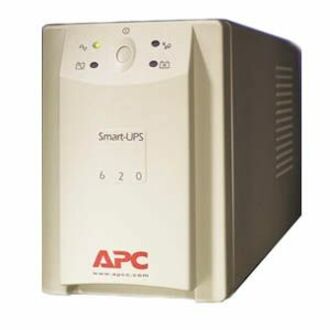

APC SU620NET UPS

Part Number: SU620NET
Model: Smart-UPS Series
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-15P
Receptacles
5 x NEMA 5-15R
Dataline Protection
RJ-11RJ-45
Emergency Power OFF
Optional

Product Description:

  APC Smart-UPS 620VA - 620VA - 5.5 Minute Full Load - 5 x NEMA 5-15R
Explore all APC Smart-UPS Series Accessories
Add to Quote
APC SU620NET UPS
APC SU620NET UPS
APC SU620NET UPS APC SU620NET UPS

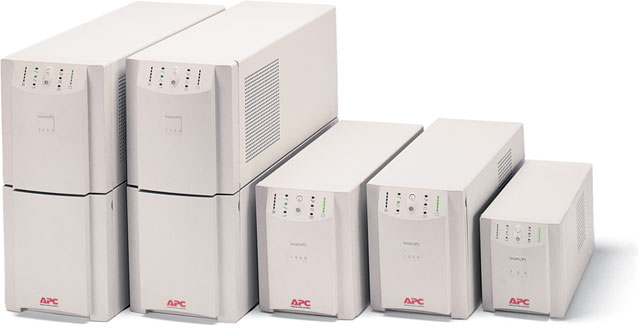

APC Smart-UPS Series Accessory Model Overview

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.
APC SU620NET UPS Overview
Performance power protection for servers and networks.

Smart-UPS 620VA protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not. APC Smart-UPS 620VA is the perfect UPS for fileservers, minicomputers, UNIX CPU's, internet hubs, telecommunications systems and other mission-critical applications.
Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacles:
5 x NEMA 5-15R
Dataline Protection:
  • RJ-11
  • RJ-45
Emergency Power OFF:
Optional
Cord Length:
6 ft
Power Description
Load Capacity:
620 VA
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Power Consumption:
390 W
Waveform Type:
Step Wave
Surge Energy Rating:
412 J
Management
Alarm:
  • On Battery
  • Low Battery
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Interfaces/Ports
Serial Port:
Yes
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
5.50 Minute
Backup/Run Time (Half Load):
15.70 Minute
Typical Battery Recharge Time:
5 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Sound Emission:
45 dB(A)
Thermal Dissipation:
20.51 W
Physical Characteristics
Color:
Beige
Height:
6.6"
Width:
4.7"
Depth:
14.5"
Weight (Approximate):
27 lb
Miscellaneous
Package Contents:
  • User Manual
  • Smart UPS signalling RS-232 cable
  • CD with software
Additional Information:
  • Automatic Voltage Regulation (AVR)
  • Building wiring fault indicator
  • Overload Indicator
  • Replace Batt Indicator
  • Software
  • User Replaceable batteries
  • Wide input voltage range
Certifications & Standards:
  • CSA
  • FCC A
  • UL 1778
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0731304012146, 0731304401247, 0740737180445
UPC: 731304012146, 731304401247, 740737180445
EAN: 0731304012146, 0731304401247, 0740737180445
UNSPSC: 39121011
