APC SRT8KRMXLT Accessory

APC - APC by Schneider Electric Smart-UPS SRT 8000VA RM 208V - 6U Rack-mountable - 1.50 Hour Recharge - 5 Minute Stand-by - 208 V AC Input - 208 V AC Output - 1 x Hard Wire 3-wire (2PH + G), 4 x NEMA L6-20R, 2 x NEMA L6-30R
  • Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Read More
$11,115.80
In Stock
Add to Quote
APC Parts Accessory Model Overview
Products and parts from APC.
APC SRT8KRMXLT Accessory Overview

A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

More from the Manufacturer

Technical Information

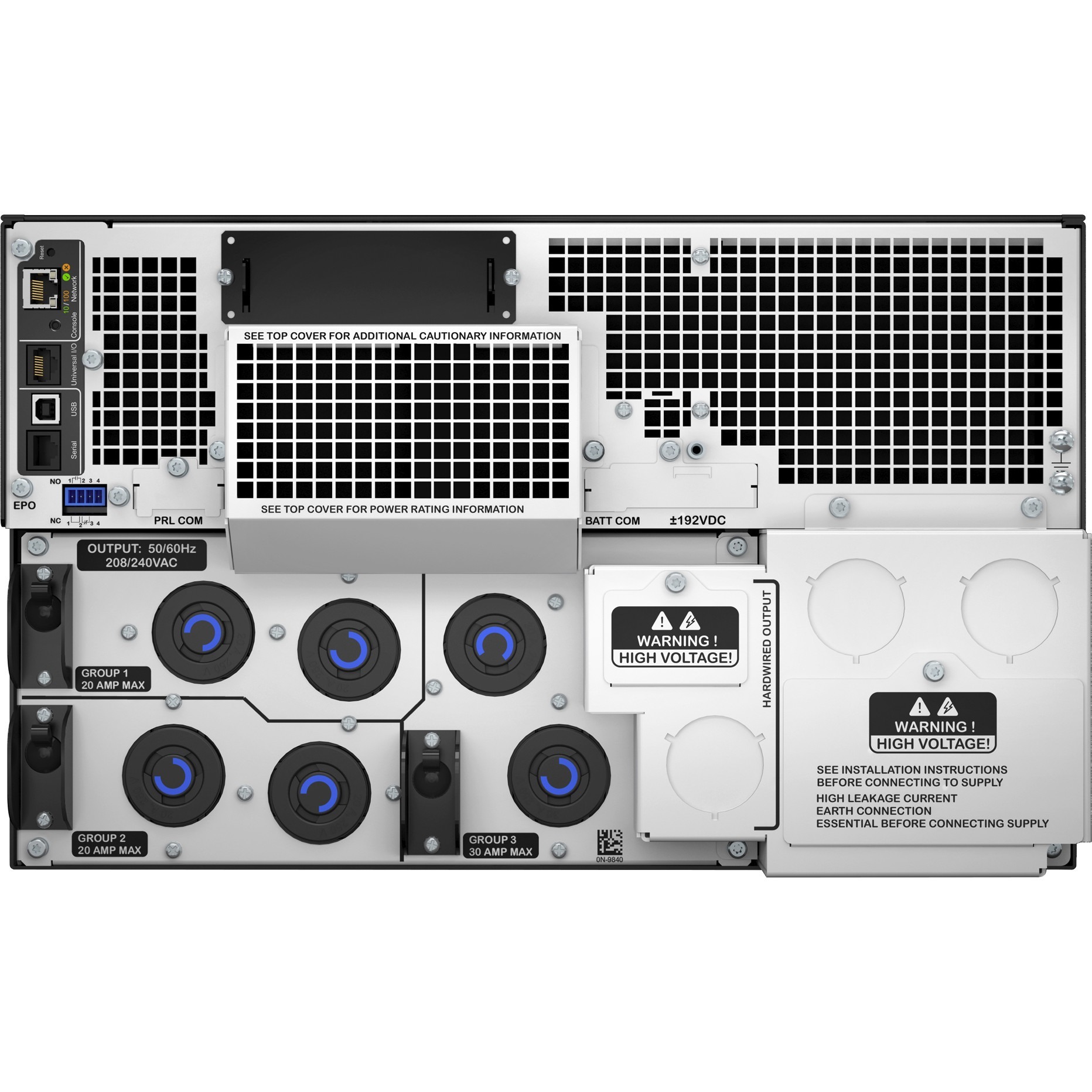

Receptacle Type:
  • NEMA L6-20R
  • NEMA L6-30R
Receptacle Detail:
  • 4 x NEMA L6-20R
  • 2 x NEMA L6-30R
Number of Battery & Surge Outlets:
6
Power Description
Load Capacity:
8000 VA/8000 W
Input Voltage:
208 V AC
Output Voltage:
208 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
480 J
Battery Information
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
5 Minute
Typical Battery Recharge Time:
1.50 Hour
Physical Characteristics
Product Color:
Black
Height:
10.4"
Width:
17"
Depth:
28.2"
Rack Height:
6U
Form Factor:
Rack-mountable
Weight (Approximate):
245.99 lb
Miscellaneous
Package Contents:
  • Smart-UPS SRT 8000VA RM 208V
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Temperature probe
  • USB cable
  • Warranty card
  • Web/SNMP management card
  • Certifications & Standards:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Energy Star:
    Yes
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3 years repair or replace (excluding battery) and 2 years for battery
    Item Numbers
    GTIN: 0045986092748, 0731304292760, 4923773132746
    UPC: 045986092748, 731304292760
    EAN: 0045986092748, 0731304292760, 4923773132746
    UNSPSC: 39121011
