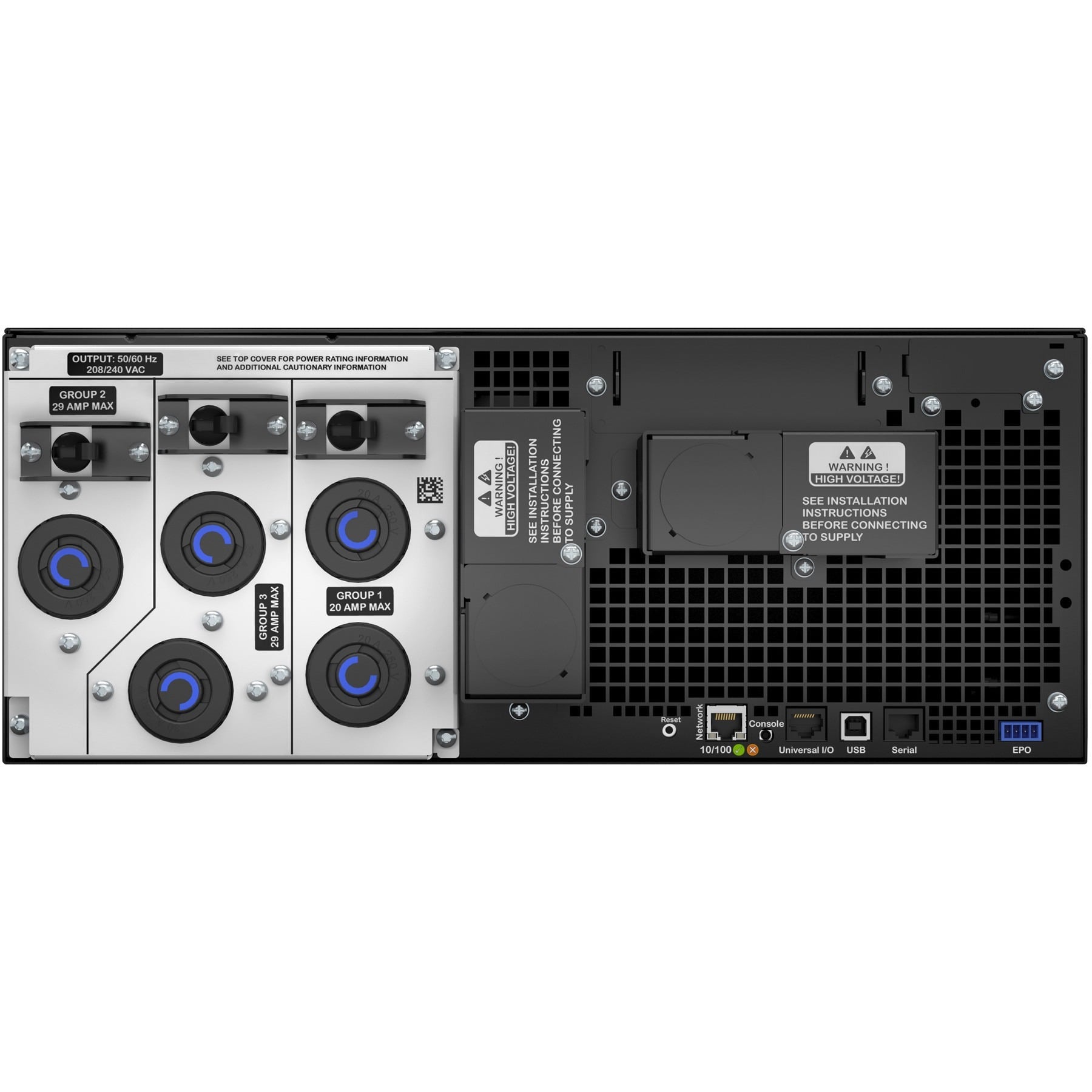

Receptacle Type:
- NEMA L6-20R
- NEMA L6-30R
Receptacle Detail:
- 2 x NEMA L6-20R
- 3 x NEMA L6-30R
Number of Battery & Surge Outlets:
5
APC Parts Accessory Model Overview
Products and parts from APC.

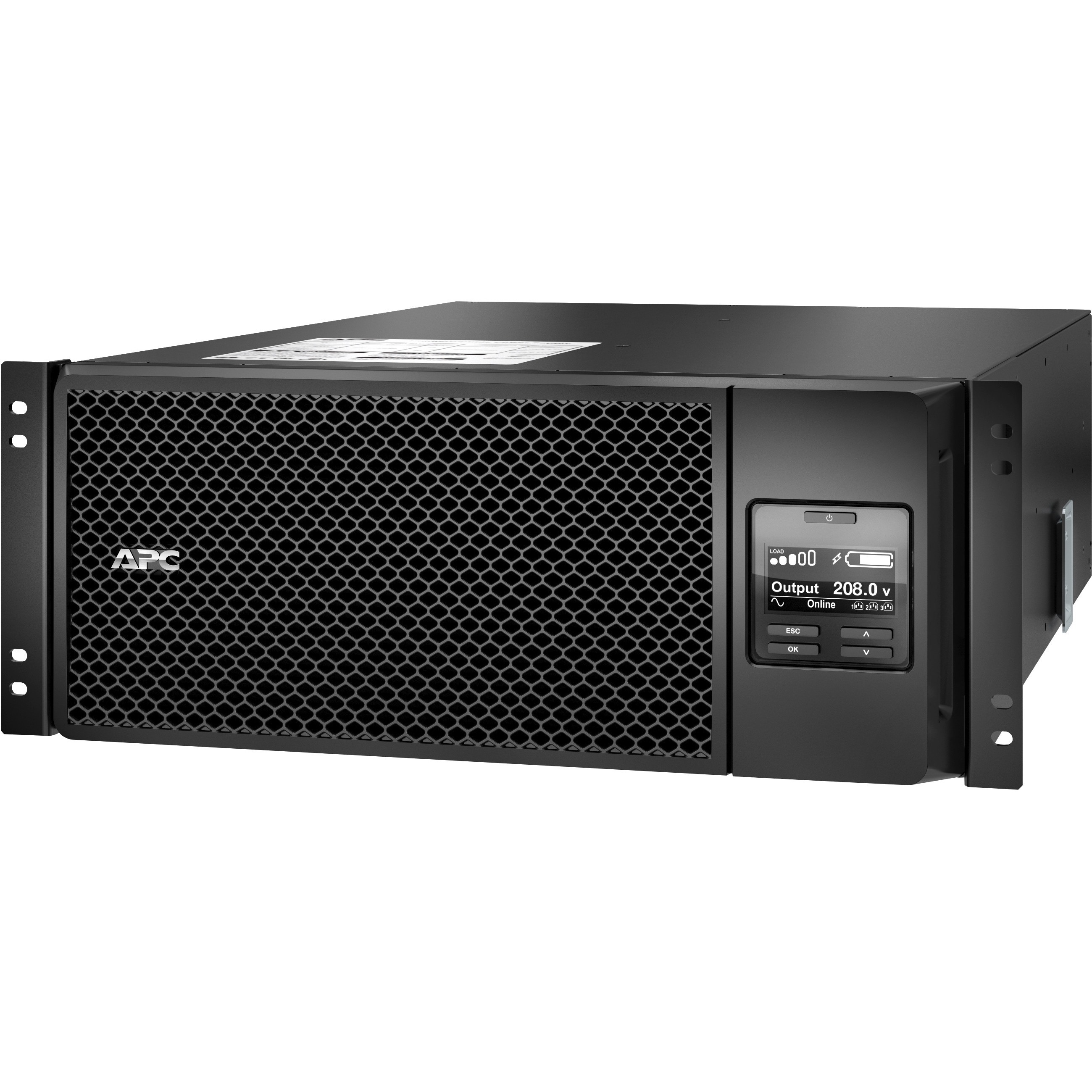

APC SRT6KRMXLT Power Device Overview
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Technical Information
Power Description
Load Capacity:
6000 VA/6000 W
Input Voltage:
208 V AC
Output Voltage:
208 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
480 J
Battery Information
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
2 Minute
Typical Battery Recharge Time:
1.50 Hour
Physical Characteristics
Product Color:
Black
Height:
6.9"
Width:
17"
Depth:
28.3"
Rack Height:
4U
Form Factor:
Rack-mountable
Weight (Approximate):
134.99 lb
Miscellaneous
Package Contents:
Smart-UPS SRT 6000VA RM 208V CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails Temperature probe USB cable Warranty card Web/SNMP management card
Certifications & Standards:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Mercury Free:
Yes
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3 years repair or replace (excluding battery) and 2 years for battery
Item Numbers
GTIN:
0045986092724, 0731304308522
UPC:
045986092724, 731304308522
EAN:
0045986092724, 0731304308522
UNSPSC:
39121011
Get help from a Barcoding Expert!
The APC SRT6KRMXLT Power Device is also known as
APC-SRT6KRMXLT
