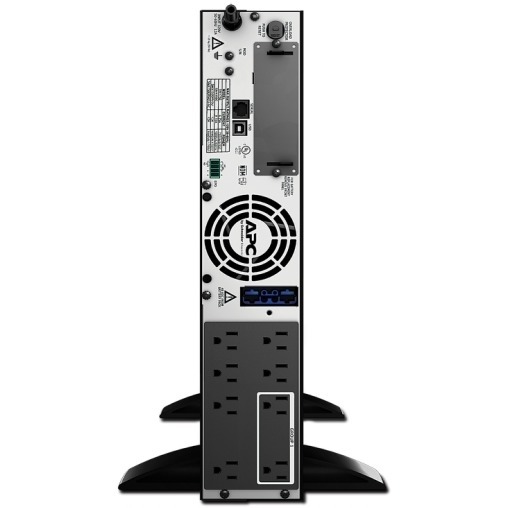

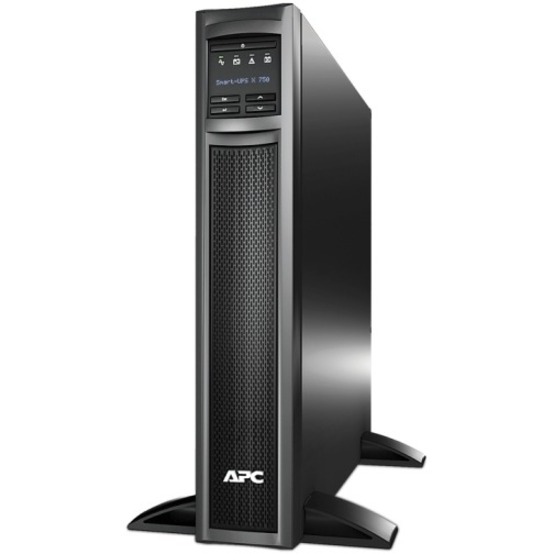

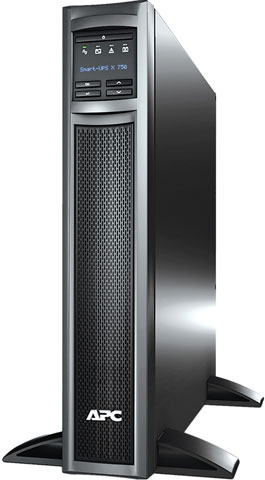

APC SMX750-NMC UPS

The APC SMX750-NMC UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
APC - APC Smart-UPS X 750VA Tower/Rack 120V with bundled network management card (NMC)- Not sold in CO, VT and WA - 2U Rack/Tower - 3 Hour Recharge - 14 Minute Stand-by - 110 V AC Input - 120 V AC Output - 8 x NEMA 5-15R
Discontinued Need Assistance?
Add to Quote
APC Parts Accessory Model Overview
Products and parts from APC.
APC SMX750-NMC UPS Overview

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacles:
8 x NEMA 5-15R
Emergency Power OFF:
Yes
Power Description
Load Capacity:
750 VA/600 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Number of Batteries:
1
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
14 Minute
Backup/Run Time (Half Load):
38 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
17"
Width:
3.5"
Depth:
19.3"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
48.61 lb
Miscellaneous
Package Contents:
  • Smart-UPS 750VA Tower/Rack Mountable UPS
  • CD With Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Brackets
  • Removable Support Feet
  • Smart UPS Signalling RS-232 Cable
  • USB Cable
  • Web/SNMP Management Card
Certifications & Standards:
  • UL 1449
  • CSA
  • UL 1778
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0721762184219, 0731304274605, 0735548709107
UPC: 721762184219, 731304274605, 735548709107
EAN: 0721762184219, 0731304274605, 0735548709107
UNSPSC: 39121011
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The APC SMX750-NMC UPS is also known as APC-SMX750NMC
