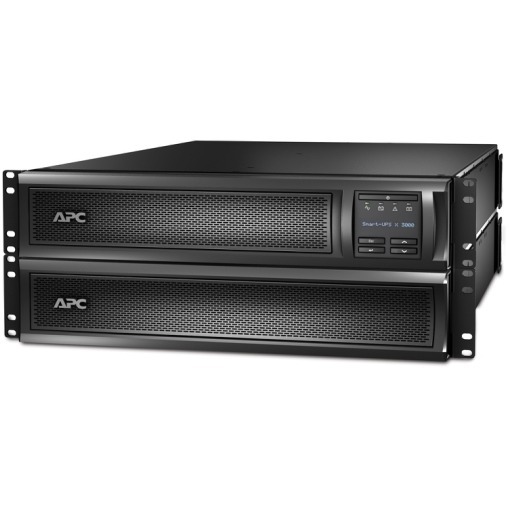

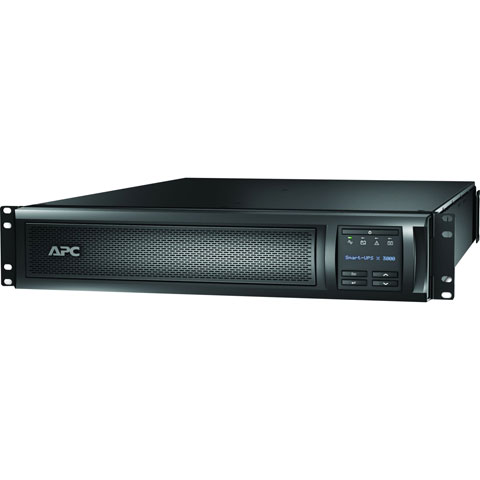

APC SMX3000RMLV2U UPS

APC Back-UPS Series - APC by Schneider Electric Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 110 V AC Input - 120 V AC Output - 1 x NEMA L5-30R, 3 x NEMA 5-15R, 3 x NEMA 5-20R
  • Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High frequency design - Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
  • High online efficiency - Reduces utility costs, generates less heat.
  • Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Multiple switched outlet groups - Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Read More
$3,007.31
In Stock
Add to Quote
APC Back-UPS Series Accessory Model Overview
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SMX3000RMLV2U UPS Overview
Technical Information

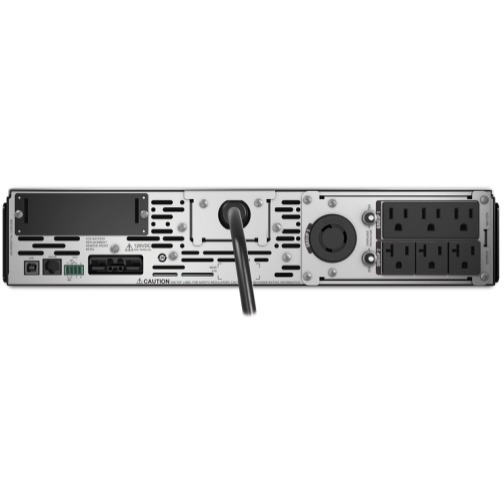

Plug/Connector Type:
NEMA L5-30P
Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-20R
  • NEMA L5-30R
Receptacle Detail:
  • 3 x NEMA 5-15R
  • 3 x NEMA 5-20R
  • 1 x NEMA L5-30R
Number of Battery & Surge Outlets:
7
Emergency Power OFF:
Yes
Cord Length:
8 ft
Transfer Time:
4 ms
Power Description
Load Capacity:
2880 VA/2700 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
540 J
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
6 Minute
Backup/Run Time (Half Load):
18 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Product Color:
Black
Height:
3.4"
Width:
17"
Depth:
26.3"
Rack Height:
2U
Form Factor:
Rack-mountable
Weight (Approximate):
84.77 lb
Miscellaneous
Package Contents:
  • Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Removable support feet
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Certifications & Standards:
    BSMI
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Country of Origin:
    Philippines
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
    Item Numbers
    GTIN: 0013227034611, 0731304268550, 0854585228928, 4973163109513
    UPC: 013227034611, 731304268550, 854585228928
    EAN: 0013227034611, 0731304268550, 0854585228928, 4973163109513
    UNSPSC: 39121011
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The APC SMX3000RMLV2U UPS is also known as APC-SMX3000RMLV2U
