APC SMX3000HVT Accessory

Part Number: SMX3000HVT
Model: Parts
Add to My Shopping List Add to Compare
$3,148.06

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L6-20P
Receptacle Type
NEMA L6-20P
Receptacle Detail
2 x IEC 320-C192 x NEMA L6-20R3 x IEC Jumper4 x IEC 320-C13
Number of Battery & Surge Outlets
11

Product Description:

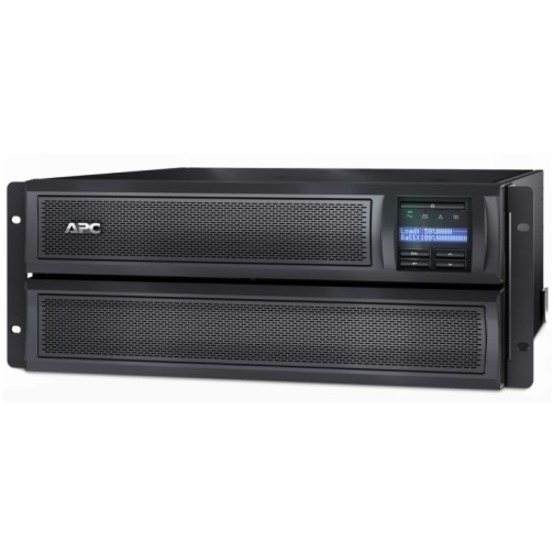

  APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V - 4U Tower, Rack-mountable - 3 Hour Recharge - 6.30 Minute Stand-by - 208 V AC Input - 4 x IEC 60320 C13, 2 x IEC 60320 C19, 2 x NEMA L6-20R
Explore all APC Parts Accessories
Add to Quote
APC SMX3000HVT Accessory
APC SMX3000HVT Accessory
APC SMX3000HVT Accessory
APC SMX3000HVT Accessory
APC SMX3000HVT Accessory APC SMX3000HVT Accessory APC SMX3000HVT Accessory APC SMX3000HVT Accessory

APC Parts Accessory Model Overview

Products and parts from APC.
APC SMX3000HVT Accessory Overview
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

More from the Manufacturer

Technical Information
Plug/Connector Type:
NEMA L6-20P
Receptacle Type:
NEMA L6-20P
Receptacle Detail:

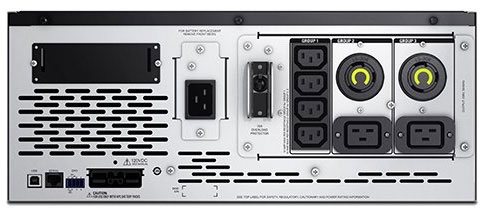

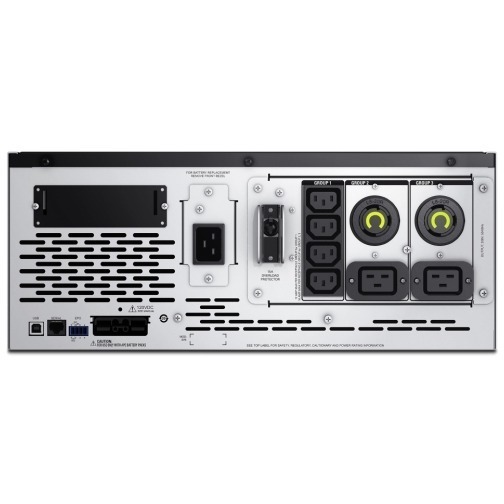

  • 2 x IEC 320-C19
  • 2 x NEMA L6-20R
  • 3 x IEC Jumper
  • 4 x IEC 320-C13
Number of Battery & Surge Outlets:
11
Protection Type:
Surge
Emergency Power OFF:
Yes
Cord Length:
6 ft
Power Description
Load Capacity (VA):
3000 VA
Load Capacity (Watt):
2700 W
Input Voltage:
208 V
Output Voltage:
208 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
645 J
Circuit Breaker:
Yes
Management
Alarm:
  • Low Battery
  • On Battery
  • Configurable Delay
Controls/Indicators
Status Indicators:
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Number of Batteries:
1
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
6.30 Minute
Backup/Run Time (Half Load):
15.70 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Sound Emission (A-Weighted):
55 dB(A)
Thermal Dissipation:
53.93 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
17"
Width:
7"
Depth:
19"
Rack Height:
4U
Form Factor:
Rack-mountable
Mounting Preference:
Lower
Mounting Location:
Front
Weight (Approximate):
85.19 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
  • Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
  • CD with software
  • Documentation CD
  • Rack mounting brackets
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User manual
    • Certifications & Standards:
    C-tick|CE|CSA|GOST|IRAM|VDE
    Software Included:
    Powerchute Serial Edition
    Optimized Energy Efficiency:
    Yes
    Product Take Back Program:
    No
    Mercury Free:
    Yes
    RoHS Exemption Information:
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HVT_ROHS_DECLARATION&p_FileName=SMX3000HVTKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166980&lang=en-us
    EU RoHS Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166980&lang=en-us
    Environmental Profile Availability:
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
    End of Life Manual Availability:
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
    California Proposition 65 Warning:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACH free of SVHC:
    No
    WEEE Statement:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Country of Origin:
    Philippines
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
    Item Numbers
    GTIN: 00731304292630
    UPC: 731304292630
    EAN: 0731304292630
    UNSPSC: 39121011
