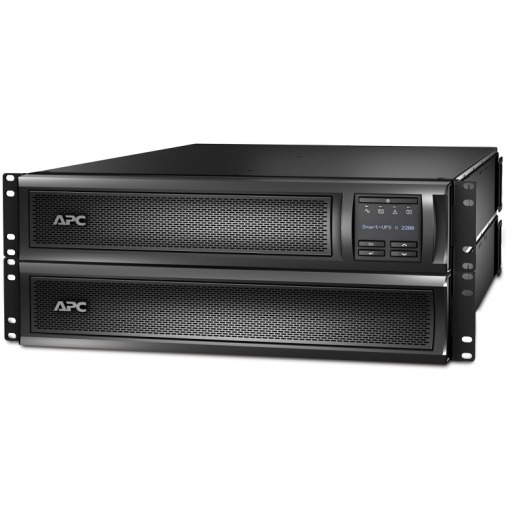

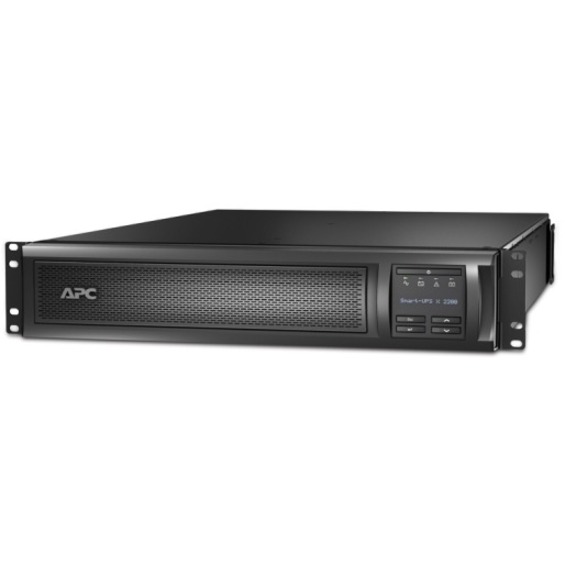

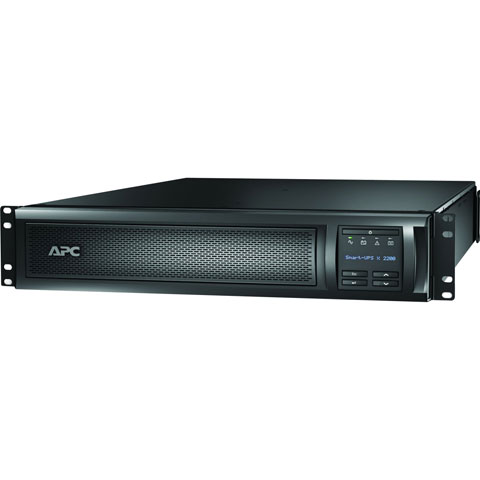

APC SMX2200RMLV2U UPS

APC - By Schneider Electric Smart-UPS x SMX2200RMLV2U 2200 VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 10 Minute Stand-by - 110 V AC Input - 120 V AC Output - 2 x NEMA 5-20R, 6 x NEMA 5-15R
  • Experience higher efficiency with lower energy cost
  • Keep your sensitive devices powered with a backup of up to 10 minute at full load
Read More
$1,828.37
In Stock:
Ships Same Day

Full specifications (PDF)

APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
Protect Your Product

Full specifications (PDF)

Technical Information
Plug/Connector Type:
NEMA L5-30P
Receptacles:
  • 2 x NEMA 5-20R
  • 6 x NEMA 5-15R
Emergency Power OFF:
Yes
Transfer Time:
4 ms
Power Description
Load Capacity:
2200 VA/1980 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
10 Minute
Backup/Run Time (Half Load):
25 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
3.4"
Width:
17"
Depth:
26.3"
Rack Height:
2U
Form Factor:
Rack-mountable
Weight (Approximate):
84.60 lb
Miscellaneous
Package Contents:
  • Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Brackets
  • Rack Mounting Hardware
  • Rack Mounting Support Rails
  • Removable Support Feet
  • Smart UPS Signaling RS-232 Cable
  • USB Cable
Certifications & Standards:
  • BSMI
  • CSA
  • EN 50091-2
  • EN 55022 Class A
  • FCC Part 15 Class A
  • NOM
  • TUV
  • UL 1778
  • VCCI Class A
  • UL 1449
Environmentally Friendly:
Yes
Environmental Certification:
  • REACH
  • RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0643749352063, 0731304268567, 0818240257432, 0854585228751, 4923763189194, 4943783153128, 4963273166902, 4963273168593, 4973163135635
UPC: 643749352063, 731304268567, 818240257432, 854585228751
EAN: 0643749352063, 0731304268567, 0818240257432, 0854585228751, 4923763189194, 4943783153128, 4963273166902, 4963273168593, 4973163135635
UNSPSC: 39121011


The APC SMX2200RMLV2U is also known as American Power Conversion APC-SMX2200RMLV2U .
