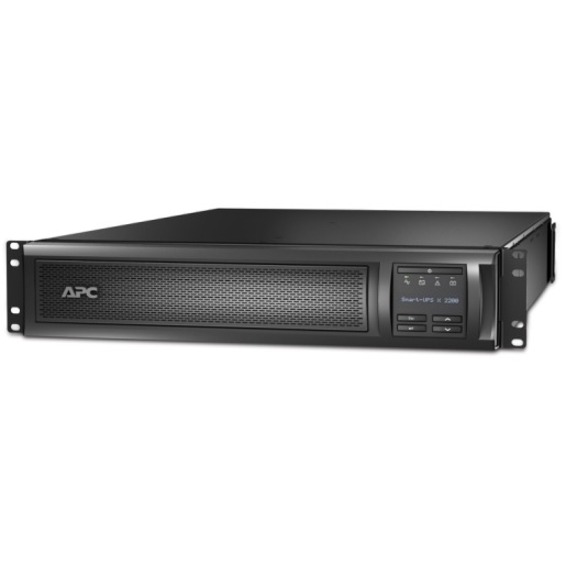

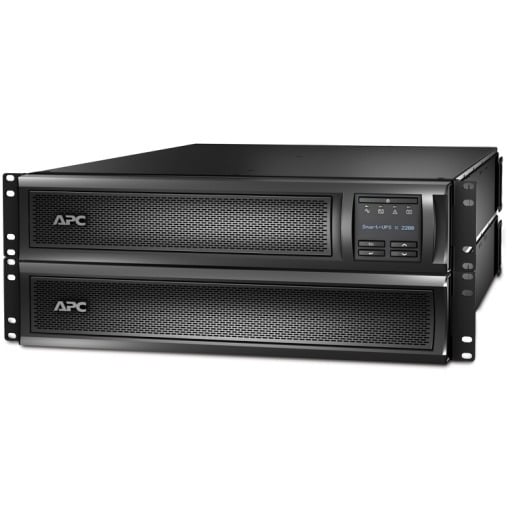

APC SMX2200RMHV2U UPS

APC Smart-UPS - APC by Schneider Electric Smart-UPS 2200 VA Tower/Rack Mountable UPS - 2U Rack/Tower - 3 Hour Recharge - 10 Minute Stand-by - 230 V AC Output

Cold-start capable - Provides temporary battery power when the utility power is out.
Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency - Reduces utility costs, generates less heat.
Multiple switched outlet groups - Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
SmartSlot - Customize UPS capabilities with management cards.
Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.

Need a different version? See all APC Smart-UPS UPSs

$3,502.22

In Stock

Add to Quote

Overview

APC Smart-UPS UPS Model Overview

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection.

Detailed Specs

Technical Information

Number of Battery & Surge Outlets:

Emergency Power OFF:

Yes

Cord Length:

6 ft

Transfer Time:

4 ms

Power Description

Load Capacity:

2200 VA/1980 W

Input Voltage:

208 V AC

Output Voltage:

208 V AC

Waveform Type:

Sine Wave

Surge Energy Rating:

645 J

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Total Number of Expansion Slots:

Battery Information

Battery Characteristics:

Maintenance-free, Sealed, Spill-proof

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

10 Minute

Backup/Run Time (Half Load):

25 Minute

Typical Battery Recharge Time:

3 Hour

Hot Swappable:

Yes

Physical Characteristics

Product Color:

Black

Height:

3.4"

Width:

17"

Depth:

26.3"

Rack Height:

Form Factor:

Rack-mountable

Weight (Approximate):

82.28 lb

Miscellaneous

Package Contents:

Smart-UPS 2200 VA Tower/Rack Mountable UPS

CD with software

Documentation CD

Rack mounting brackets

Smart UPS signalling RS-232 cable

USB cable

User manual

Certifications & Standards:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Mercury Free:

Yes

Country of Origin:

Philippines

Warranty

Limited Warranty:

3 Year

Additional Warranty Information:

3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available

Item Numbers

GTIN: 0643749352070, 0720287126261, 0731304272687, 4923773152010

UPC: 643749352070, 720287126261, 731304272687, 818263425009

EAN: 0643749352070, 0720287126261, 0731304272687, 4923773152010

UNSPSC: 39121011
