APC SMX2200HV Accessory

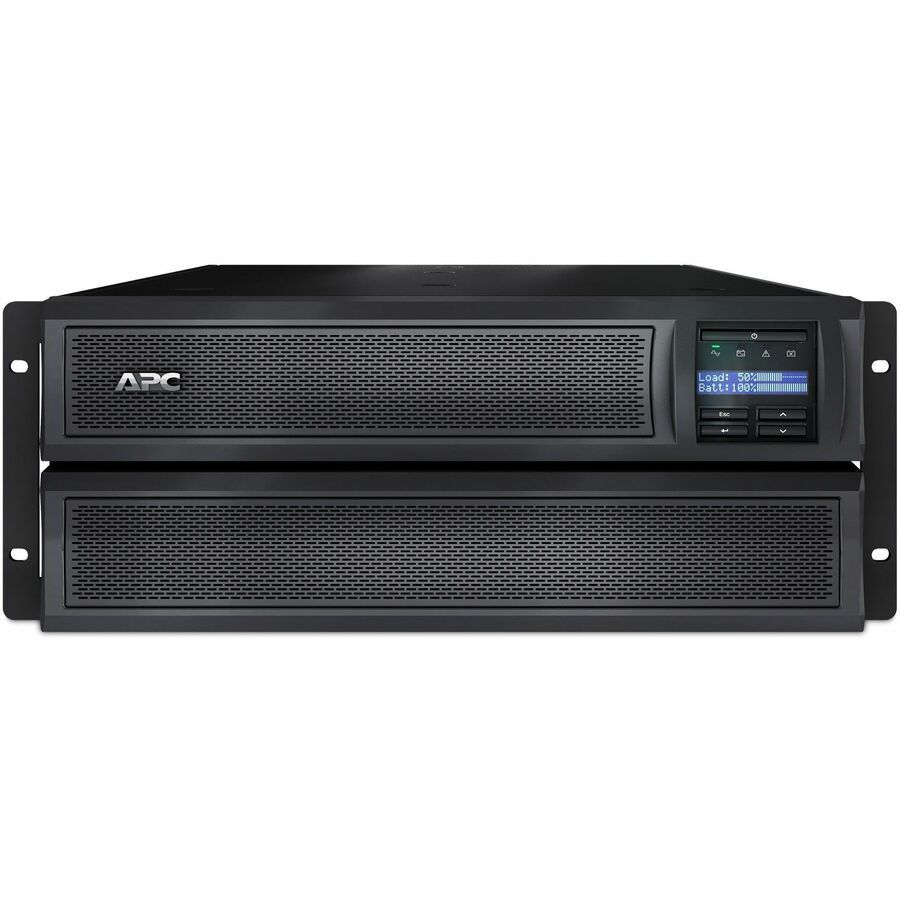

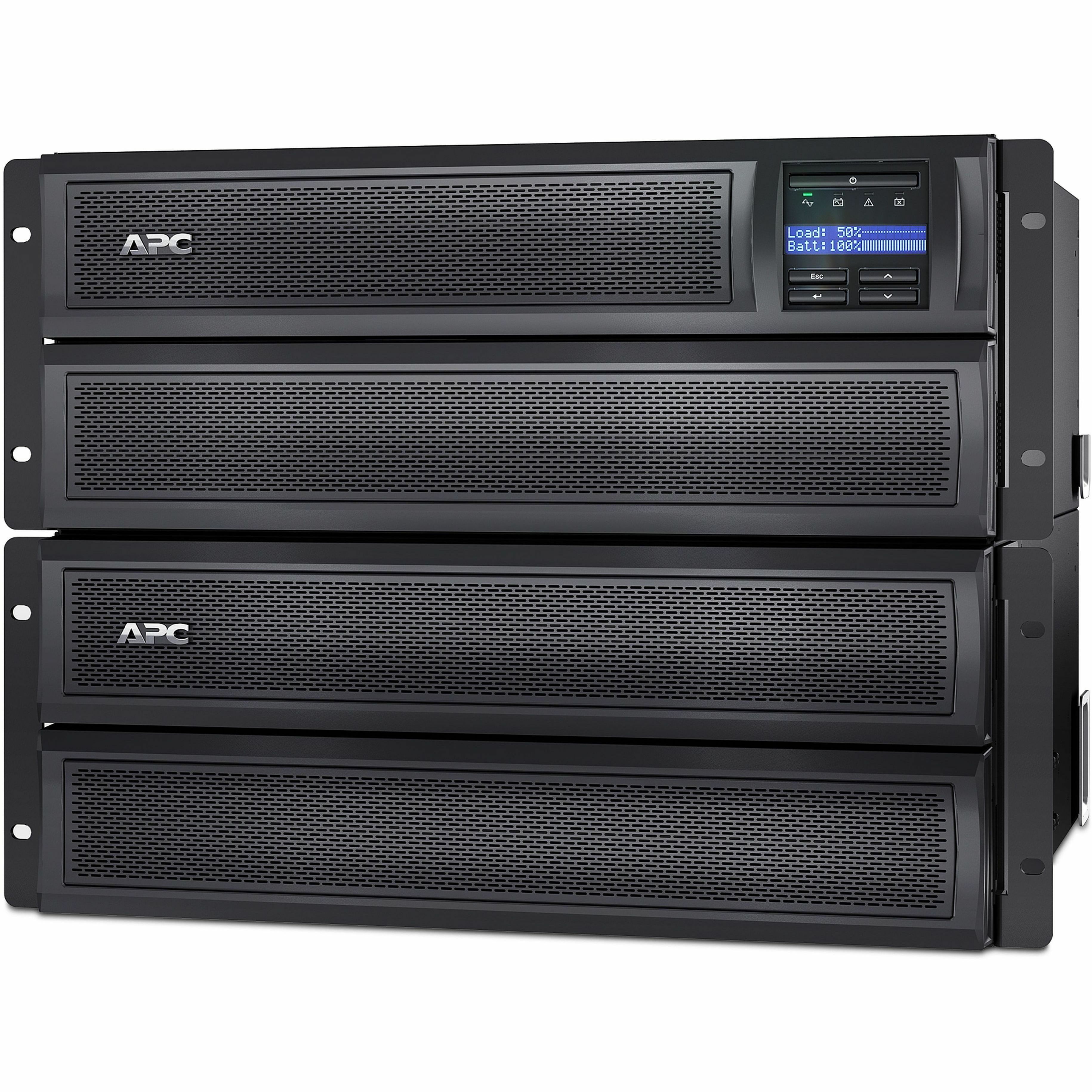

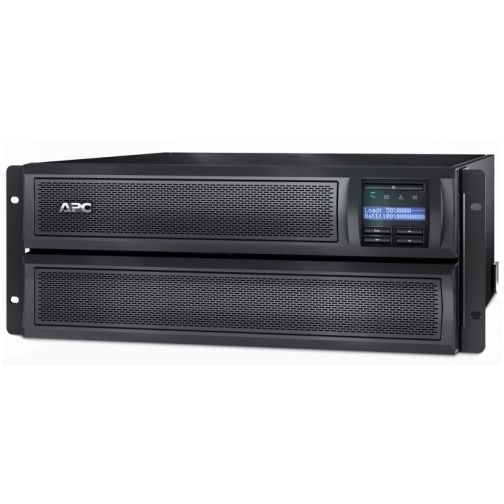

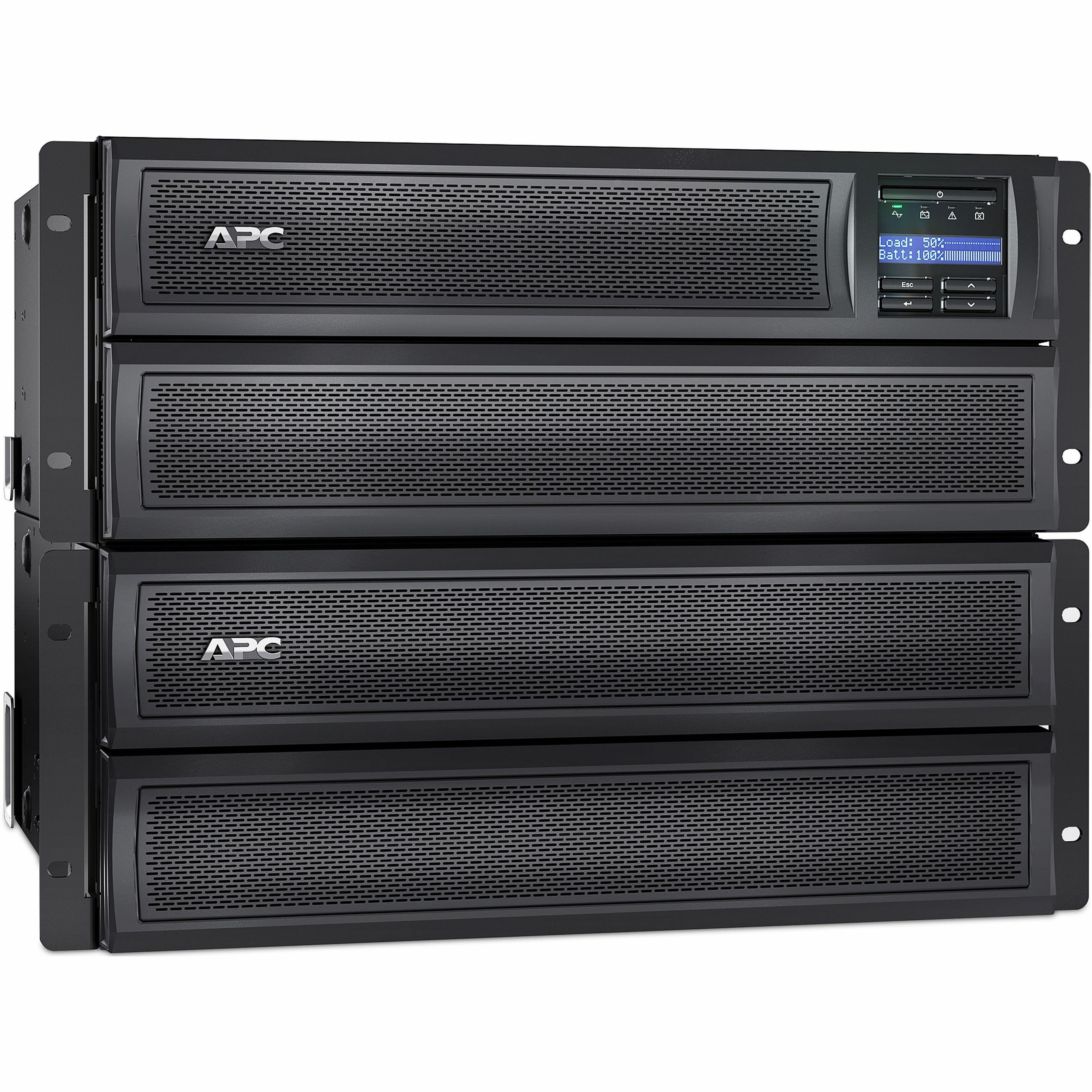

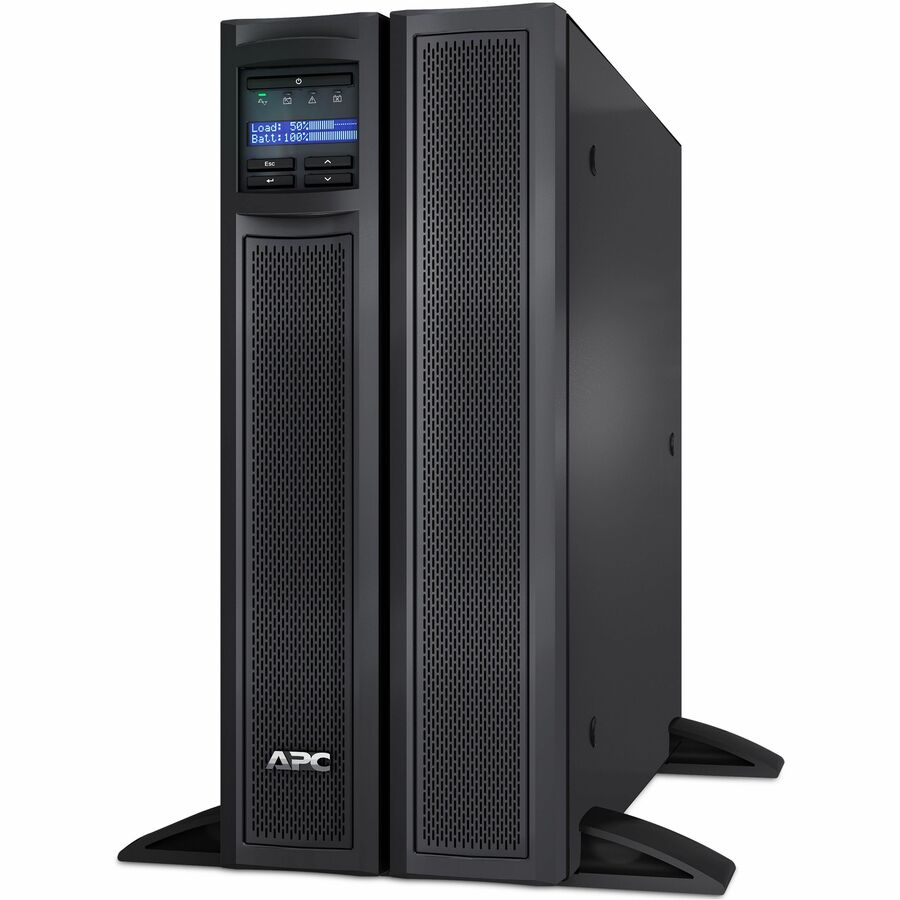

APC - APC by Schneider Electric Smart-UPS X 2200VA Rack/Tower LCD 200-240V - 4U Rack/Tower - 3 Hour Recharge - 10 Minute Stand-by
  • Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High frequency design - Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
  • High online efficiency - Reduces utility costs, generates less heat.
  • Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Multiple switched outlet groups - Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Read More
$2,982.62
Add to Quote
APC Parts Accessory Model Overview
Products and parts from APC.
APC SMX2200HV Accessory Overview

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

More from the Manufacturer

Technical Information

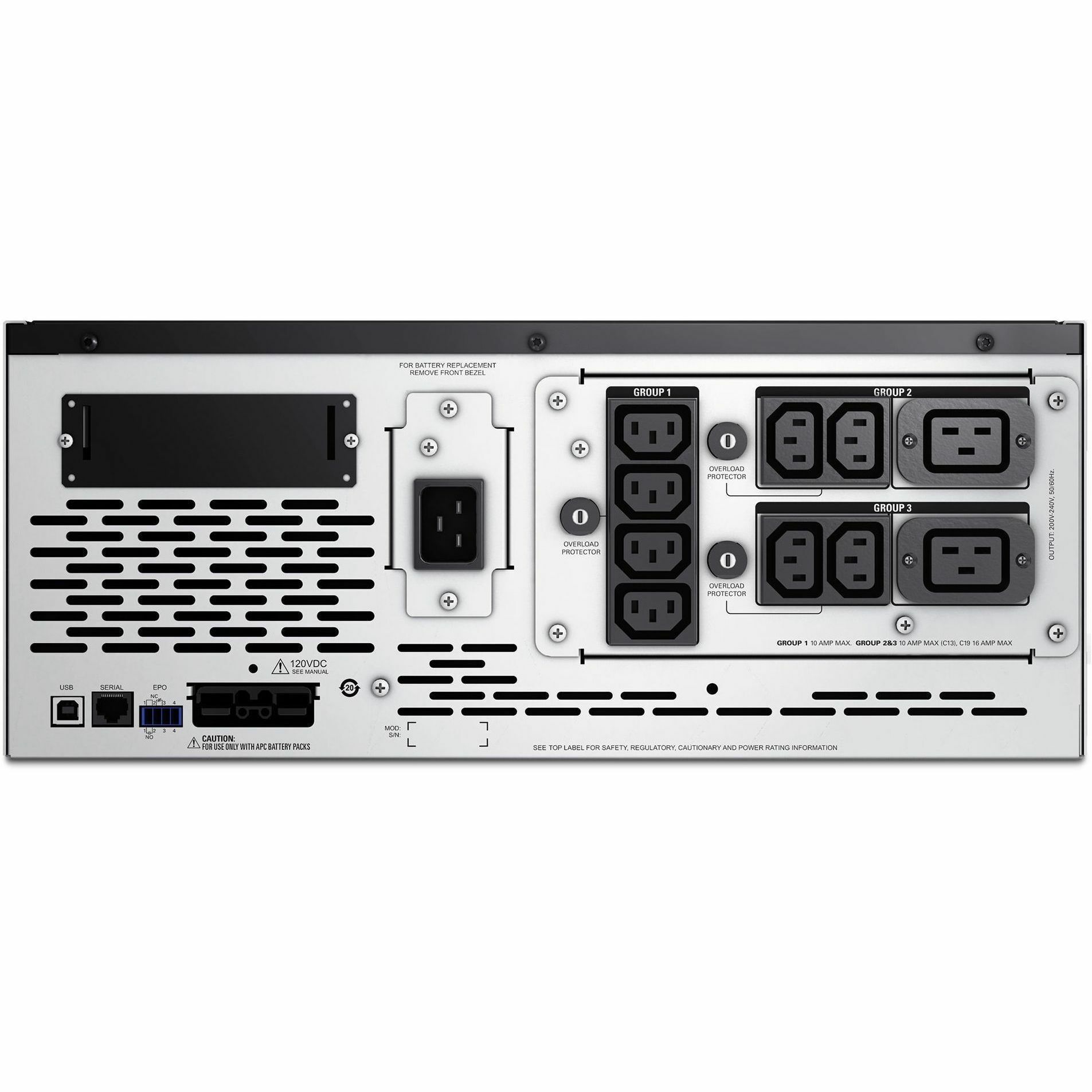

Number of Battery & Surge Outlets:
12
Emergency Power OFF:
Yes
Cord Length:
6.56 ft
Power Description
Load Capacity:
2200 VA/1980 W
Input Voltage:
208 V AC
Output Voltage:
208 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
645 J
Management
Alarm:
  • Low Battery
  • Configurable Delay
  • On Battery
Interfaces/Ports
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
10 Minute
Backup/Run Time (Half Load):
25 Minute
Typical Battery Recharge Time:
3 Hour
Environmental Conditions
Sound Emission (A-Weighted):
55 dB(A)
Thermal Dissipation:
43.96 W
Physical Characteristics
Product Color:
Black
Height:
17"
Width:
7"
Depth:
19"
Rack Height:
4U
Form Factor:
Rack-mountable
Weight (Approximate):
85.01 lb
Miscellaneous
Package Contents:
  • Smart-UPS X 2200VA Rack/Tower LCD 200-240V
  • CD with software
  • Documentation CD
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User manual
  • Certifications & Standards:
    CE
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3 years repair or replace (excluding battery) and 2 years for battery
    Item Numbers
    GTIN: 0731304292609, 0731330429260
    UPC: 731304292609, 731330429260
    EAN: 0731304292609, 0731330429260
    UNSPSC: 39121011
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The APC SMX2200HV Accessory is also known as APC-SMX2200HV
