APC SMX2000RMLV2U Accessory

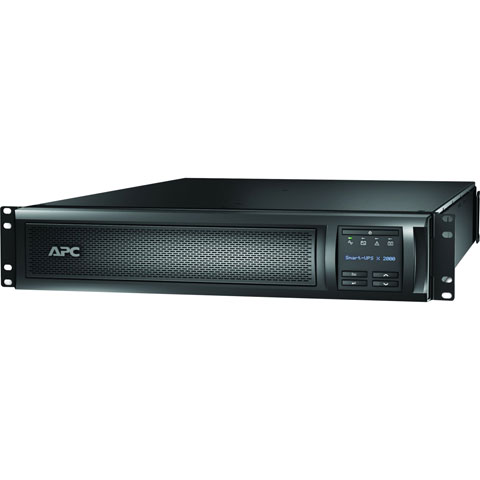

APC Back-UPS Series - APC by Schneider Electric Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 11 Minute Stand-by - 110 V AC Input - 120 V AC Output - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R
  • Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Audible alarms - Provides notification of changing utility power and UPS power conditions

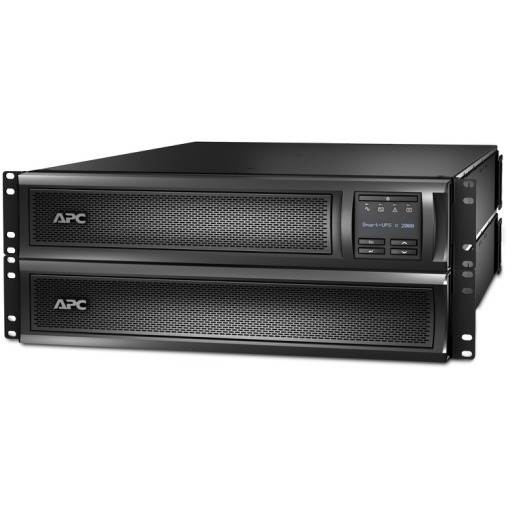

  • Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Disconnected battery notification - Warns when a battery is not available to provide backup power.
Read More
$2,535.09
In Stock
Add to Quote
APC Back-UPS Series Accessory Model Overview
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SMX2000RMLV2U Accessory Overview
Technical Information
Plug/Connector Type:
NEMA 5-20P

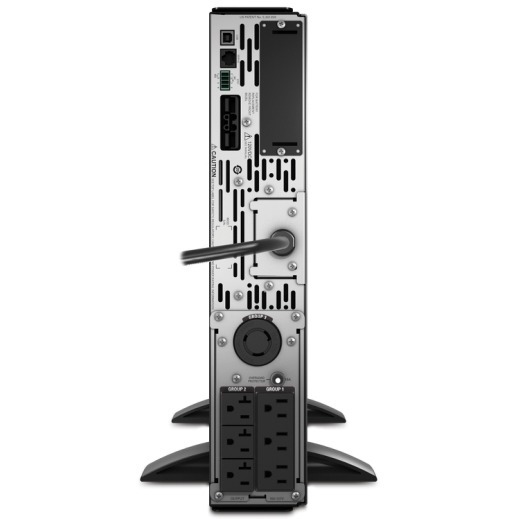

Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-20R
  • NEMA L5-20R
Receptacle Detail:
  • 3 x NEMA 5-15R
  • 3 x NEMA 5-20R
  • 1 x NEMA L5-20R
Number of Battery & Surge Outlets:
7
Emergency Power OFF:
Yes
Cord Length:
8 ft
Transfer Time:
4 ms
Power Description
Load Capacity:
1920 VA/1800 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
540 J
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
11 Minute
Backup/Run Time (Half Load):
28 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Product Color:
Black
Height:
3.4"
Width:
17"
Depth:
26.3"
Rack Height:
2U
Form Factor:
Rack-mountable
Weight (Approximate):
84.77 lb
Miscellaneous
Package Contents:
  • Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Removable support feet
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Certifications & Standards:
    BSMI
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
    Item Numbers
    GTIN: 0643749352117, 0731304268536, 0777786275228, 0818214614681
    UPC: 643749352117, 731304268536, 777786275228, 818214614681
    EAN: 0643749352117, 0731304268536, 0777786275228, 0818214614681
    UNSPSC: 39121011
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The APC SMX2000RMLV2U Accessory is also known as APC-SMX2000RMLV2U
