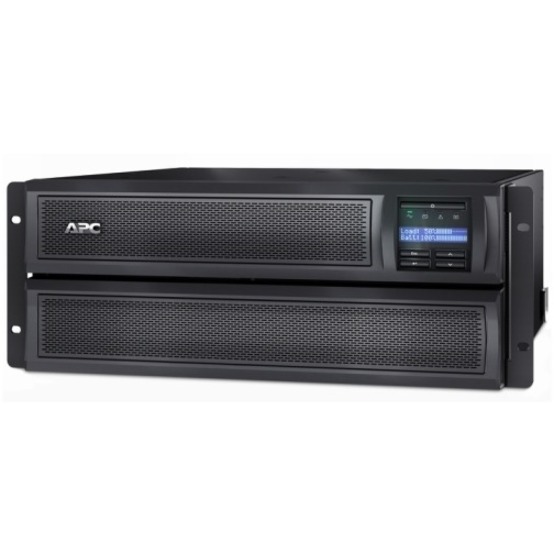

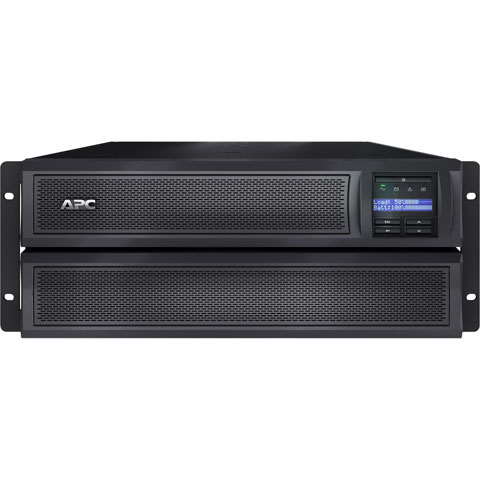

APC SMX2000LVNC UPS

APC Smart-UPS - APC by Schneider Electric Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card - 4U Rack/Tower - 3 Hour Recharge - 11 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-20R, 6 x NEMA L5-20R, 1 x NEMA 5-15R
  • Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • APC USB communications - Enables communications with SMX, SMT, SRT and SURTD Smart-UPS models using historical APC proprietary USB usages.
  • Audible alarms - Provides notification of changing utility power and UPS power conditions
  • Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Cold-start capable - Provides temporary battery power when the utility power is out.
Read More
$3,071.17
In Stock
Add to Quote
APC Smart-UPS UPS Model Overview
APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection.
APC SMX2000LVNC UPS Overview

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

More from the Manufacturer

Technical Information
Plug/Connector Type:
NEMA 5-20P
Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-20R
  • NEMA L5-20R
Receptacle Detail:
  • 6 x NEMA 5-15R
  • 3 x NEMA 5-20R
  • 1 x NEMA L5-20R
Number of Battery & Surge Outlets:
10
Emergency Power OFF:
Yes
Cord Length:
8 ft
Transfer Time:
4 ms
Power Description
Load Capacity:
1920 VA/1800 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
540 J
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Number of Batteries:
1
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
11 Minute
Backup/Run Time (Half Load):
29 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Product Color:
Black
Height:
17"
Width:
7"
Depth:
19"
Rack Height:
4U
Form Factor:
Rack-mountable
Weight (Approximate):
85.19 lb
Miscellaneous
Package Contents:
  • Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card
  • CD with software
  • Documentation CD
  • Installation guide
  • Network management card
  • Rack mounting brackets
  • Rack mounting hardware
  • ack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Certifications & Standards:
    BSMI
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3 years repair or replace (excluding battery) and 2 years for battery
