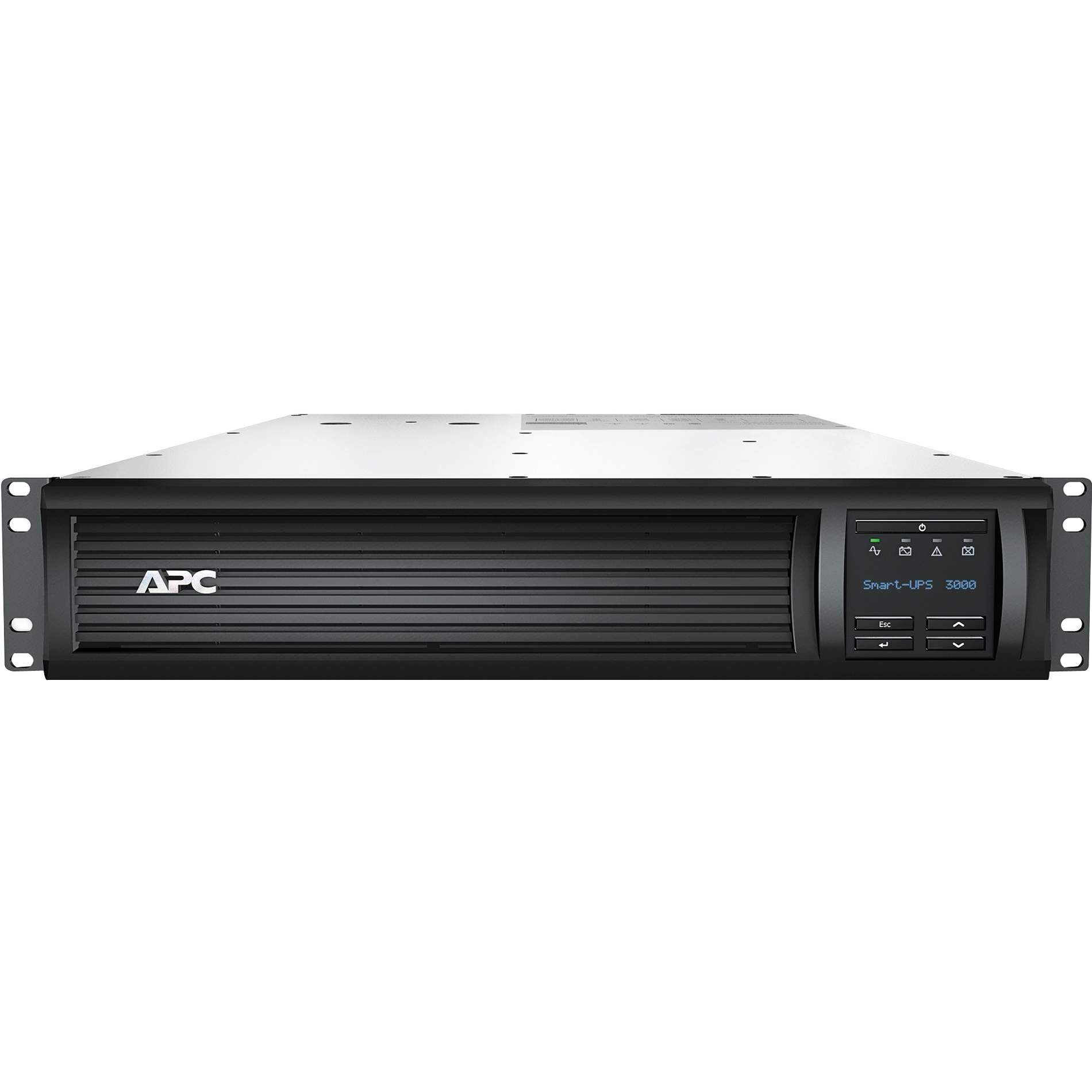

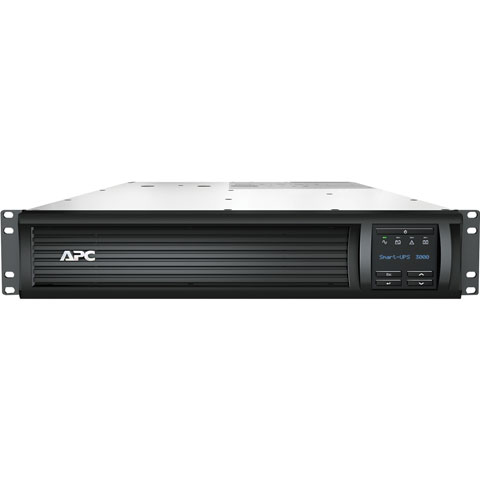

APC SMT3000R2X145 UPS

APC Back-UPS Series - APC by Schneider Electric Smart UPS 3000VA LCD RM 2U 120V with 12FT Cord - 2U - 3 Hour Recharge - 3.40 Minute Stand-by - 110 V AC Input - 120 V AC Output - 2 x NEMA 5-20R, 6 x NEMA 5-15R
  • Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Audible alarms - Provides notification of changing utility power and UPS power conditions
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Disconnected battery notification - Warns when a battery is not available to provide backup power.
  • Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Read More

Need a different version? See all APC Back-UPS Series Accessories

$2,602.20
Add to Quote
Add to My Shopping List Add to Compare
APC SMT3000R2X145 UPS
APC SMT3000R2X145 UPS APC SMT3000R2X145 UPS APC SMT3000R2X145 UPS
APC SMT3000R2X145 UPS
APC SMT3000R2X145 UPS
APC SMT3000R2X145 UPS
Full specifications (PDF)
APC Back-UPS Series Accessory Model Overview
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SMT3000R2X145 UPS Overview

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Full specifications (PDF)
Technical Information
Plug/Connector Type:
NEMA L5-30P
Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-20R
Receptacle Detail:
  • 6 x NEMA 5-15R
  • 2 x NEMA 5-20R
Number of Battery & Surge Outlets:
8
Bypass Switch:
Automatic
Cord Length:
12 ft
Power Description
Load Capacity:
2880 VA/2700 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
459 J
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free, Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
3.40 Minute
Backup/Run Time (Half Load):
11.70 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Product Color:
Black
Height:
3.4"
Width:
18.9"
Depth:
26.9"
Rack Height:
2U
Form Factor:
Rack-mountable
Weight (Approximate):
97.62 lb
Miscellaneous
Package Contents:
  • Smart UPS 3000VA LCD RM 2U 120V with 12FT Cord
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting hardware
  • Rack mounting support rails
  • Smart UPS signalling RS-232 able
  • USB cable
    • Certifications & Standards:
    CSA
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3 years repair or replace (excluding battery) and 2 years for battery
    Item Numbers
    GTIN: 0731304294092, 4913393134763, 4923773137468, 4963273166858, 4973163107618
    UPC: 731304294092
    EAN: 0731304294092, 4913393134763, 4923773137468, 4963273166858, 4973163107618
    UNSPSC: 39121011
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The APC SMT3000R2X145 UPS is also known as APC-SMT3000R2X145
