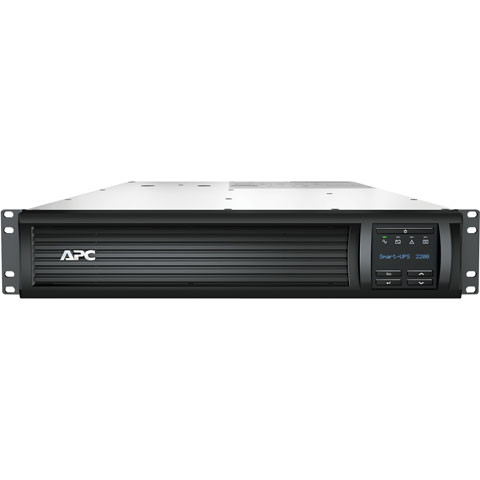

APC SMT2200R2X106 UPS

APC Smart-UPS - APC by Schneider Electric Smart-UPS 2200VA LCD RM 2U 120V with L5-20P - 2U - 3 Hour Recharge - 5.10 Minute Stand-by - 110 V AC Input - 120 V AC Output - 2 x NEMA 5-20R, 6 x NEMA 5-15R
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency - Reduces utility costs, generates less heat.
  • Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Sequenced network shutdown and reboot - Customize network shutdown and reboot sequence of connected servers and UPSs.
  • Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartSlot - Customize UPS capabilities with management cards.
Read More
$1,927.31
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

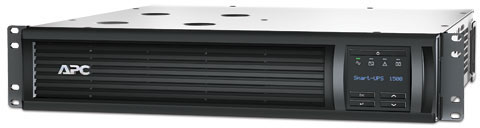

APC Smart-UPS UPS Model Overview
APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection.
APC SMT2200R2X106 UPS Overview

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Technical Information
Plug/Connector Type:
NEMA L5-20P
Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-20R
Receptacle Detail:
  • 6 x NEMA 5-15R
  • 2 x NEMA 5-20R
Number of Battery & Surge Outlets:
8
Emergency Power OFF:
Yes
Cord Length:
8 ft
Power Description
Load Capacity:
1920 VA/1980 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
530 J
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free, Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
5.10 Minute
Backup/Run Time (Half Load):
15.20 Minute
Typical Battery Recharge Time:
3 Hour
Physical Characteristics
Product Color:
Black
Height:
3.4"
Width:
18.9"
Depth:
26.9"
Rack Height:
2U
Form Factor:
Rack-mountable
Weight (Approximate):
93.28 lb
Miscellaneous
Package Contents:
  • Smart-UPS 2200VA LCD RM 2U 120V with L5-20P
  • CD with software
  • Documentation CD
  • Rack mounting brackets
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Certifications & Standards:
    CSA
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Country of Origin:
    United States
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3 years repair or replace (excluding battery) and 2 years for battery
    Item Numbers
    GTIN: 0731304294085, 0788126784621, 4923773125403, 4923773169568
    UPC: 731304294085, 788126784621, 818272502395
    EAN: 0731304294085, 0788126784621, 4923773125403, 4923773169568
    UNSPSC: 39121011
